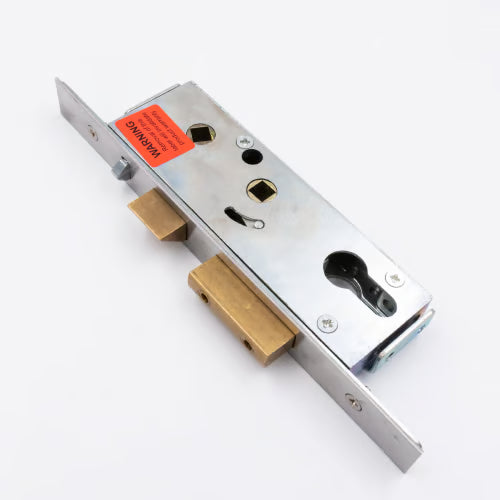

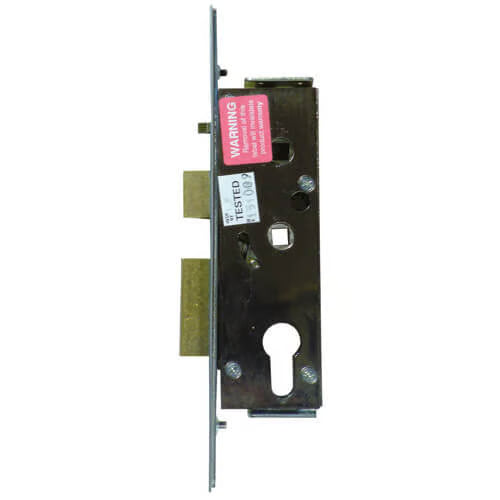

Gibbons Monalock Copy Gearbox With Snib For Aluminium Doors - Lift Lever or Double Spindle

Product Information

The ABT Gibbons copy gearbox is specifically designed for aluminium doors and features a convenient snib. It comes with a 22mm faceplate, while top and bottom extensions have been discontinued. The brackets for the extension pieces are threaded, ensuring a secure fit.

For those needing a version for UPVC doors, a model without a snib is also available.

Handle Spindle Centres: 87mm/48mm

Compatible Handles:

• EAS48LLW - White Lever/Lever
• EAS48LLG - Gold Lever/Lever
• EAS4885LLW - White Offset Lever/Moveable Pad
• EAS4885LLG - Gold Offset Lever/Moveable Pad

Latch Reversal Instructions:

To reverse the latch, push it in, undo the screw located inside the lock case (adjacent to the latch), remove the latch, reverse it, and reinsert.

Play Instructions

To Lock the Door:

• Close the door to automatically engage the latch.
• Lift the handle to engage the additional locking points.
• Throw the deadbolt and secure the system by turning the key (note: on some brands, lifting the handle will throw the deadbolt).

To Unlock the Door:

1. Unlock the system by turning the key.
2. Push the handle downwards to disengage the locking points.
3. A further quarter turn of the key will retract the latch.

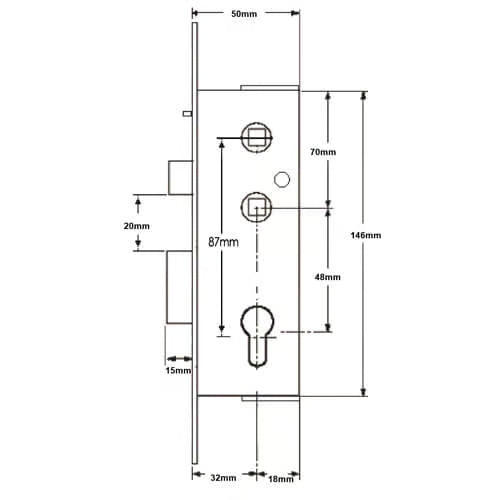

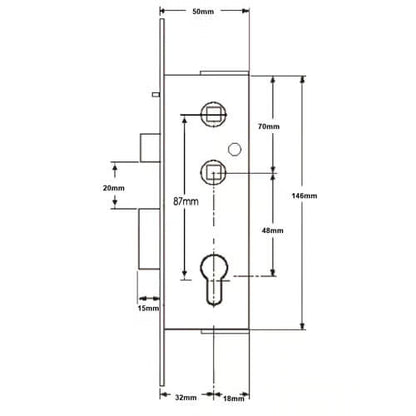

Product Specification

• Manufacturer: ABT Copy
• Backset: 32mm - How do I measure the backset?
• Centres PZ: 87mm/48mm - How do I measure the centres?
• Case Height: 146mm
• Case Width: 50mm
• Copy/Genuine: Copy
• Cylinder Type: Euro
• Handing: Not Handed
• Main Gearbox: Latch & Deadbolt
• Spindle: Double 8mm
• Operation: Lift Lever or Double Spindle - What is the operation?
• Packaging: Supplied in singles
