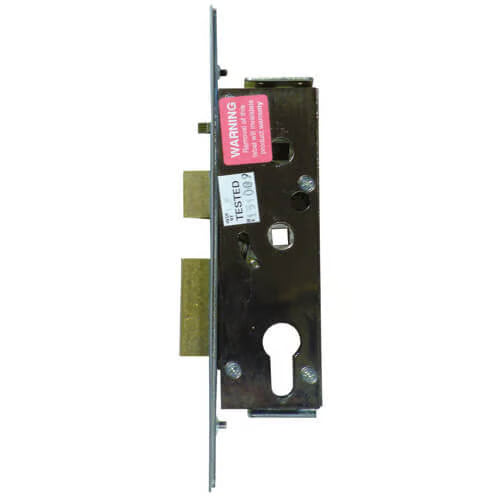

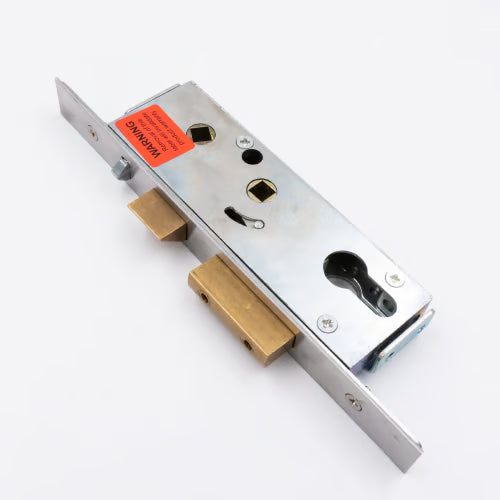

Gibbons Monalock Copy Gearbox With Snib For Aluminium Doors - Lift Lever or Double Spindle

The ABT Gibbons copy gearbox is specifically designed for aluminium doors and features a convenient snib mechanism. It comes with a 22mm faceplate, although please note that top and bottom extensions have been discontinued.

The brackets for the extension pieces are threaded, ensuring a secure fit.

For those needing a version for UPVC doors, a model without a snib is also available.

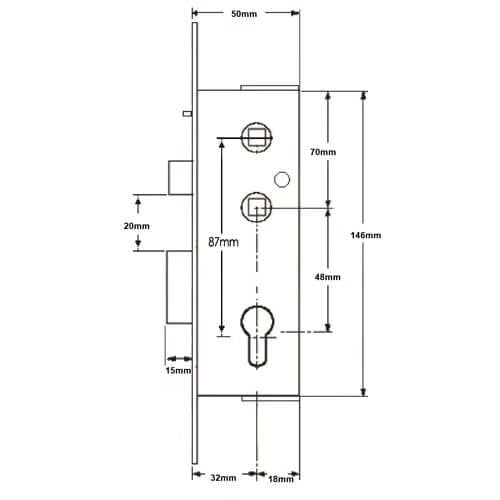

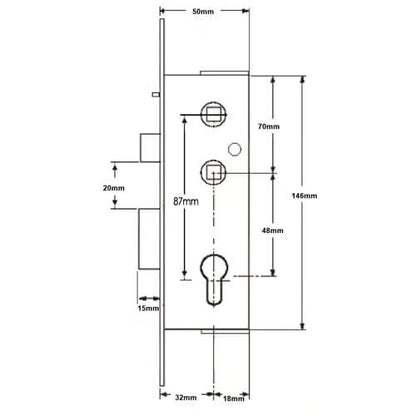

Handle Spindle Centres: 87mm/48mm

Compatible Handles:

• EAS48LLW - White Lever/Lever
• EAS48LLG - Gold Lever/Lever
• EAS4885LLW - White Offset Lever/Moveable Pad
• EAS4885LLG - Gold Offset Lever/Moveable Pad

Latch Reversal Instructions: To reverse the latch, push it in, undo the screw located inside the lock case (next to the latch), remove the latch, reverse it, and then reinsert.

Product Specification

• Manufacturer: ABT Copy
• Backset: 32mm
  How to measure the backset? Measure from the edge of the door to the center of the keyhole.
• Centres PZ: 87mm/48mm
  How to measure the centres? Measure from the center of the keyhole to the center of the handle spindle.
• Case Height: 146mm
• Case Width: 50mm
• Copy/Genuine: Copy
• Cylinder Type: Euro
• Handing: Not Handed
• Main Gearbox: Latch & Deadbolt
• Spindle: Double 8mm
• Operation: Lift Lever or Double Spindle
  What is the operation? This refers to how the lock is engaged or disengaged, either by lifting the lever or using a double spindle mechanism.
• Packaging: Supplied in singles
