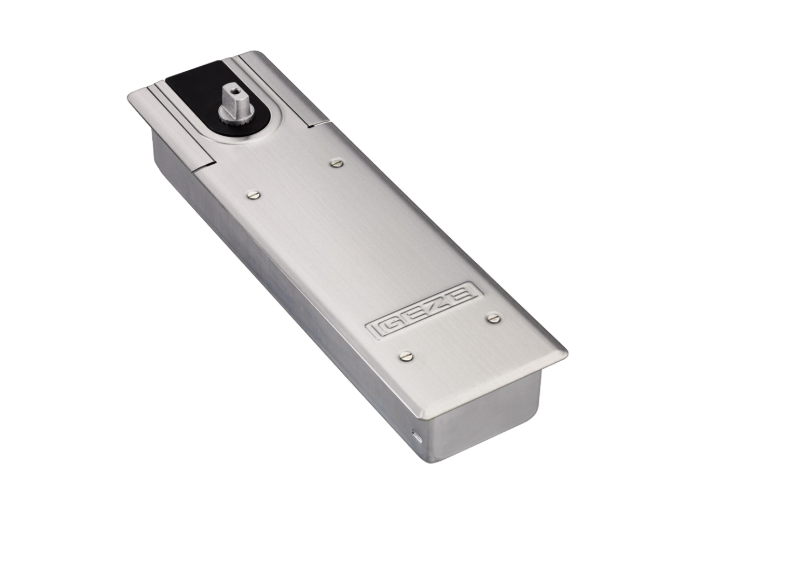

GEZE TS550 NV Size 3-6 Floor Spring

The Geze TS550 NV floor spring is an exceptional choice for those seeking a robust solution for heavy and frequently used doors. Designed to accommodate doors with a maximum leaf width of 1400mm and a weight of up to 300kg, it ensures reliable performance in high-traffic areas.

With an adjustable closing force ranging from sizes 3 to 6, users can customize the door's operation to suit their specific needs. The fully adjustable end stop and closing speed allow for precise control, and all adjustments can be conveniently made from above, simplifying installation and maintenance.

One of the standout features of the TS550 NV is its stepless hold-open mechanism, which permits an impressive opening angle from 80° to 165°. This flexibility is ideal for various applications, providing ease of access while maintaining safety and functionality.

Having undergone rigorous testing of over a million opening and closing cycles, this floor spring is built to last, ensuring a long lifespan and dependable service.

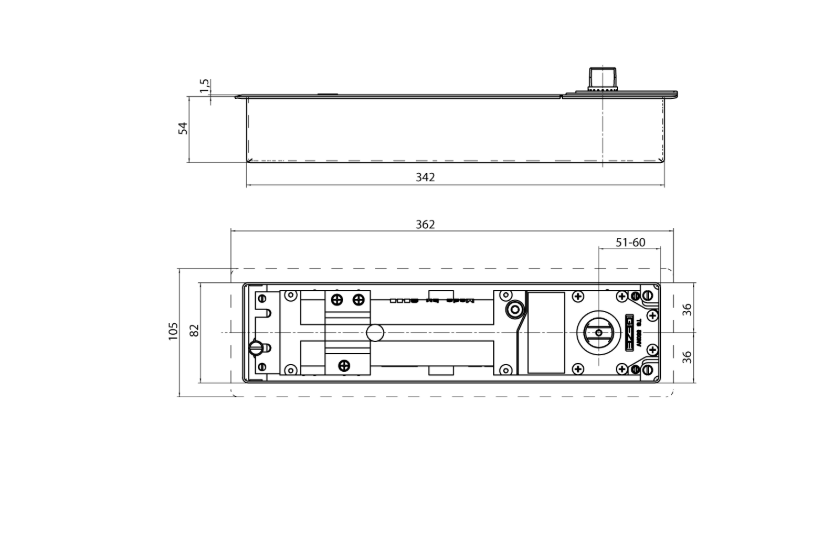

Specifications:

• Finish: Silver
• Size:
  • Length: 36.2cm
  • Height: 56mm
  • Width: 10.5cm
  • Depth: 56mm
  • Body Depth: 54mm
  • Body Length: 342mm
• Max Door Weight: 300Kg
• Max Door Width: 1400mm
• Strength Size: 3 To 6

This product is a reliable investment for anyone looking to enhance the functionality and durability of their door systems.
