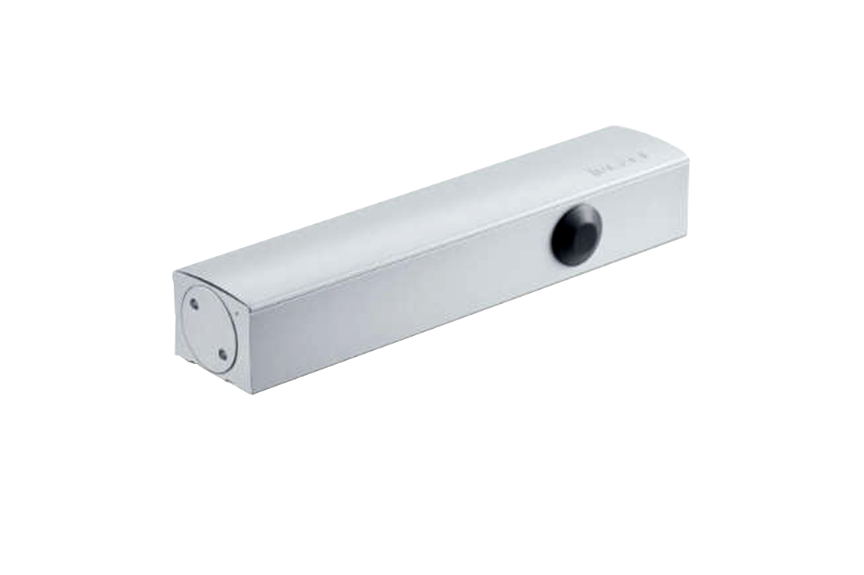

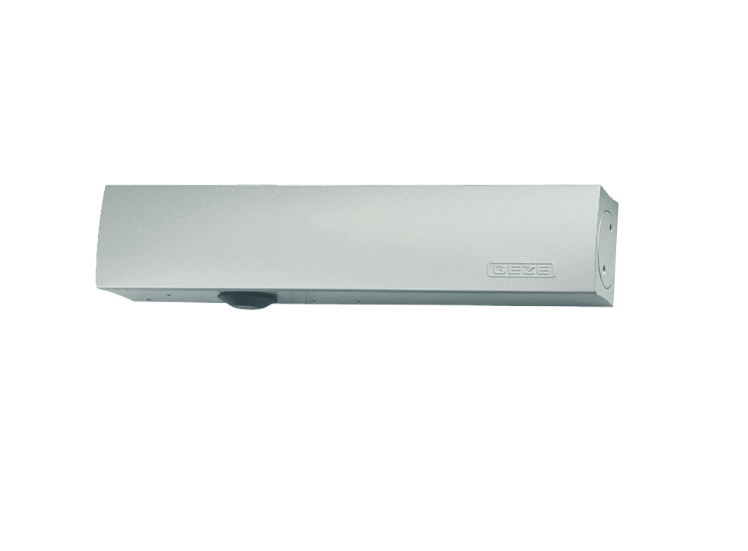

GEZE TS5000 Size 2-6 Overhead Door Closer Body

The Geze TS 5000 overhead door closer is an exceptional choice for internal doors, accommodating widths up to 1,400mm and weights up to 120kg. Its standout feature is the integrated opening buffer and optical closing force display, which simplifies the process of checking the set closing force.

This versatile door closer is suitable for both right and left-mounted doors and boasts a remarkable 120-minute fire rating. With an adjustable closing force ranging from size 2 to 6, it allows for tailored performance to meet specific needs.

Key features include:

• Front-Adjustable Functions: All settings can be conveniently adjusted from the front of the closer.
• Heavy-Duty Functionality: Equipped with a backcheck to prevent damage during operation.
• Visual Indicator: The integrated optical closing force indicator provides a clear visual reference for the set closing force.
• Speed Adjustability: Both closing and latching speeds are fully adjustable for optimal control.
• Backcheck Adjustment: Allows for further customization to suit various door types.

With its robust design and user-friendly features, the Geze TS 5000 is engineered for reliability and efficiency in any internal door application.

Specifications:

• Finish: Silver
• Width: 448.5mm
• Depth: 47mm
• Body Depth: 47mm
• Body Height: 60mm
• Max Door Width: 1400mm
• Strength Size: 2 to 6

This door closer is an ideal solution for those seeking durability and flexibility in their door hardware.
