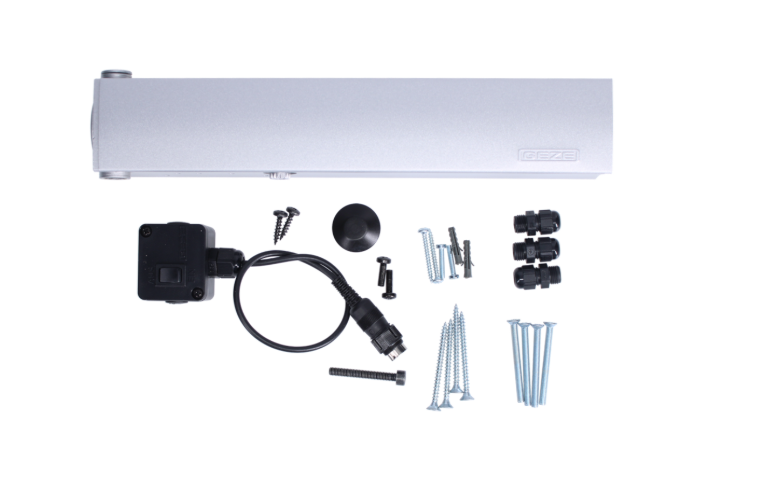

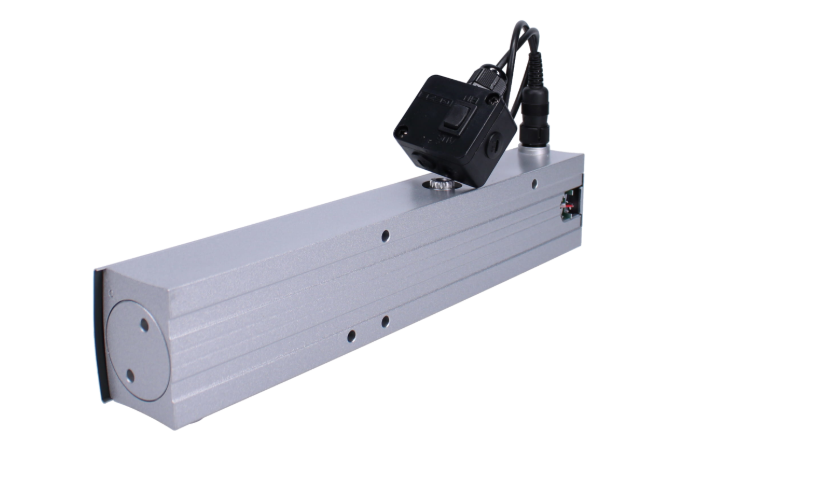

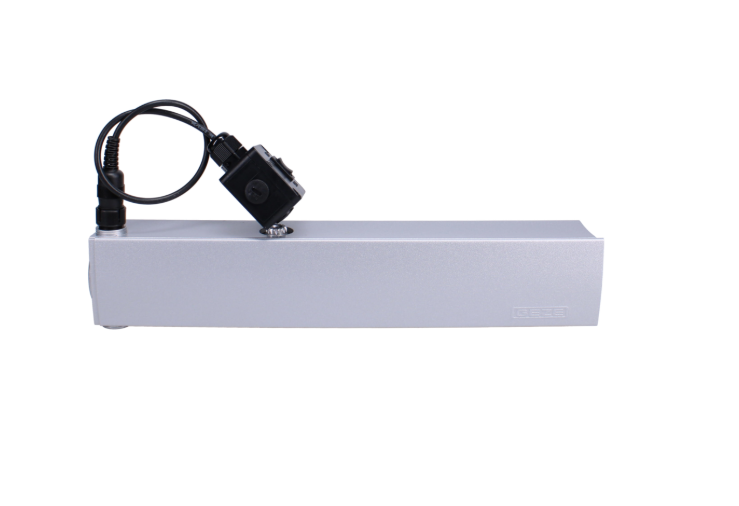

GEZE TS4000E Size 1-6 Overhead Door Closer Body with Electro-hydraulic Hold Open

The Geze TS 4000E overhead door closer is a versatile and reliable solution for both residential and commercial applications.

This model features an electric hold-open device that allows for variable adjustments between 80° and 175°, complying with EN 1155 standards. It is suitable for both left-hand and right-hand single-action doors, accommodating door leaf widths of up to 1400 mm. Notably, it is designed for installation on fire and smoke protection doors, ensuring safety in emergency situations.

In the event of a fire or power failure, the hold-open device automatically activates, allowing the door to close securely, which is crucial for maintaining safety protocols. The closing force is adjustable from size 1 to 6 in accordance with EN 1154, and a visual display indicates the closing force setting.

The thermo-constant closing speed can be conveniently adjusted from the front, while the latching action is modified using the link arm, providing ease of use and flexibility in installation.

Specifications:

• Finish: Silver
• Size:

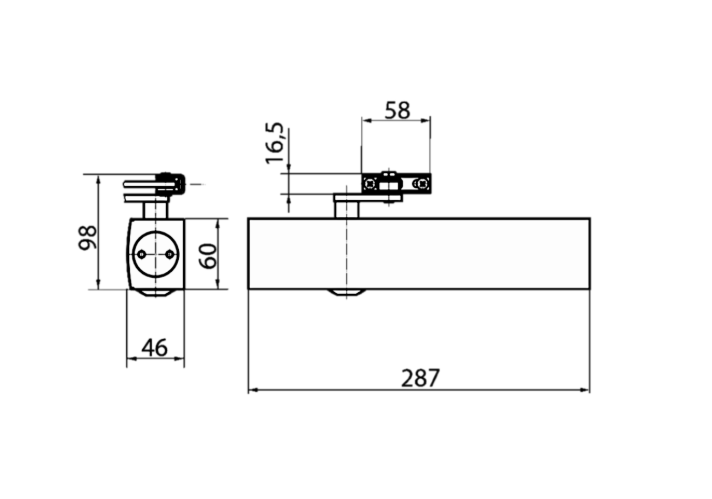

  • Depth: 46 mm
  • Body Depth: 46 mm
  • Body Height: 60 mm
  • Max Door Width: 1400 mm
  • Strength Size: 1 to 6

Features:

• Ideal for installation on fire and smoke protection doors
• Low power consumption
• Reversible design
• Adjustable end stop and closing speed
• Suitable for single leaf doors up to 1400 mm wide

This door closer combines functionality with safety, making it an excellent choice for various door applications.
