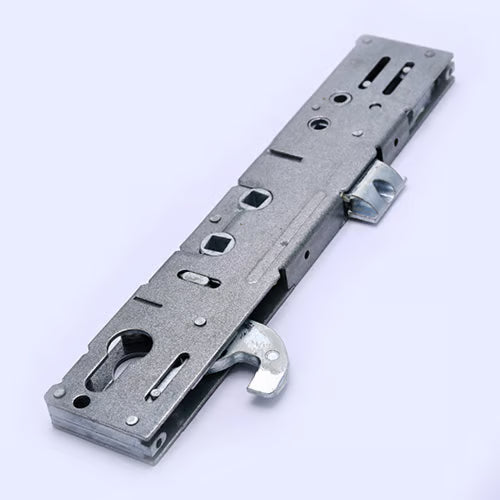

Product Overview
Introducing the genuine replacement hook bolt gearbox for Safeware multipoint door locks. Designed for durability and reliability, this gearbox is an essential component for enhancing your door security.
Key Features
-
Backset Measurement: 35mm
-
Mechanism: Latch and hook bolt (unsprung)
-
Compatibility: Visually similar to Lockmaster range, ensuring easy integration
-

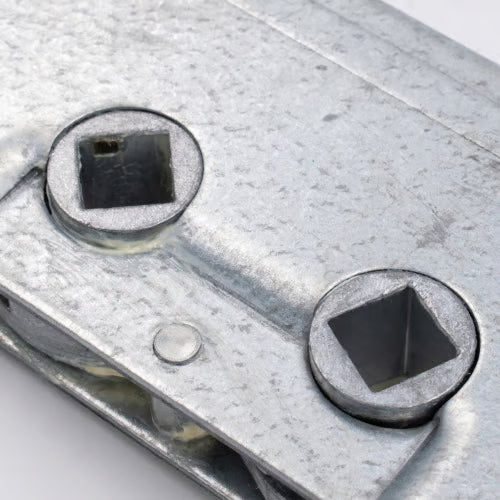

Operation Type: Double spindle operation only
-
Centre Measurements: Available in 92mm and 62mm PZ measurements
Dimensions
-

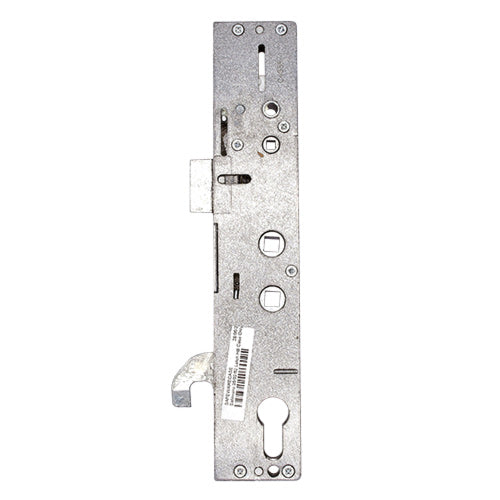

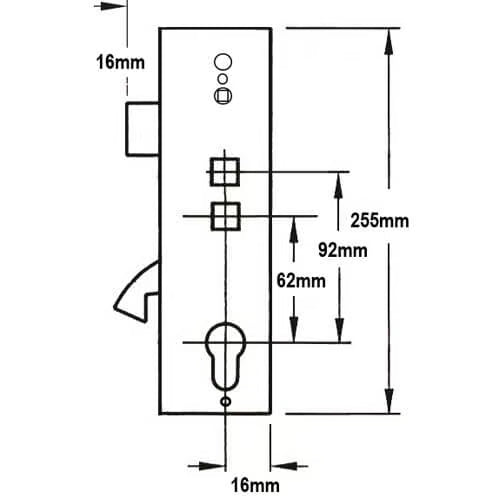

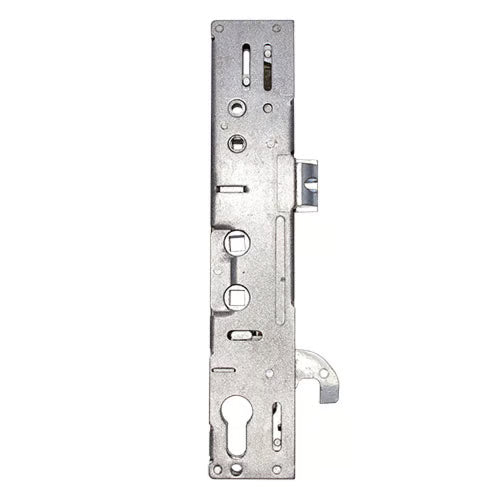

Overall Size: 255mm high x 50mm wide
-
Latch Height: 30mm
-

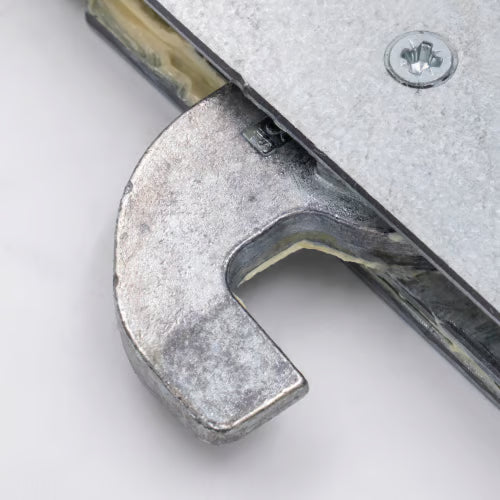

Hook Height: 30mm
-
Distance Between Latch and Hook: 80mm

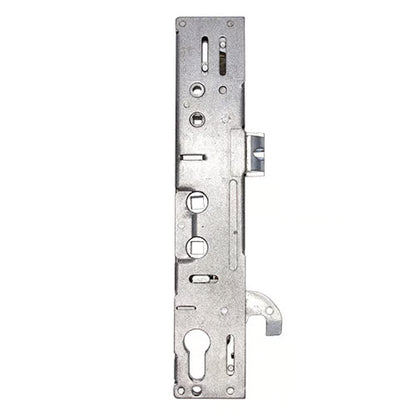

Installation Details
Due to the length of the gearboxes, they are secured to their faceplates with four screws for added stability. The screw measurements are as follows:
-
Top to Next Screw: 55mm
-
Next Screw: 80mm
-
Third to Last Screw: 108mm
Operation Mechanism
This gearbox operates via a lift lever or double spindle, providing ease of use and enhanced security for your doors.
Upgrade your door locking system with the Safeware gearbox for peace of mind and superior performance.
This gearbox is designed with precision to ensure compatibility and ease of installation.
Measuring Guidelines
To ensure a perfect fit, here’s how to measure the backset and centres:
Backset Measurement
To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the keyhole or cylinder. This distance is crucial for ensuring that the lock aligns properly with the door frame.
Centre PZ Measurement
For the PZ measurement, measure from the center of the keyhole to the center of the handle spindle. This will help you determine the correct positioning for the gearbox to function seamlessly.
Operation Details
The Safeware gearbox operates smoothly with either a lift lever or a double spindle nightlatch mechanism. This versatility allows for enhanced security and ease of use, making it an ideal choice for various door types.
Packaging Information
Each gearbox is supplied individually, ensuring that you receive a quality product ready for installation.
Upgrade your door security with the Safeware gearbox, designed for reliability and performance.
