Genuine Multipoint Gearbox - Lift lever or Double Spindle

Product Information

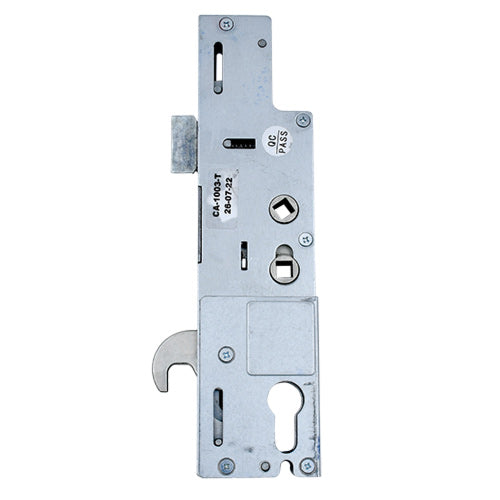

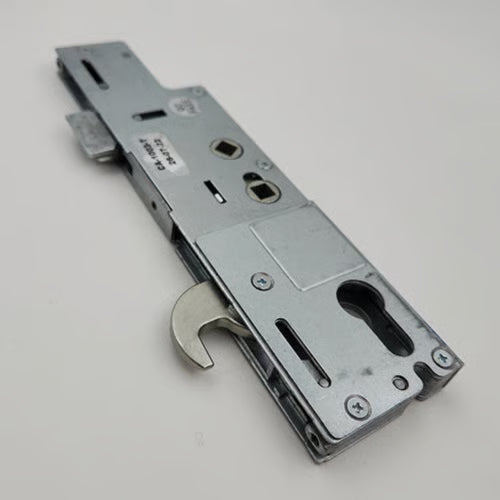

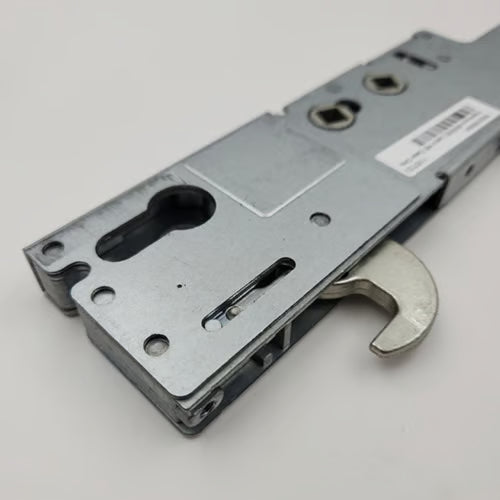

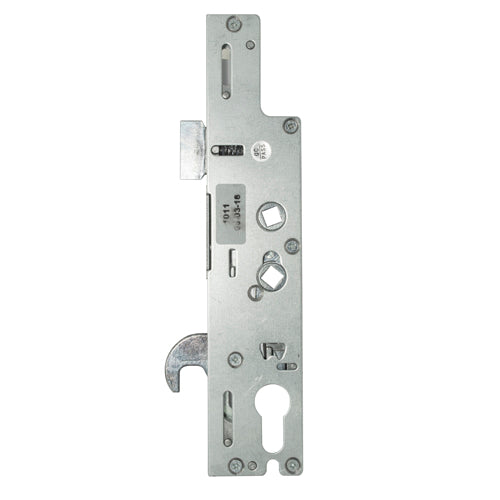

Introducing the Ingenious Genuine Multipoint Gearbox, also known as the Ultimate Collection Origin. This innovative gearbox features a unique double spindle arrangement with centers at 62mm and 92mm, designed for optimal performance.

Both followers are unsprung, so we recommend pairing them with sprung door furniture for best results. Notably, the top corner of the gearbox is cut out for added functionality.

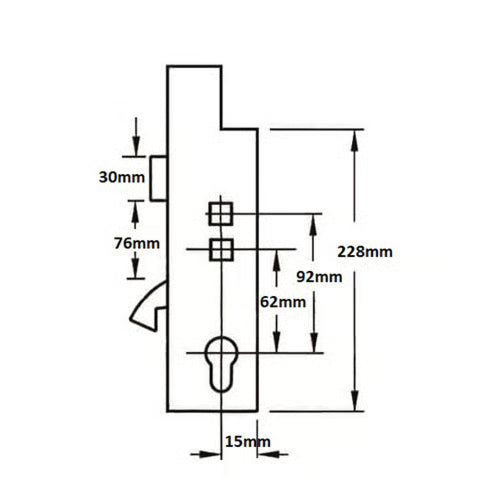

Specifications:

• Overall Height: 230mm
• Screw Hole Configuration: Fixed to the faceplate with 3 screw holes
  • Distance from top screw hole to middle: 110mm
  • Distance from middle screw hole to bottom: 108mm
• Hook and Latch Dimensions:
  • Height: 30mm each
  • Distance between hook and latch: 75mm

When measuring the backset, remember to allow 2-3mm for the faceplate. For instance, a 35mm backset gearbox will measure 32mm when not fixed to the strip.

Ingenious multipoint door gearboxes come equipped with a small plastic snib on the faceplate, which can be used to hold the latch back for convenience and to prevent accidental lock-outs.

It's worth noting that Ingenious gearboxes bear a resemblance to the Fullex XL series (also 230mm), so we recommend comparing the hook boxes against images for accurate identification.

We also stock a comprehensive range of associated products for Ingenious Professional gearboxes, including multipoint door locks, keeps, spindles, handles, and accessories.

Operation: Lift lever or double spindle

Latch Reversal: To reverse the latch, simply undo the screw, remove it, reverse, reinsert, and replace the screws.

Explore the Ingenious Genuine Multipoint Gearbox today for a reliable and efficient locking solution!

To measure the backset, follow these steps:

1. Identify the Door Edge: Locate the edge of the door where the lock will be installed.

2. Measure from the Edge: Use a tape measure to find the distance from the edge of the door to the center of the lock cylinder hole. This distance is your backset measurement.

3. Consider the Faceplate: Remember to allow an additional 2-3mm for the faceplate when measuring.

For the centres PZ measurement:

1. Locate the Cylinder Hole: Identify the center of the cylinder hole on the door.

2. Measure the Distance: Measure from the center of the cylinder hole to the center of the keyhole or latch. This will give you the PZ measurement, which should be 92mm or 62mm as specified.

Regarding the operation of the Ingenious Genuine Multipoint Gearbox:

• Lift Lever: This operation involves lifting the lever handle to engage the locking mechanism, securing the door.

• Double Spindle Nightlatch: This allows for the use of a double spindle mechanism, where turning the key or handle operates the latch and hookbolt simultaneously.

These specifications ensure that you have a clear understanding of how to properly measure and operate your Ingenious gearbox for optimal performance.
