Genuine Multipoint Gearbox - Key Wind

Product Information

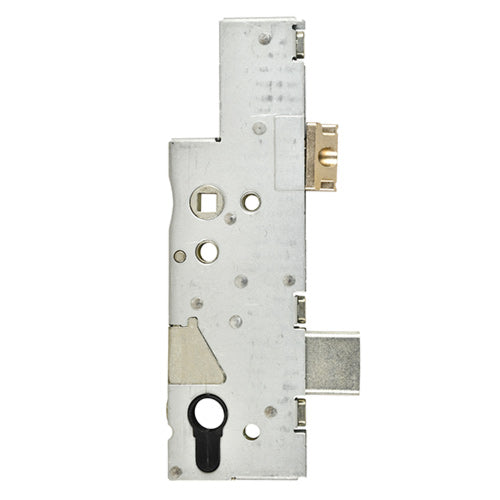

The Lockmaster multipoint gearbox is designed for enhanced security, featuring both a latch and deadbolt with a convenient key wind mechanism.

To Lock the Door

1. Close the door to automatically engage the latch.
2. Turn the key to throw and engage or "wind" out the locking points.

To Unlock the Door

1. Turn the key to unlock by "unwinding" the locking points.
2. A further quarter turn of the key will retract the latch.

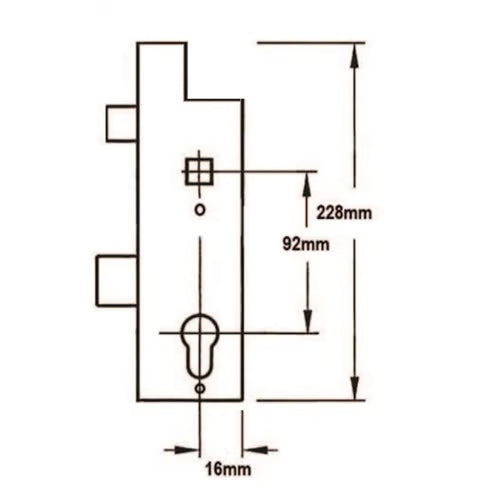

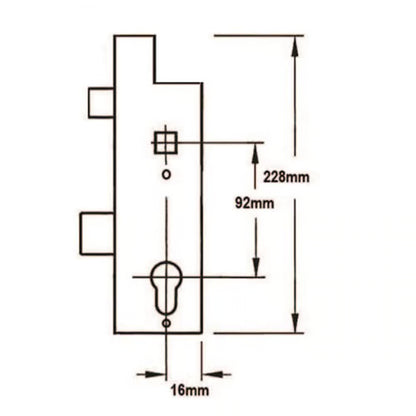

Product Specification

• Manufacturer: Lockmaster
• Backset: 45mm or 55mm
  • How do I measure the backset?
• Centres PZ: 92mm
  • How do I measure the centres?
• Case Height: 228mm
• Case Width: Backset + 15mm
• Copy/Genuine: Genuine
• Cylinder Type: Euro
• Handing: Not Handed
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Operation: Key Wind
  • What is the operation?
• Packaging: Supplied in single

For any additional questions or clarifications regarding measurements or operation, feel free to reach out!
