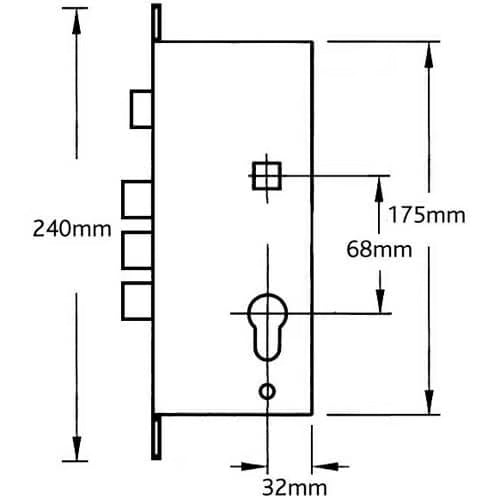

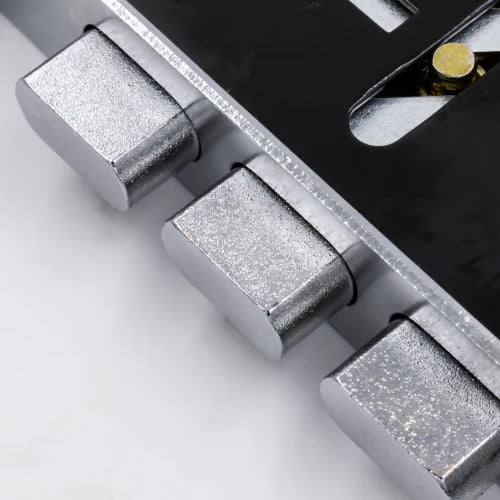

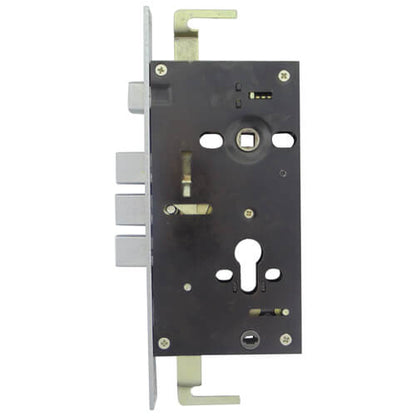

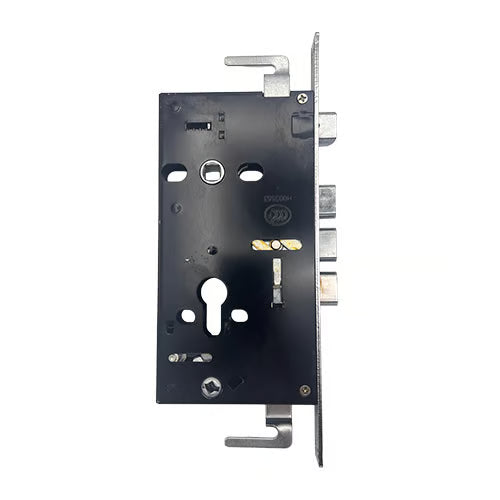

The Hooply multipoint gearbox features a robust design with faceplate dimensions of 240mm x 24mm, centers of 68mm, and a backset of 60mm. This lock case is equipped with fingerbolts and is ideal for use in site containers and security steel doors. For a standard deadbolt version, refer to HOO002.
Operation: Key Wind
Latch Reversal Instructions:
Depending on the date of manufacture, the latch can be reversed using one of the following methods:
Method 1:
Undo the screw on top of the lock case.
Push the silver button up to pop the latch out.
Twist and reinsert the screw to secure.
Method 2:
Insert a screwdriver or similar tool into the round hole located in the back edge of the lock case behind the latch.
Push the entire latch bolt forward until it clears the faceplate, allowing for rotation.
Spin the bolt 180 degrees.
Remove the screwdriver, and the bolt will return to its position.
This multipoint gearbox is designed for durability and security, making it an excellent choice for various applications.
To lock the door, follow these simple steps:
Lift the handle upwards to engage the locking points.
Lock the locking points and main deadbolt (if present) by turning the key.
To unlock the door, simply:
Unlock the system by turning the key.
Push the handle downwards to disengage the locking points and retract the latch.
Product Specification
Manufacturer: Hooply
Backset: Select from drop-down - How do I measure the backset?
Centres PZ: 68mm - How do I measure the centres?
Case Height: 175mm
Case Width: 92mm
Copy/Genuine: Genuine
Cylinder Type: Euro
Handing: Not Handed
Main Gearbox: Latch & deadbolt

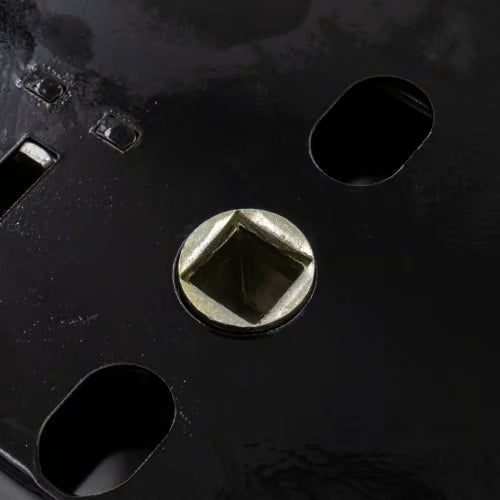

Spindle: Single 8mm
Operation: Key Wind - What is the operation?
Packaging: Supplied in singles
This comprehensive guide ensures you can easily operate and understand the specifications of your Hooply multipoint gearbox lock.
