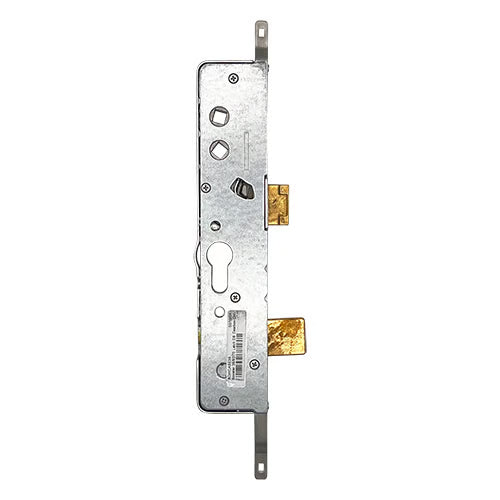

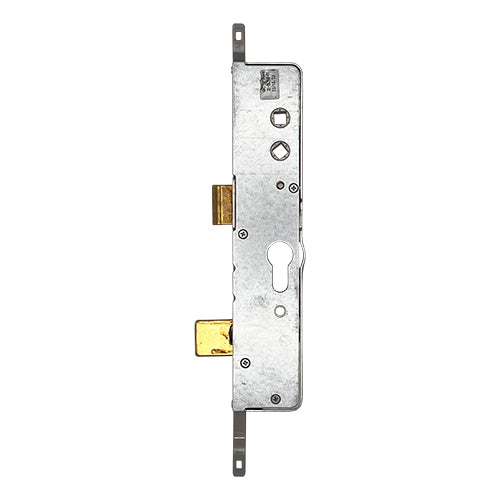

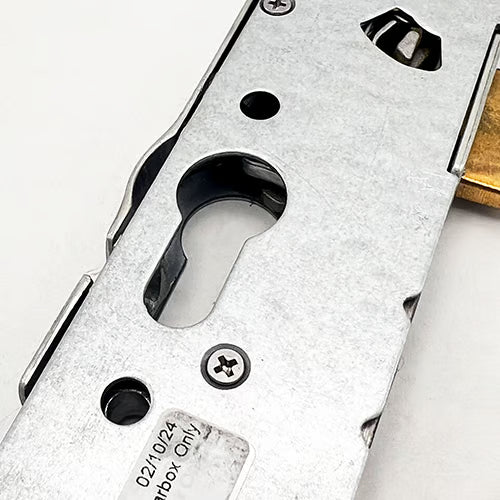

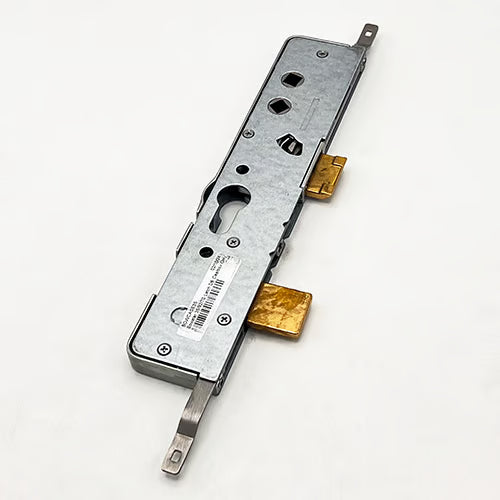

Introducing the Bowater Gearbox, designed for durability and efficiency. This gearbox features a 35mm backset and an innovative 92/70mm double spindle mechanism, making it a reliable choice for various applications.

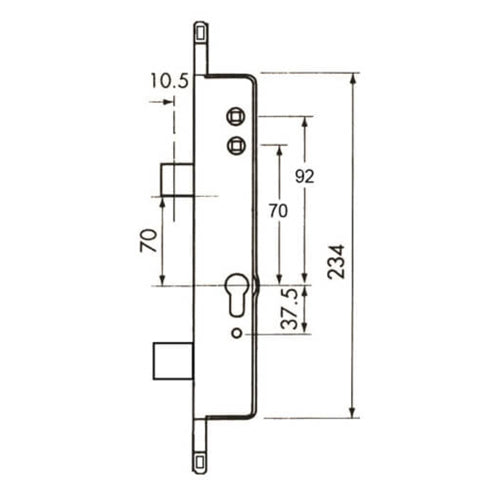

The case dimensions are 234mm in height and 52mm in width, and it requires self-tapping screws for installation. Please be aware that earlier versions of this gearbox have different screw positions and are not interchangeable, ensuring you select the correct model for your needs.
Operation: Lift Lever
Latch Reversal Instructions:
Unscrew the lock case with the latch facing left.
Remove the flat positioning plate.
Take out the latch clip and the latch retaining spring.
Reverse the latch.
Reassemble the components.
Product Specification
Manufacturer: Bowater
Backset: 35mm How do I measure the backset? Measure the distance from the edge of the door to the center of the keyhole.
Centres PZ: 92mm/70mm How do I measure the centres? Measure the distance between the center of the keyhole and the center of the handle.
Case Height: 237mm
Case Width: Backset + 15mm
Copy/Genuine: Genuine
Cylinder Type: Euro
Handing: Reversible (supplied as left hand)
Main Gearbox: Latch & deadbolt
Spindle: Double 8mm
Operation: Lift Lever or Split Spindle Nightlatch What is the operation? The operation refers to how the lock is engaged or disengaged, either by lifting the lever or using a split spindle mechanism.
Packaging: Supplied in singles
This Bowater gearbox combines functionality with ease of use, making it an excellent addition to your locking solutions.
