Garage Door Defender

Product Information

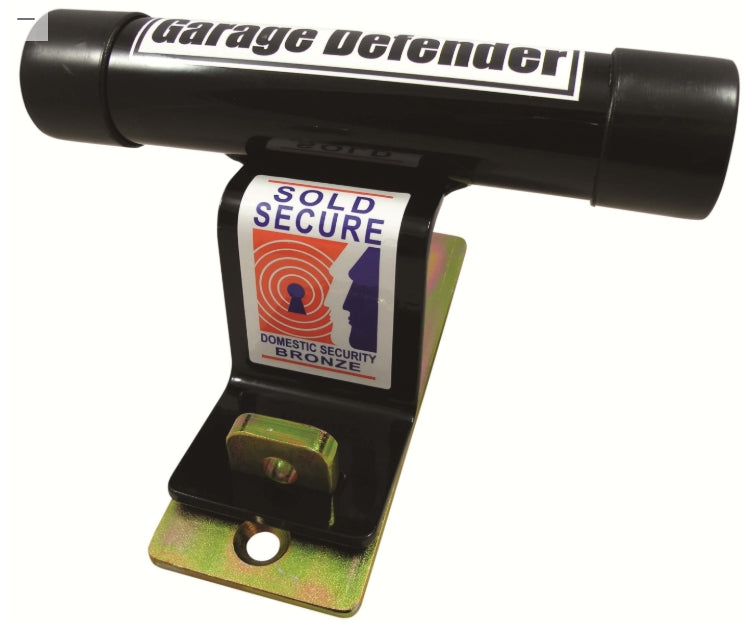

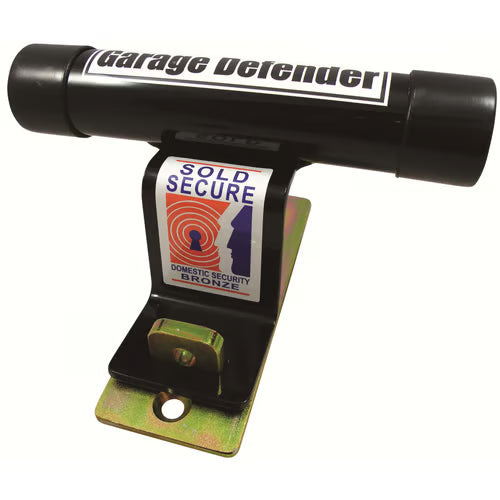

Garage Defender

Product Specification
The Garage Defender is designed to enhance the security of your garage by preventing up and over doors from being opened.

• Unlocking Mechanism: Simply unlock and remove the padlock to access your garage.
• Padlock Eye Dimension: 13mm
• Overall Dimensions:
• Length: 215mm
• Width: 260mm (At widest point)
• Height: 144mm
• Base Screw Centres:
• 1st to 2nd: 110mm
• 2nd to 3rd: 70mm
• Security Rating: Solid secure bronze rated
• Compatibility: Designed for use with Master padlock (6270 - Differ)
• Padlock: Supplied separately; can be keyed alike in-house
• Included: Supplied with security bolts

Fitting Instructions

1. Use the base plate as a template to drill 2 holes with a 10mm diameter concrete bit, 10mm deep.
2. Remove the base plate and re-drill the holes with a 16mm diameter concrete bit, 90mm deep.

Packaging

• Supplied in singles.
