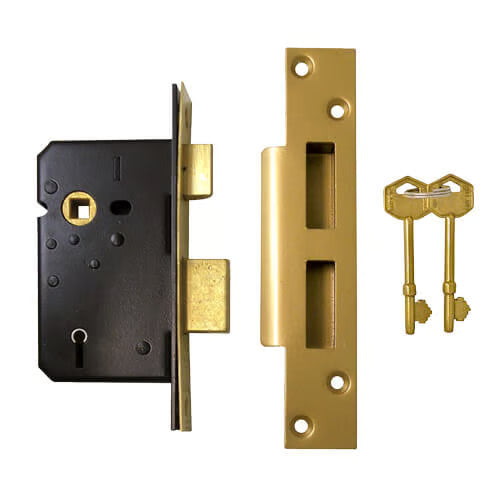

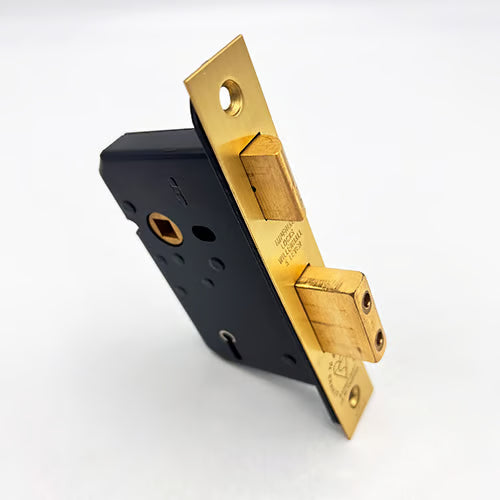

G5050 British Standard 5 Lever Mortice Sashlock

Product Overview

The Imperial G5050 mortice sash lock is a premium quality lock designed to meet the rigorous standards of British Standard BS3621:2007. Manufactured in England, this lock is CE marked and fire rated to BS EN 1634-1:2000, ensuring reliability and safety in various environments.

Key Features:

• High Security: Equipped with 5 levers, anti-drill, and anti-saw features, the G5050 offers exceptional protection against unauthorized access.
• Distinctive Design: The lock features a unique hammered finish on a dark grey case, setting it apart from standard mortice locks.
• Versatile Options: Available in polished brass or satin chrome finishes, the G5050 can complement any door aesthetic.

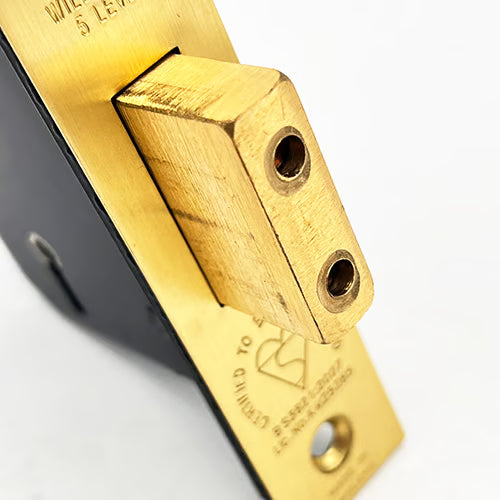

• Robust Deadbolt: The deadbolt throws at least 20mm, providing positive deadlocking and enhanced resistance against attacks. It also includes hardened steel rollers to prevent sawing.
• User-Friendly Operation: The lock can be easily locked and unlocked from either side using a key, while the latch is withdrawn by moving the handle.
• Security Striking Box: Supplied with a matching security striking box to meet BS3621 requirements.
• Adaptable Fit: Suitable for doors up to 54mm thick, with options for extra-long keys for thicker doors.
• Non-Handed Design: Can be installed on doors hinged on either side, accommodating various door configurations.
• Keying Options: Comes with 2 brass keys, with the option to order additional keys or have multiple locks keyed alike.

Compliance and Recommendations:

Many insurance companies require locks on external doors to comply with BS3621 or BS8621. Always verify with your insurance provider to ensure compliance. The G5050 meets these standards, and the BSI kitemark is visible on the faceplate.

Installation Notes:

• Ensure the door thickness is adequate for the lock installation; a minimum of 44mm is recommended.

• When replacing an existing lock, be prepared for potential size differences and adjustments to the door.

• For new timber doors, consider using the Souber DBB morticer for efficient installation.

Additional Information:

For further details on British Standards for mortice locks, visit the MLA's website. Duffells offers a wide range of mortice locks and associated parts, with delivery options available to suit your needs.

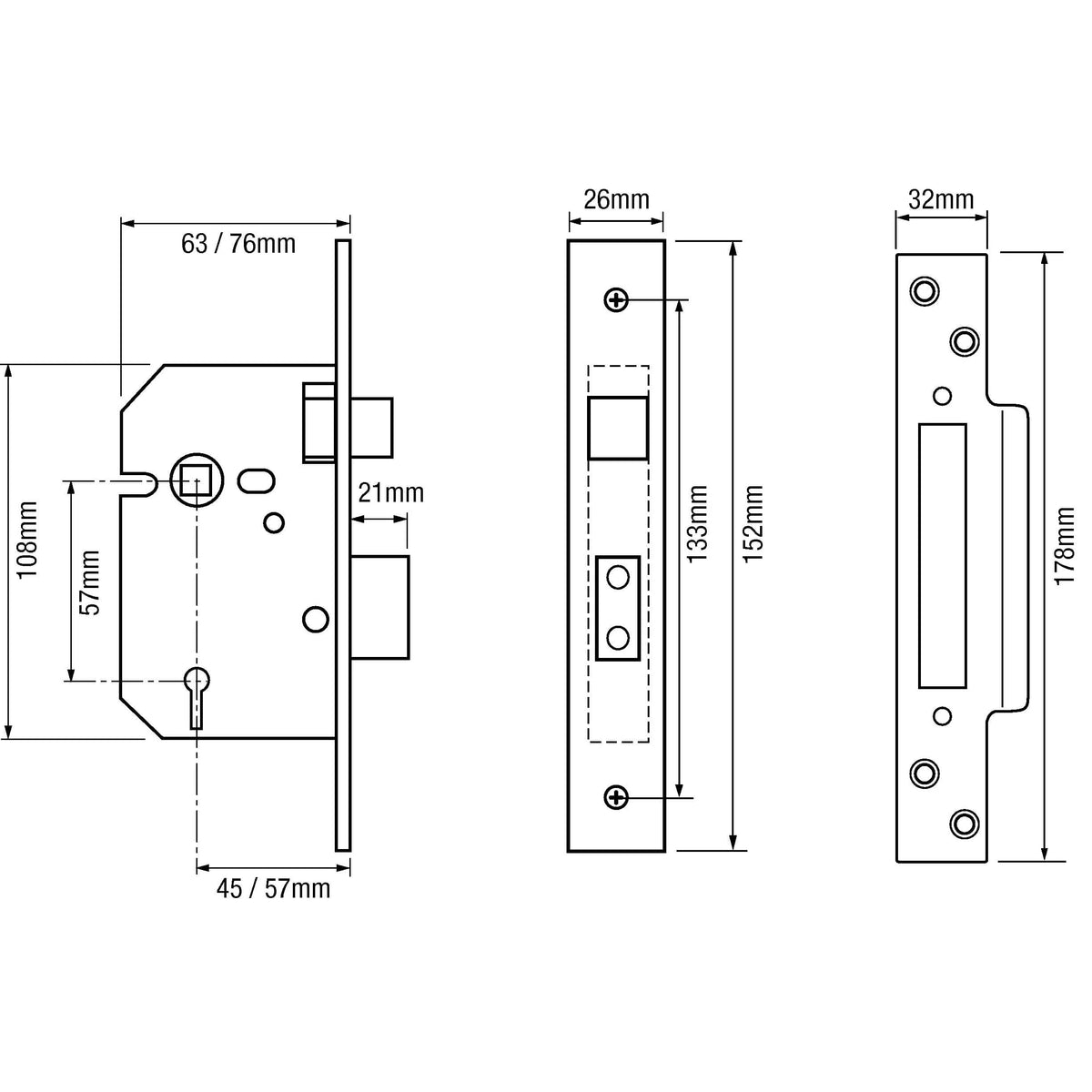

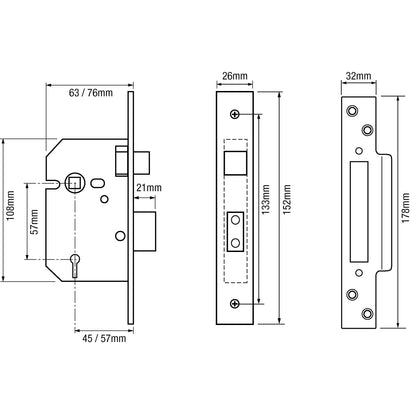

Product Specifications

• Category: Mortice Sashlock
• Type: British Standard
• Case Colour: Grey
• Handle Piercing Size: 38mm
• Case Height: 108mm
• Centres: 57mm
• Faceplate Height: 152mm
• Faceplate Width: 26mm
• Deadbolt Throw: 21mm
• Follower Size: 8mm
• Keys: 2
• British Standard: BS3621:2007
• UKCA Marked: No
• CE Marked: Yes
• Certifire Approved: No
• Fire Rated: 60 mins
• Can be Keyed Alike: Yes
• Handed: Non-handed
• Escutcheon Plates Supplied: No

Explore our extensive selection of mortice locks and ensure your security needs are met with the Imperial G5050.
