G5011/G5012 Horizontal Non British Standard 5 Lever Mortice Sashlock

Product Information

Introducing the Imperial 5 Lever Horizontal Mortice Sash Lock, designed for both internal and external wooden hinged doors, ensuring a high level of security. Proudly made in England, this lock is compatible with 38mm bolt-through furniture.

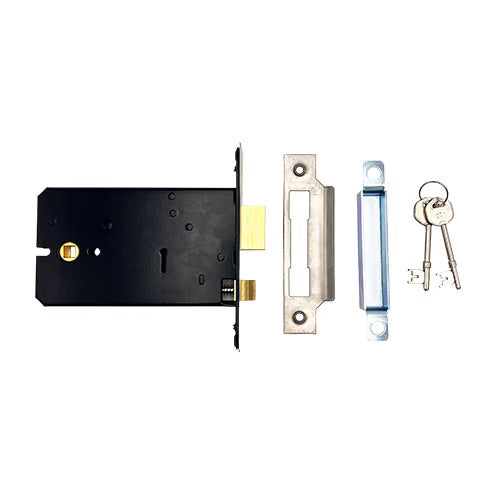

Included with the lock are fixing screws and a box strike, featuring 200 standard differs for added security.

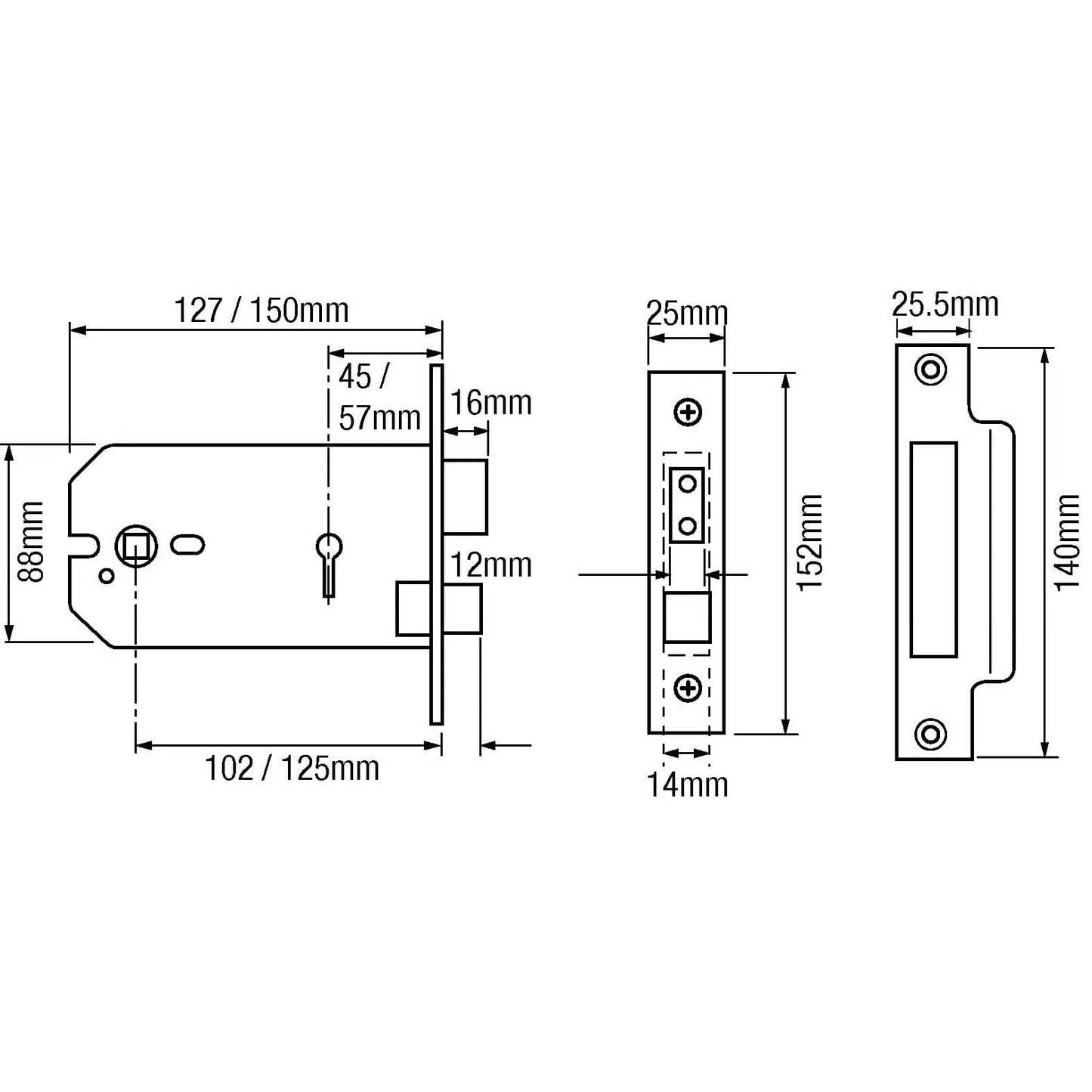

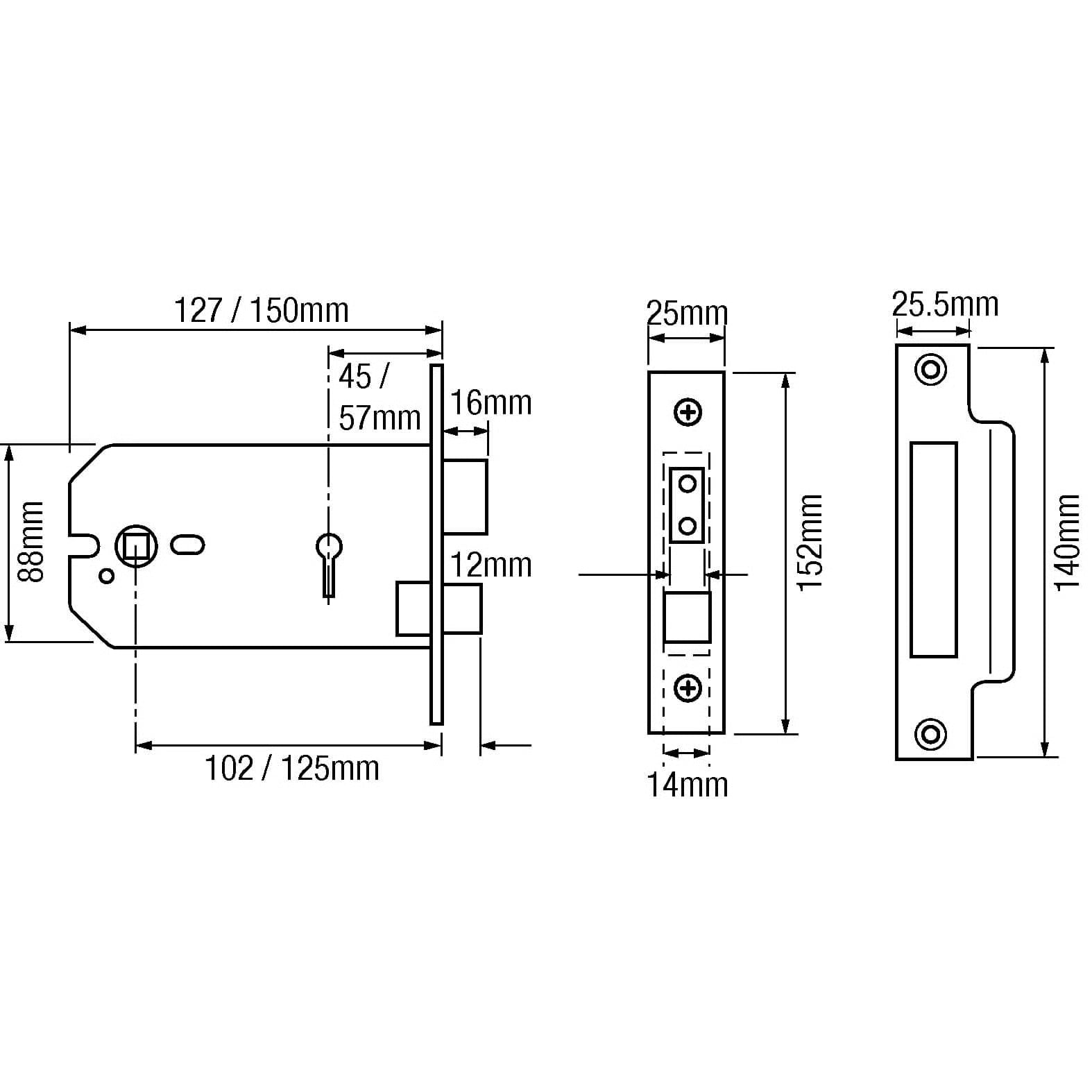

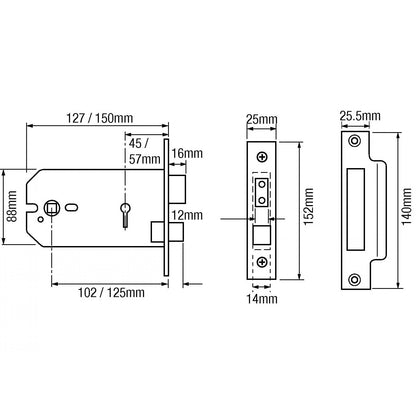

These locks come with a distinctive black lock case and unique measurements that set them apart from other mortice locks. For detailed specifications, please refer to the line drawing provided.

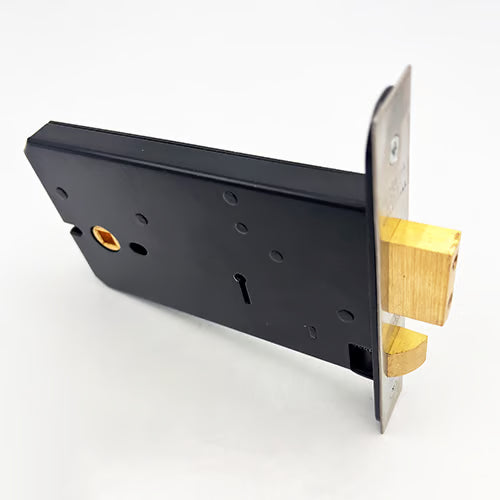

The deadbolt extends 16mm and incorporates hardened steel rollers to resist sawing attacks. It can be locked and unlocked from either side using the key, while the latch is easily withdrawn by moving the handle from either side.

Each lock is supplied with a security striking box that matches the finish of the lock faceplate.

Compatibility and Customization

This lock is suitable for doors up to 54mm thick. The thickness of the door will determine the length of the keys. If you need this lock for a particularly thick door, we can provide extra-long keys upon request.

These locks are non-handed, making them versatile for doors that hinge on the left or right and open inwards or outwards.

Standard supply includes 2 nickel-plated steel keys. If you need additional keys, simply select your preference for genuine or copy key blanks and specify the quantity from the associated products on this page.

For those requiring multiple locks to operate with the same set of keys, our in-house locksmith team can key them alike. We typically dispatch orders the same day, although larger quantities may take longer.

We also stock a variety of associated parts, including key blanks, rebate sets for double doors, and levers. Choose the products you need from the associated items on this page.

Compliance and Safety

These locks are CE marked and tested to BS EN 1634-1:2000 for use on 60-minute fire doors. Please verify that the locks comply with the relevant legislation in your market before purchasing.

Always consult the relevant fire assessment, door specifications, or authorities to ensure this product is suitable for your specific environment. More details can be found in the Declaration of Performance (DOP).

Please note that these locks do not feature an escape function and can be locked from the outside, which may render them unsuitable for certain environments.

Quality Assurance

Imperial locks, formerly known as Guardian Locks, are manufactured in the UK, making them an excellent choice for clients seeking high-quality, durable locks. Their extensive range includes sizes and operations that other manufacturers may not offer.

Mortice lever locks are commonly installed on wooden doors but can also be used on steel, aluminum, and composite doors. They are secured from both inside and outside with a key, which operates the deadbolt. A mortice lock is installed within the door, rather than on its surface.

Installation Tips

When replacing an existing lever mortice lock, be aware that the new lock may be larger due to enhanced security features or design changes. The lock hole can usually be enlarged with a hammer and chisel if necessary.

For new timber doors, we recommend using Souber’s DBB morticer for efficient installation. You can find the DBB1 morticer .

Ensure your door is thick enough to accommodate the mortice lock being fitted. The Master Locksmith Association recommends a minimum thickness of 44mm.

A lever mortice lock secures a door by throwing a bolt into a metal keep or strike fitted to the frame, preventing the door from being opened once engaged. The bolt can be locked or unlocked from either side with a key.

Duffells offers a vast selection of mortice locks at various security levels, with delivery options available in as little as 24 hours. Explore our express delivery options and find more details on our delivery info page.

Product Specification

• Product category: Mortice Sashlock
• Product type: 5 Lever
• Case colour: Black
• Handle piercing size: 38mm
• Case height: 88mm
• Centres: 57mm
• Faceplate height: 152mm
• Faceplate width: 25mm
• Deadbolt throw: 16mm
• Follower size: 8mm
• Keys: 2
• British Standard?: No
• UKCA marked?: No
• CE marked?: Yes
• Certifire approved?: No
• Fire rated?: 60 mins
• Can be keyed alike?: Yes
• Handed?: Non-handed
• Escutcheon plates supplied: No
