G5004 Non British Standard 5 Lever Mortice Deadlock

Product Overview

Introducing the Imperial 5 Lever Mortice Dead Lock, a robust solution for securing both internal and external wooden hinged doors. Crafted in England, this lock offers a high level of security with 200 standard differs, ensuring your peace of mind.

Key Features

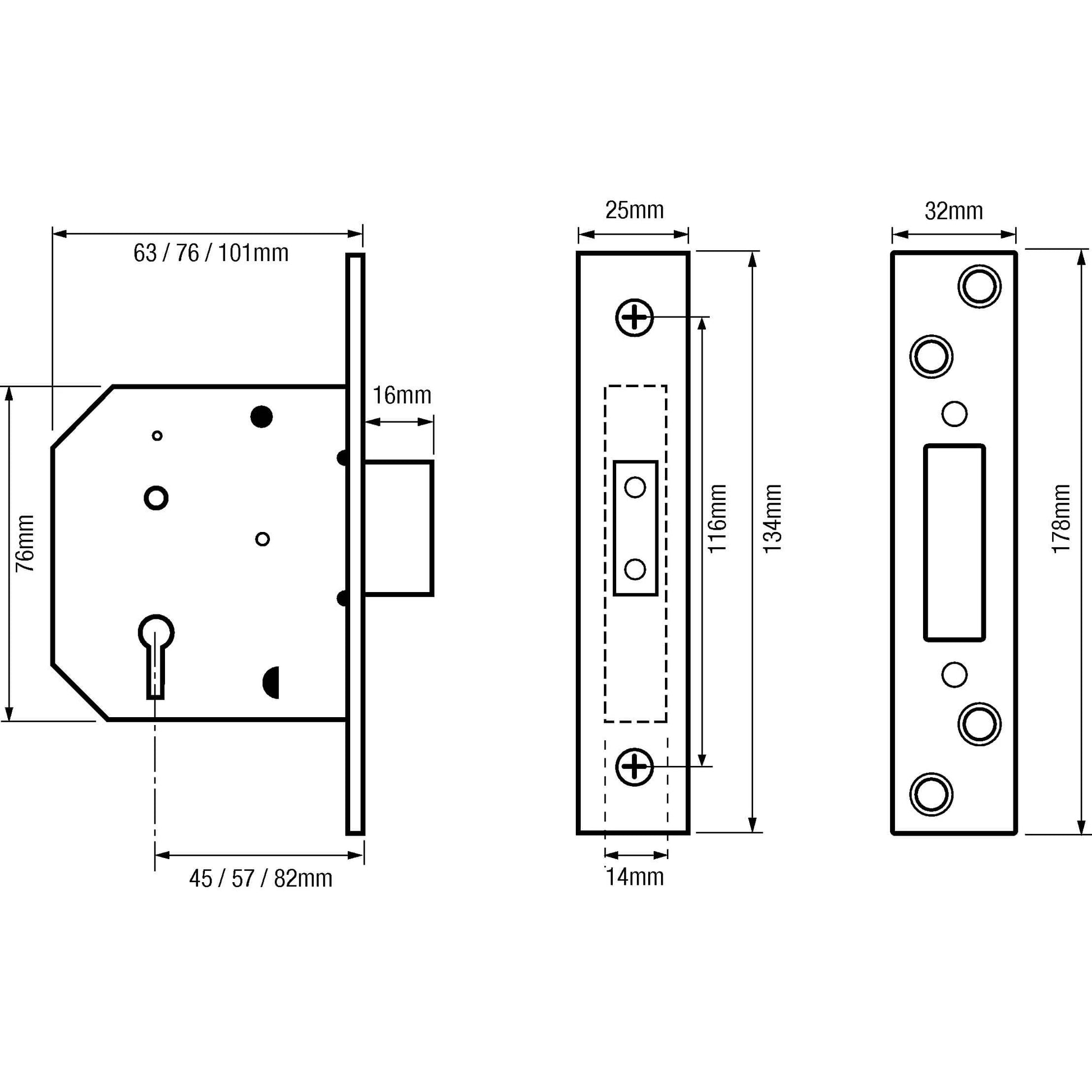

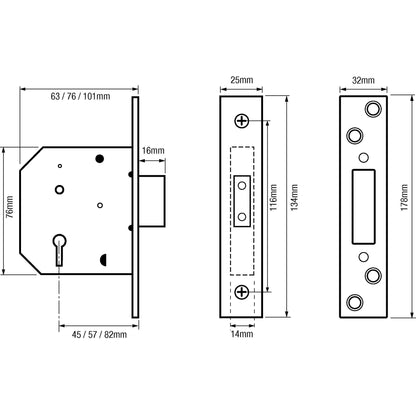

• Durable Design: The lock features a black case and unique measurements that set it apart from other mortice locks. Refer to the line drawing for precise specifications.
• Enhanced Security: With a deadbolt throw of 16mm and hardened steel rollers, this lock is designed to resist sawing attacks.
• Versatile Operation: The deadbolt can be locked and unlocked from either side using a key, while the latch is easily withdrawn by moving the handle from either side.

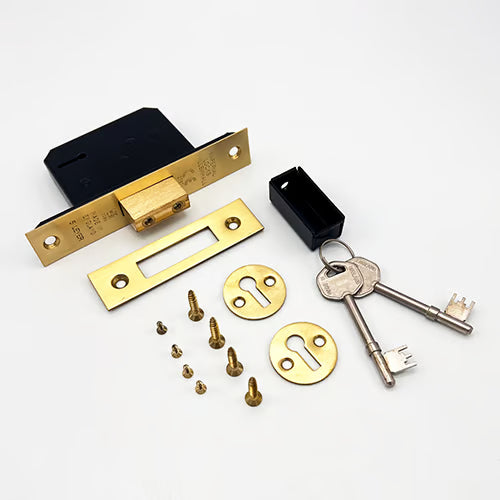

• Complete Package: Supplied with two keyhole escutcheons in a matching finish for both internal and external sides, along with a security striking box.
• Compatibility: Suitable for doors up to 54mm thick. For thicker doors, extra-long keys can be provided upon request.
• Non-Handed Design: This lock can be installed on doors hinged on either side, accommodating both inward and outward opening doors.
• Key Options: Comes with two nickel-plated steel keys. Additional keys can be cut as needed, with options for genuine or copy key blanks.
• Keyed Alike Option: Multiple locks can be keyed alike by our in-house locksmith team, with same-day dispatch available for most orders.
• Compliance and Safety
• CE Marked: Tested to BS EN 1634-1:2000 for use on 60-minute fire doors. Ensure compliance with local regulations before installation.
• Fire Safety: Always check the relevant fire assessment and door specifications to confirm suitability for your environment.
• Escape Function: Note that this lock does not feature an escape function and can be locked from the outside, which may limit its use in certain settings.

Installation Guidance

• Mortice Lock Definition: A mortice lock is installed within the door, providing a clean and secure fit.

• Types of Lever Locks: Understand the difference between dead locks and sash locks to choose the right option for your needs.

• Replacement Considerations: When replacing an existing lock, be aware that new locks may differ in size. Adjustments can be made using standard tools.

• Recommended Tools: For new timber doors, consider using Souber’s DBB morticer for efficient installation.
