G5000 Non British Standard 5 Lever Mortice Sashlock

Product Overview

Introducing the Imperial 5 Lever Mortice Sash Lock, a robust solution designed for both internal and external wooden hinged doors. Crafted in England, this lock offers exceptional security and is compatible with 38mm bolt-through furniture.

Key Features

• High Security: With 200 standard differs, this lock ensures a high level of protection.

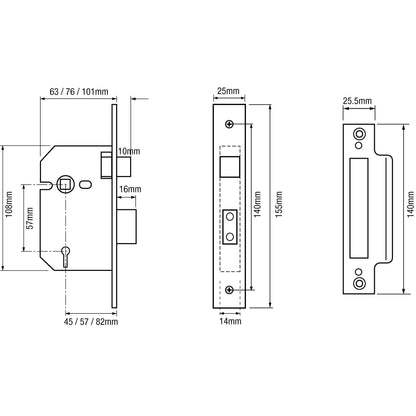

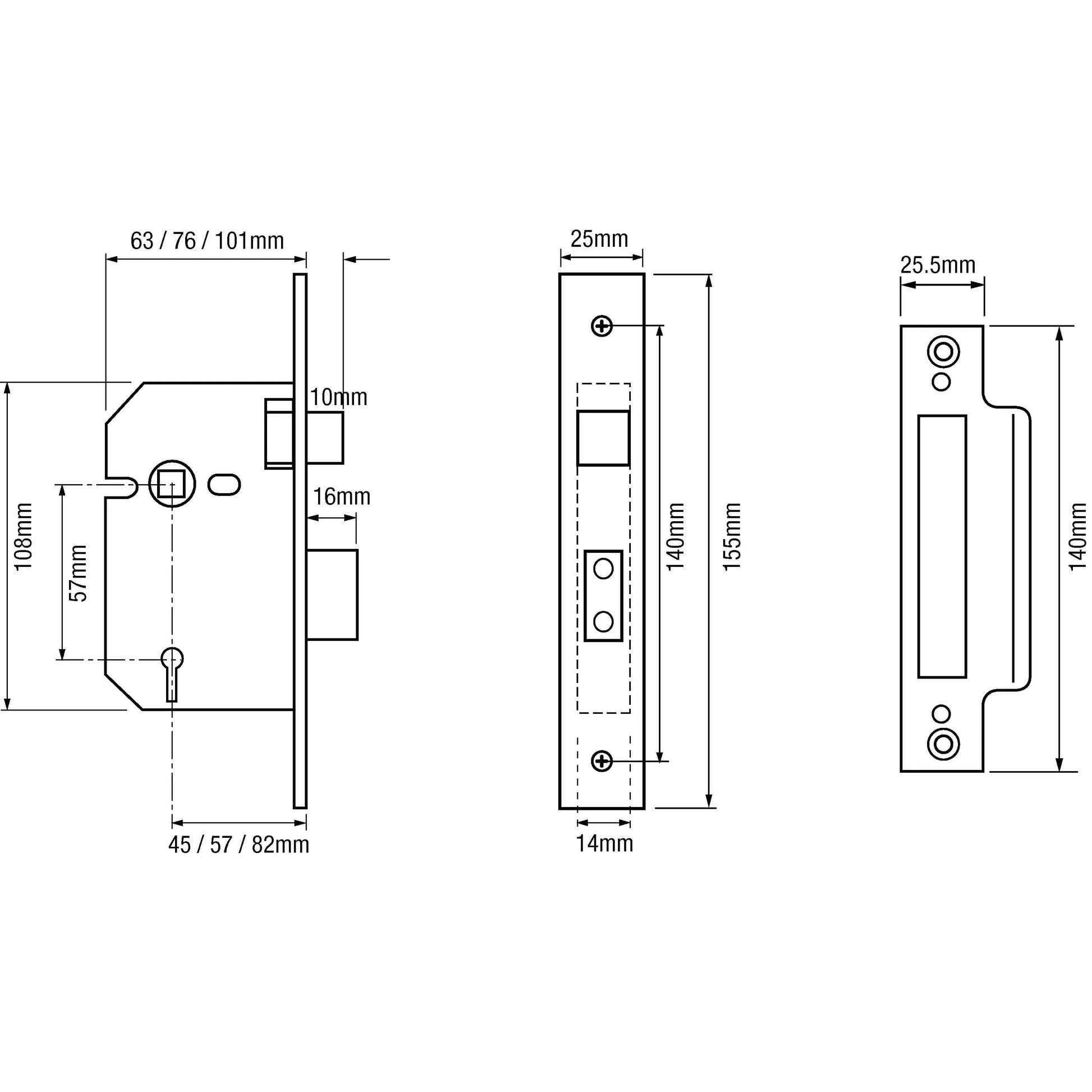

• Durable Design: The black lock case is uniquely measured, setting it apart from other mortice locks. Refer to the line drawing for precise specifications.
• Enhanced Resistance: The deadbolt throws 16mm and includes hardened steel rollers to resist sawing attacks.
• Versatile Operation: Lock and unlock the deadbolt from either side using the key, while the latch can be easily withdrawn by moving the handle.
• Matching Security Striking Box: Supplied with a striking box that matches the lock faceplate finish.
• Door Compatibility: Suitable for doors up to 54mm thick. For thicker doors, extra-long keys may be available upon request.
• Non-Handed Design: Can be installed on doors hinged left or right, opening inwards or outwards.
• Key Options: Comes with 2 nickel-plated steel keys. Additional keys can be cut as needed.
• Keyed Alike Option: Locks can be keyed alike for convenience, with same-day dispatch available for most orders.
• Associated Parts Available: A range of related products, including key blanks and rebate sets, can be found on this page.
• Fire Safety Compliance: CE marked and tested to BS EN 1634-1:2000 for use on 60-minute fire doors. Always verify compliance with local regulations.

Installation Notes

• Ensure the door thickness is adequate for the mortice lock installation, with a minimum recommended thickness of 44mm.

• When replacing an existing lock, be prepared for potential size differences. Adjustments may be necessary using appropriate tools.

• For new timber doors, consider using Souber’s DBB morticer for efficient installation.
