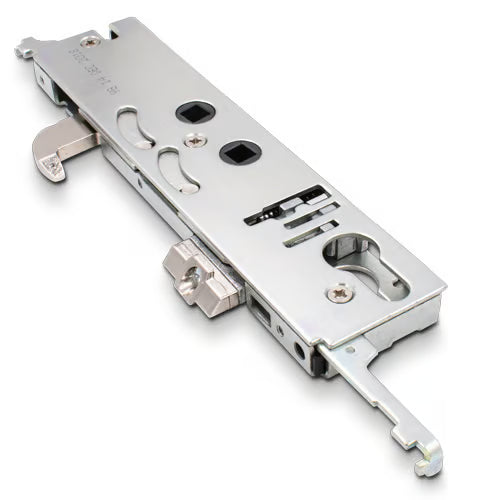

G2000 Copy Multipoint Gearbox - Lift Lever or Double Spindle

Product Overview: Copy Yale G2000 Lock Gearbox Replacement

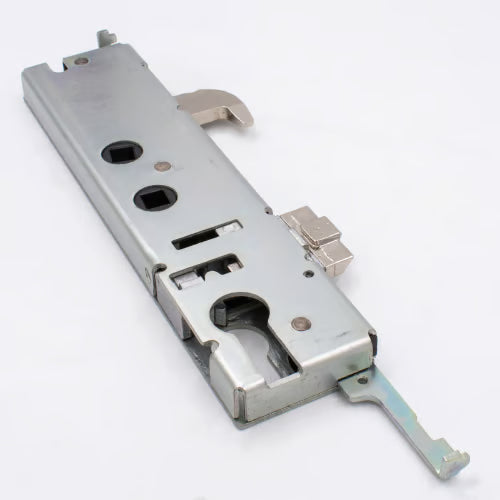

The Copy Yale G2000 lock is known for its unique design, featuring a hook positioned above the latch. Since Yale has discontinued these locks, the most effective solution for maintaining security is to replace the gearbox. Our replacement gearbox is a direct substitute, ensuring compatibility and functionality.

Key Features:

• Color Identification: If you're replacing a gearbox, it's likely that the original was yellow or gold, as the locks were initially made with yellow chromate. However, all replacement gearboxes, whether genuine or copies, are silver in color.

• Dimensions: The G2000 gearboxes measure 194mm in height and 52mm in width. The latch itself is 30mm high, with a distance of 55mm from the top of the latch to the bottom of the hook.

• Associated Products: We offer a variety of related products for the Copy Yale G2000 gearboxes, including multipoint door locks, keeps, spindles, handles, and various accessories.

Locking Mechanism:

To lock the door:

1. Close the door to automatically engage the latch.
2. Lift the handle to engage the additional locking points.
3. Throw the deadbolt and secure the system by turning the key (note: on some brands, lifting the handle will throw the deadbolt).

To unlock the door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A further quarter turn of the key will retract the latch.

Operation Types: Available in Lift Lever or Double Spindle.

Latch Reversal Instructions:

To reverse the latch, simply undo the screw in the latch to remove it. Reverse the latch, reinsert it, and replace the screw to complete the process.

For any further assistance or to explore our range of products, feel free to reach out!

Product Specification

Manufacturer: Yale Copy

Backset: 35mm
How to Measure the Backset:
To measure the backset, take a tape measure and measure the distance from the edge of the door to the center of the keyhole or the cylinder. This measurement is crucial for ensuring that the lock fits properly in the door.

Centres PZ: 92/62mm
How to Measure the Centres:
To measure the centres (PZ), measure the distance from the center of the keyhole to the center of the handle spindle hole. This ensures that both components align correctly for smooth operation.

Case Height: 194mm

Case Width: 52mm

Copy/Genuine: Copy

Cylinder Type: Euro

Handing: Not Handed

Main Gearbox: Latch & hookbolt

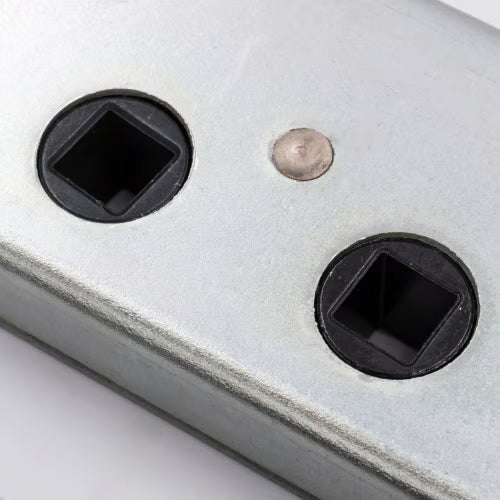

Spindle: Double 8mm

Operation: Lift Lever or Double Spindle Nightlatch
What is the Operation?
The operation refers to how the lock is engaged and disengaged. The Lift Lever operation allows you to lift the handle to engage the locking mechanism, while the Double Spindle Nightlatch operation involves turning the key to lock or unlock the door, providing flexibility in usage.

Packaging: Supplied in singles
