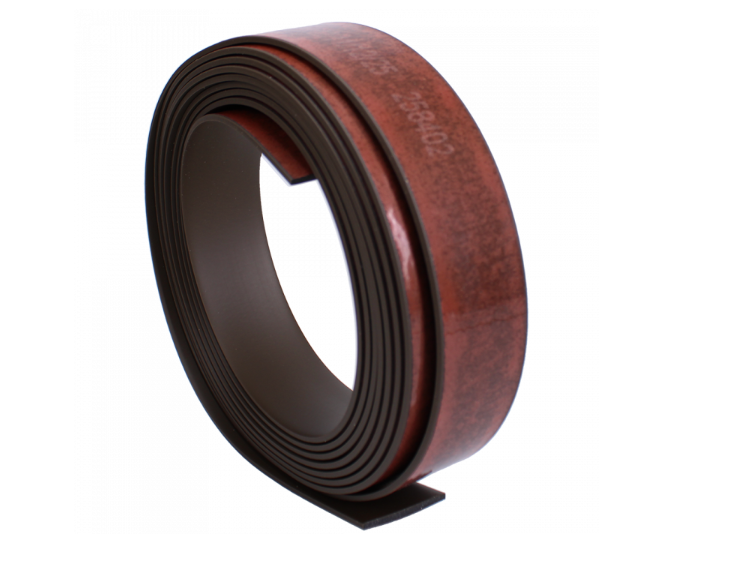

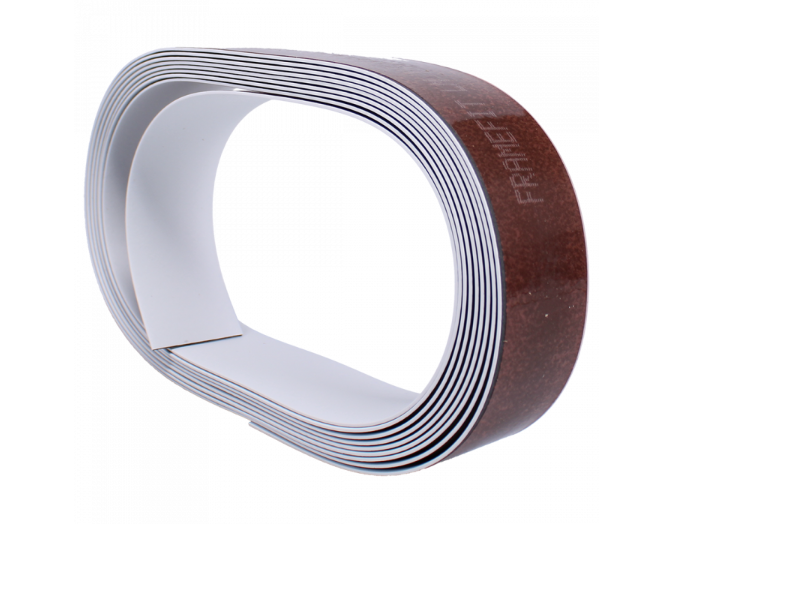

FRAMEFIT Fire Door Low Modulus (LM) Spacer Seal 5.2 Metre Roll

FrameFit is an innovative gap fill solution designed specifically for doors and frames, ensuring compliance with current fire door regulations. With fire door inspectors flagging any gaps exceeding 4mm between the frame and leaf as ‘Non-Compliant’, it’s crucial to address these issues effectively. For the bottom of fire doors, gaps over 8mm for Fire Only Doors and over 3mm for Fire & Smoke Doors also fall into the ‘Non-Compliant’ category.

Our Low Modulus (LM) seal is ideal for gap filling when intumescent material is already present in the door edge. It can also be paired with the separately available High Expansion (HE) seal, making it versatile for situations where frame-fitted intumescent is absent or not applicable.

Available in various sizes to accommodate FD30 and FD60 fire doors, the FrameFit seal comes in a convenient 5.2 metre roll. It has been rigorously tested and meets the standards set by BS 476 Part 22 and BS EN 1634-1, ensuring reliability and safety.

Features

• Fully tested and compliant to BS 476 Part 22 & BS EN 1634-1
• Designed for use with the HE (High Expansion) seal when frame-fitted or no intumescent is present
• Low Modulus (LM) seal for gap filling when intumescent is already in the door edge
• Easily cut to size for convenience
• Available widths to suit FD30 (44mm) or FD60 (54mm) fire doors
• Supplied on a 5.2 metre roll
• Choice of thickness options

Ensure your fire doors are compliant and safe with FrameFit, the reliable solution for gap filling.
