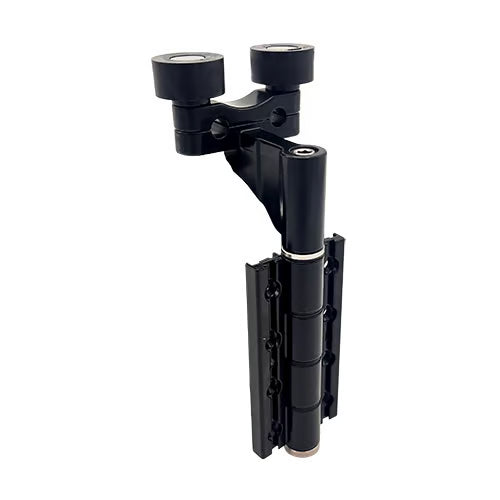

for Raynaers CF68 Bi-Fold Doors Top Guide

for Raynaers CF68 Bi-Fold Doors Top Guide

DF-BITGRCF68BL

£46.20 GBP
£46.20 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Finish

2 in stock

  • Free shipping on all orders over $75.00
  • Easy Free Return and Refund
  • Trusted by Trade Professional

Product Information
Replacement top guide commonly fitted to Raynaers CF68 aluminium bi-fold doors.

Product Specification

  • Part Type: Top Guide
  • Overall Height: 180mm
  • Roller Height: 30mm
  • Hinge Height: 100mm
  • Hinge Width When Open: 48mm
  • Diameter of Knuckle: 18mm
  • Hinge Screw Centres: 30mm
  • Fixing Holes: 5
  • Countersunk Fixing Holes: 4
  • Top to Bottom Fixing Hole: 72mm
  • Top to Middle Fixing Hole: 36mm
  • Middle to Bottom Fixing Hole: 36mm
  • 2nd to 4th Fixing Hole: 25mm
  • 3rd to 5th Fixing Hole: 37mm
  • Roller Height: 14mm
  • Roller Diameter: 28mm
  • Roller Centres: 46mm

This top guide is designed for durability and precision, ensuring smooth operation for your bi-fold doors.
