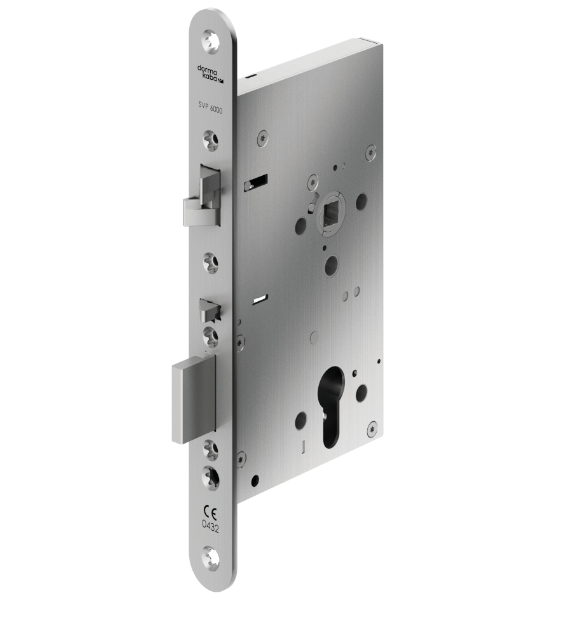

Fire Rated Electric Lock SVP6277 12/24V DC FL/FU Outwards DIN Left / Inwards DIN Right

The Dormakaba SVP6277 is an advanced emergency-escape lock designed for safety and reliability. This microswitch-monitored lock features automatic locking action, making it ideal for non-rebated single leaf timber doors.

Key features include:

• Fire Door Compatibility: Suitable for FD30 & FD60 fire doors when paired with the correct intumescent pack.
• Universal Trip Latch: Ensures ease of use and accessibility.
• Compliance and Testing: This product is fire tested and must be installed according to the manufacturer’s guidelines, along with all relevant associated products.
• Two-Point Locking Mechanism: Activated by a pre-loaded spring when the door closes, enhancing security.
• Split Follower Design: Features a 9mm square section follower for improved functionality.
• Status Monitoring: Provides real-time feedback on the lock's status.
• Electrical Specifications: Max load current of 30 VDC, 100mA, ensuring efficient operation.
• Durable Construction: Steel bolt projection of 20mm for added strength and security.
• Certifire Approved: Meets rigorous safety standards for fire safety.

This lock is engineered for optimal performance and safety, making it a reliable choice for various applications.
