FD322 Outside Access Device - Lever Handle with Euro Cylinder - For Timber or Metal Doors

Product Information

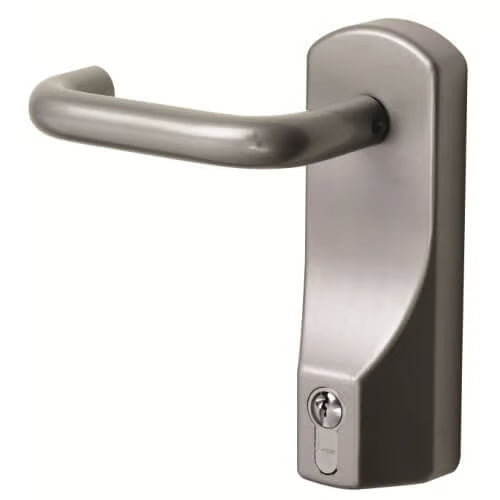

Exidor 322 Outside Access Device for Timber or Metal Doors

The Exidor 322 is a robust outside access device designed for both timber and metal doors, offering enhanced security and ease of use.

Key Features

• Lever Version with Euro Cylinder
  The device features a lever mechanism that operates with a euro cylinder for added security.

• Operation

  • Locked State: When locked, the lever is disengaged from the mechanism, preventing unauthorized entry while still allowing the lever to pull down.
  • Unlocked State: When unlocked, the lever, spindle, and mechanism engage, enabling the shoot bolts, latch, or pullman latches to be withdrawn from outside the door.
  • Unlocking: Once the door is opened from either side, the lever remains unlocked until it is re-locked with a key. Please note that this unit is NOT self-locking.

• Durability

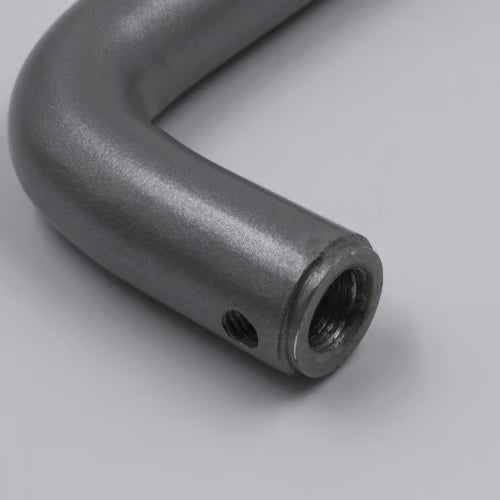

  The lever variant is attached to the body by a shear pin. In the event of severe abuse, the shear pin will break, protecting the mechanism. The shear pin can easily be replaced.

Product Specifications

• Height: 175mm
• Width: 60mm
• Projection: 88mm
• Lever Length: 135mm
• Suitable for Doors: Up to 55mm thick

Included Components

• Supplied with a 3010 half euro cylinder, which includes 3 keys, an adjustable cam, and a rear entry retaining screw.
• Suggested replacement cylinder code: FD302CYL (Non Restricted).
• Can be incorporated into a master key system or keyed alike suite in-house (the euro cylinder will require replacing).
• Supplied with fixings suitable for both timber and metal doors.
• Boxed for secure delivery.

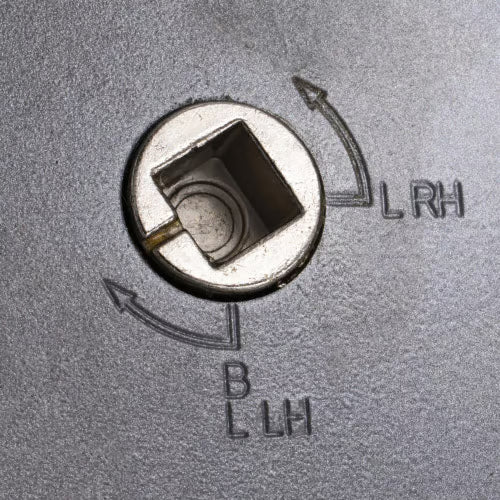

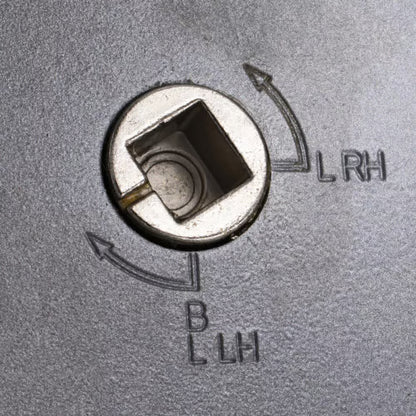

• Non-handed (lever is reversible).
• Surface mounted on the outside of the door using machine screws.

This device is an excellent choice for those seeking a reliable and secure access solution for their doors.
