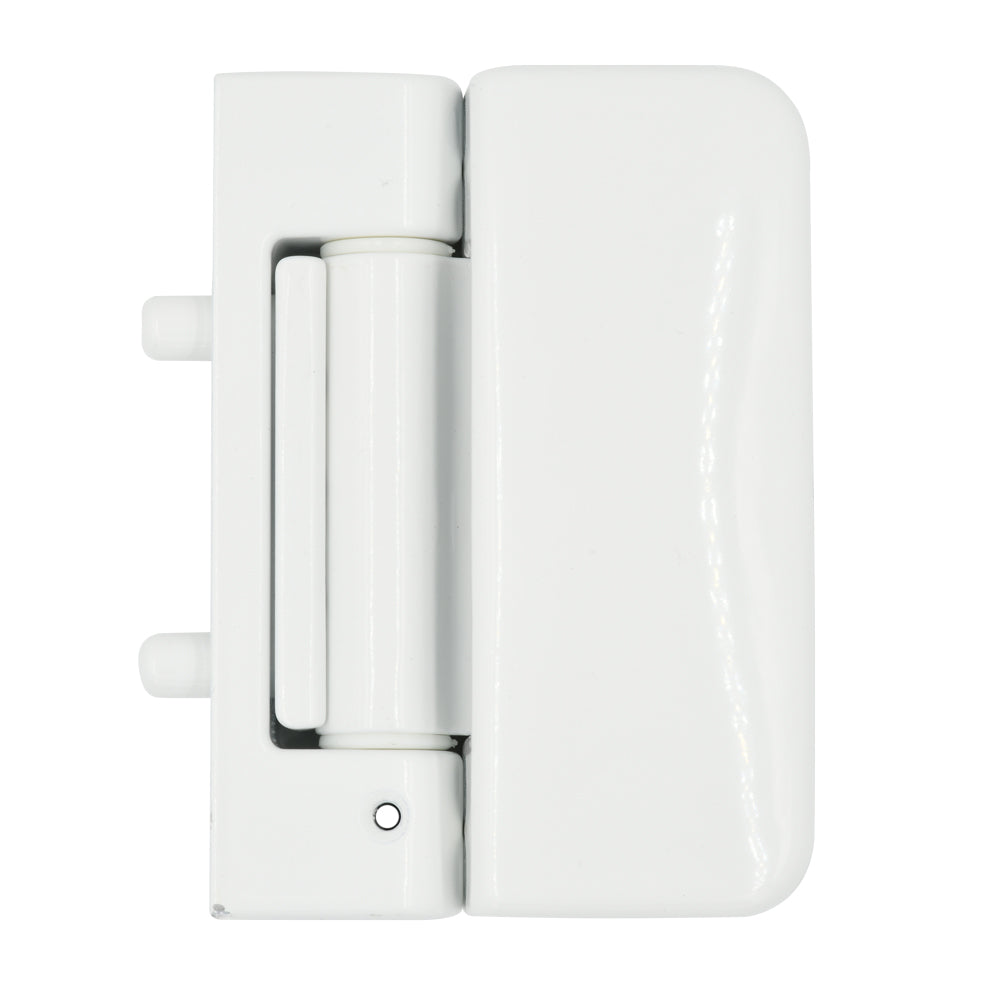

Evolution 3D Security Flag Hinge

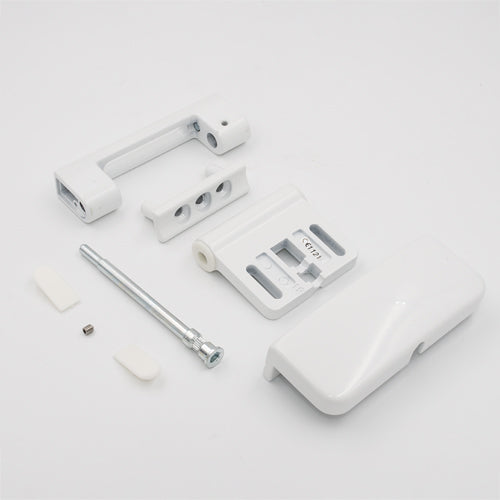

The Mila Evolution 3D Hinge is engineered for exceptional versatility and user-friendliness, making it suitable for both ovolo and chamfered profiles, with the option for infill pieces. Its three integral components—the frame part, sash part, and sash cover—ensure a flawless and professional appearance. With rigorous testing to the BS EN 1935 standard, this hinge promises dependable performance for single-axis applications.

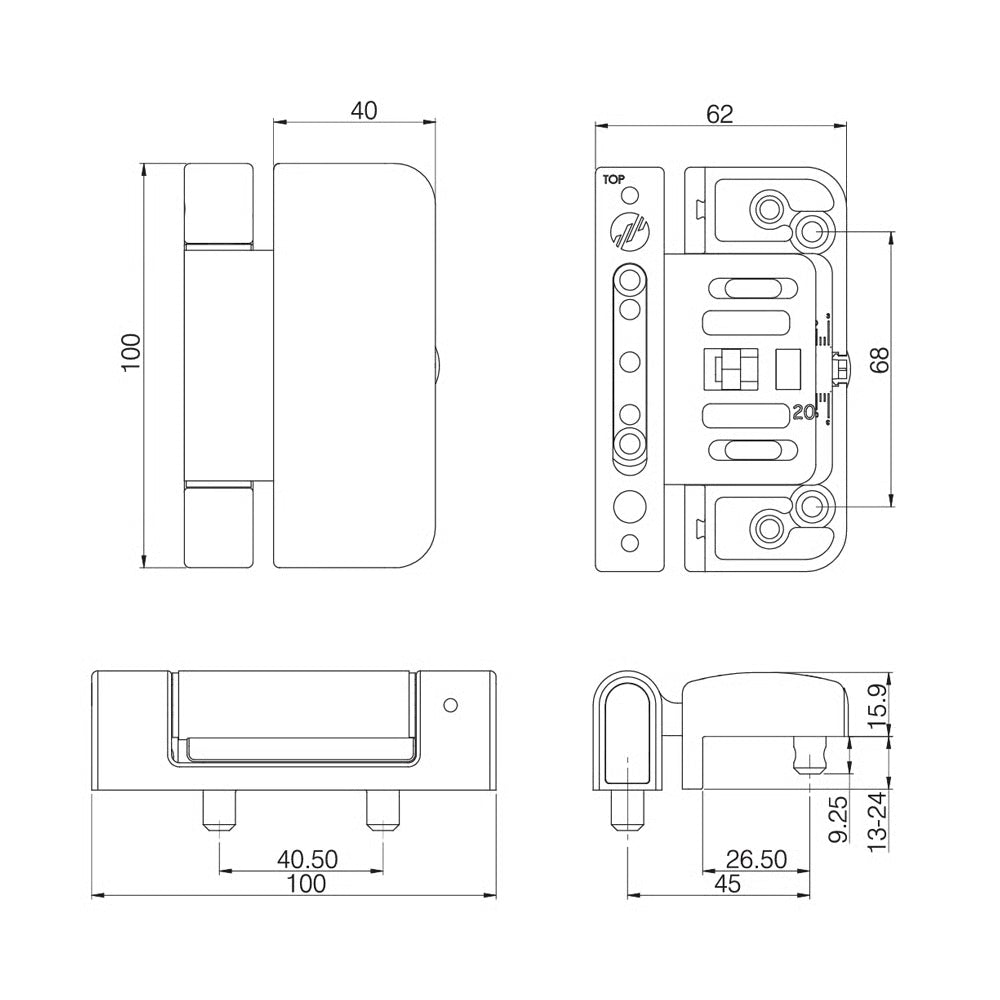

Measuring 100mm in height, 62mm in width, and featuring a flag width of 40mm, the Mila Evolution 3D Hinge merges robust functionality with an elegant design. It stands out as the perfect solution for those prioritizing enhanced security and durability, all wrapped in a contemporary aesthetic.

Product Specification

• Height: 100mm
• Width: 62mm
• Flag width: 40mm

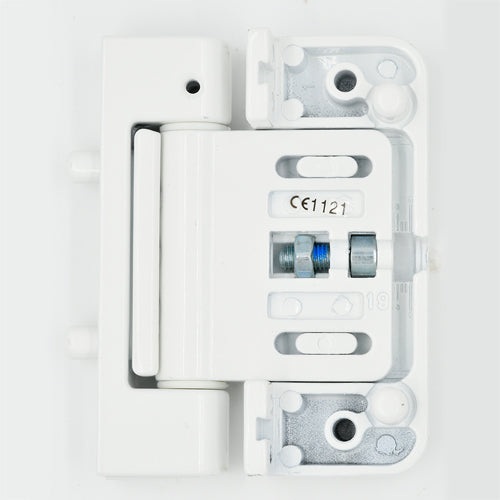

• 3-dimensional adjustment for effortless installation
• Lateral adjustment: +/- 4mm
• Vertical adjustment: +/- 4mm
• Compression adjustment: +/- 1mm
• Adjustments made with an Allen key, eliminating the need to dismount the door leaf
• Steel hinge pin for increased strength, secured with a security grub screw
• Weather resistant—tested for 480 hours in salt spray
• Complies with operational performance and enhanced security standards of PAS024
• Meets the police preferred specification of Secured by Design
• Cycle tested for 100,000 cycles, exceeding industry standards
• Certified to BS EN 1935

This hinge is not just a functional component; it represents a commitment to quality and security, making it an excellent choice for modern installations.
