Europa Latch Deadbolt 2 Rollers 2 Mushrooms Split Spindle Multipoint Door Lock

Product Overview: GU Europa Multipoint Door Lock

The GU Europa multipoint door lock is designed for enhanced security and functionality, featuring a robust configuration that includes 2 Rollers, 2 Mushrooms, 1 Deadbolt, and 1 Latch. This innovative locking system is part of the "SECURY" range, known for its reliability and advanced security features.

Key Features:

• Split Spindle Design: The lock incorporates a split spindle version, providing flexibility in operation while ensuring robust security through its roller and mushroom mechanisms.
• Versatile Operation: Available in both lift lever and split spindle nightlatch options, the GU Europa locks cater to various user preferences and door configurations.
• Easy Identification: GU locks are easily identifiable by the logo stamped on the faceplate, ensuring authenticity and quality.

Installation and Compatibility:

• Old vs. New Style: GU has transitioned from older lock designs to modern versions. If you're replacing an old lock, it's crucial to check for compatibility, especially regarding the gearbox and locking points.
• Adjustment Requirements: When replacing old locks with new ones, some adjustments may be necessary to align deadbolts and latches with existing keeps.

Locking Mechanism:

• Operation Steps:

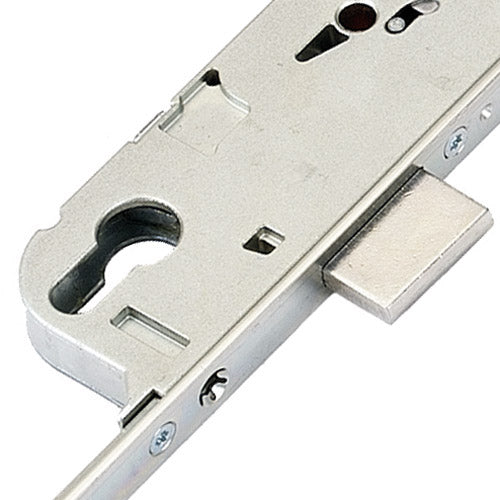

  • To Lock: Lift the handle to engage all locking points, then turn the key to secure the deadbolt.
  • To Unlock: Turn the key to disengage the lock, then push the handle down to retract the latch.

Additional Information:

• Gearbox Specifications: New style GU gearboxes are available in various backsets and operations, ensuring a wide range of options for different door types.

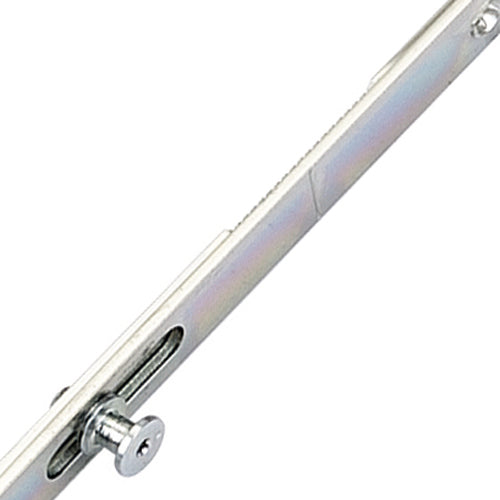

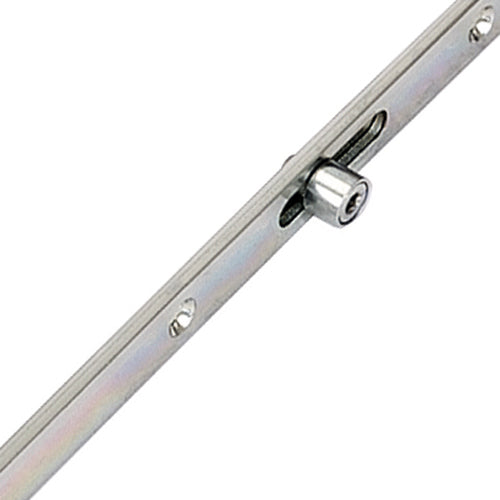

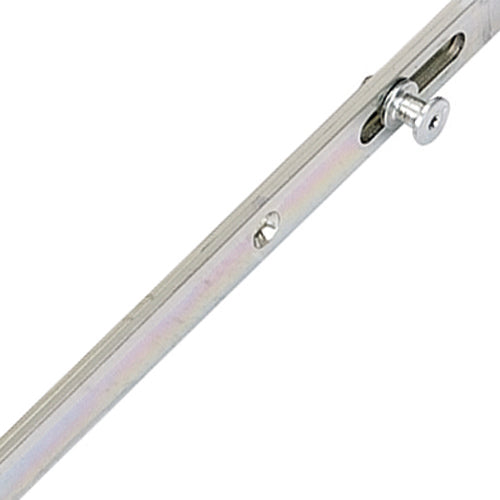

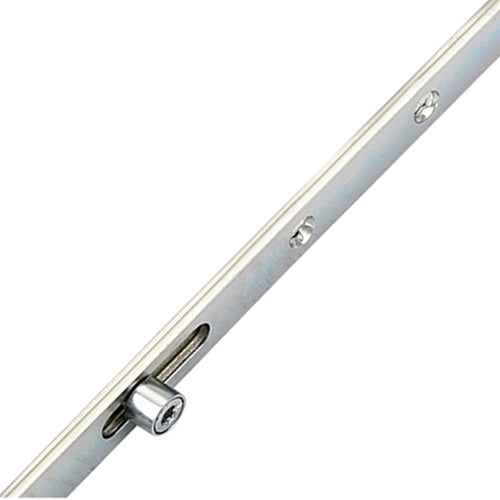

• Security Features: The GU-SECURY MR system enhances protection against forced entry, while rollers assist in compression and weather sealing.
• Accessories Available: A variety of associated products, including keeps, spindles, and handles, are available to complement the GU Europa multipoint door locks.

Maintenance Tips:

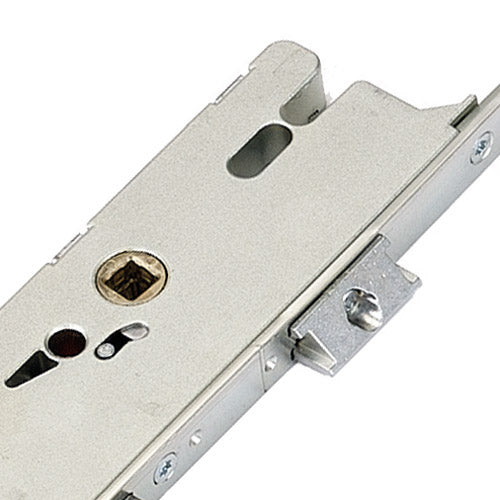

• Latch Reversal: For latch reversal, simply undo the screw, reverse the latch, and reinsert it. Use a flat-bladed screwdriver to assist in the process if needed.

Product Specification

• Manufacturer: GU
• Spindle Size: 8mm
• Rollers: 2
• Mushrooms: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed
• Distance Between Inner Locking: 670mm
• Distance Between Outer Locking: 1610mm
• Height: 2285mm
• Top Roller to Spindle: 279mm
• Bottom Roller to Spindle: 391mm
• Top Mushroom to Spindle: 749mm
• Bottom Mushroom to Spindle: 861mm
• Door Material: UPVC, Aluminium

This detailed product specification provides essential information for selecting and installing the GU Europa multipoint door lock, ensuring you have all the necessary measurements and options at your fingertips.
