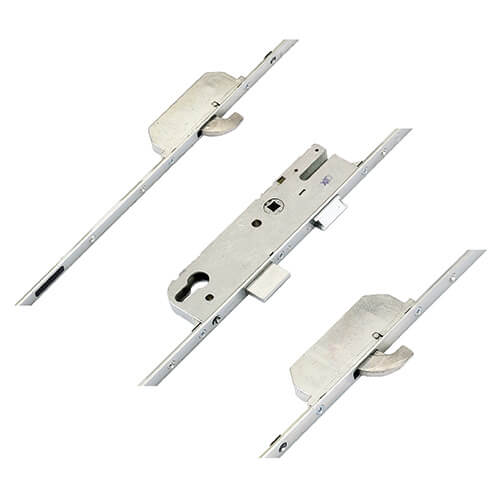

Europa Latch Deadbolt 2 Hooks Multipoint Door Lock - Fast Locking

Product Overview: GU Europa Plus Multipoint Door Lock

The GU Europa Plus multipoint door lock is designed for enhanced security and ease of use, featuring a robust configuration of 2 hooks, 1 deadbolt, and 1 latch. This innovative locking system is part of the GU "SECURY" range, specifically the fast-locking versions known as "Europa Plus."

Key Features:

• Fast Locking Mechanism: The Europa Plus lock allows for quick deadlocking of all locking points without the need to turn the key, providing convenience and security in one action.
• Unique Locking Operation: To engage the lock, simply lift the handle upwards. This action secures all locking points simultaneously. To unlock, turn the key, push down the handle to disengage the locks, and return the key to withdraw the latch.
• Identification: GU locks are easily identifiable by the logo stamped on the faceplate. Be aware that older doors may have the original style locks, which differ from the current models.
• Compatibility: The Europa Plus locks are available exclusively with a 35mm backset and do not feature the old style configuration. It's important to note that the new style gearboxes are not compatible with old style locks.

Technical Specifications:

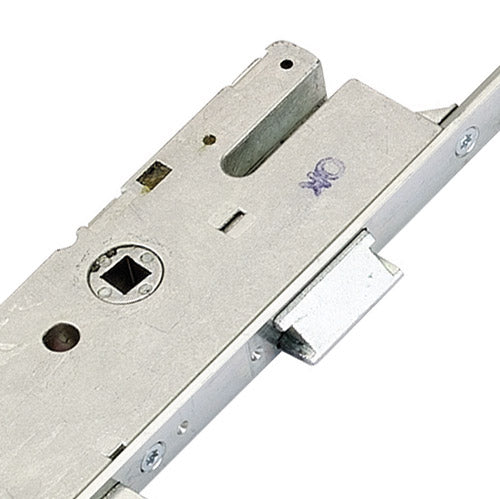

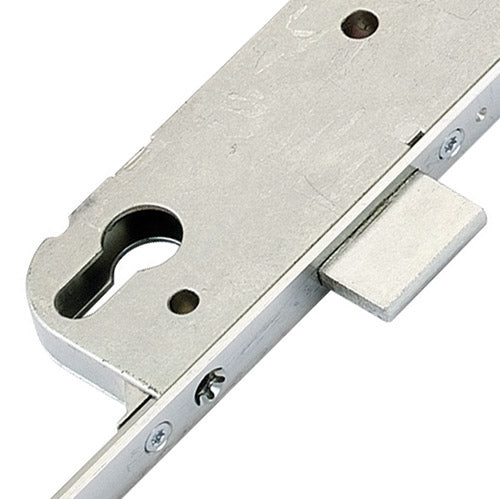

• Gearbox Dimensions: The GU multipoint lock gearboxes measure 191mm high (excluding fixing lugs) and are 16mm wide plus the backset. The latch is 32mm high, while the deadbolt measures 35mm high.
• Screw Fixation: Gearboxes are secured to their faceplates with three screws, with specific distances between them: 108mm from the top to the middle screw and 92mm from the middle to the bottom screw.

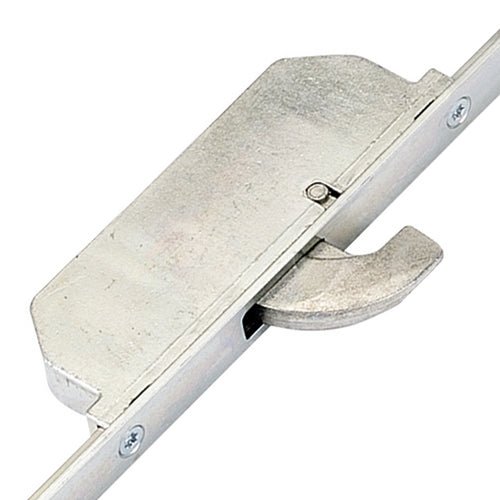

• Additional Locking Features: GU offers additional locking hooks (SH) and deadbolts (MR) that enhance security against forced entry. The hooks move upwards when thrown, while the deadbolts are chamfered to ensure a tighter fit against the door frame.

Operation Instructions:

• To Lock the Door:
  • Lift the handle upwards to engage and lock the locking points. No key is required.
• To Unlock the Door:
  • Turn the key to unlock the system.
  • Push the handle downwards to disengage the locking points.
  • Turn the key to retract the latch.

Product Specification

• Manufacturer: GU
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1228mm
• Height: 2285mm
• Top Hook to Spindle: 568mm
• Bottom Hook to Spindle: 660mm
• Door Material: UPVC, Aluminium, Timber, Composite

This detailed product specification provides essential information for selecting the right GU Europa Plus multipoint door lock for your needs. If you have any questions about measurements or compatibility, feel free to reach out for assistance!
