Europa Latch Deadbolt 2 Hooks 20mm Flat Faceplate Lift Lever Multipoint Door Lock

Product Overview: GU Europa Multipoint Door Lock

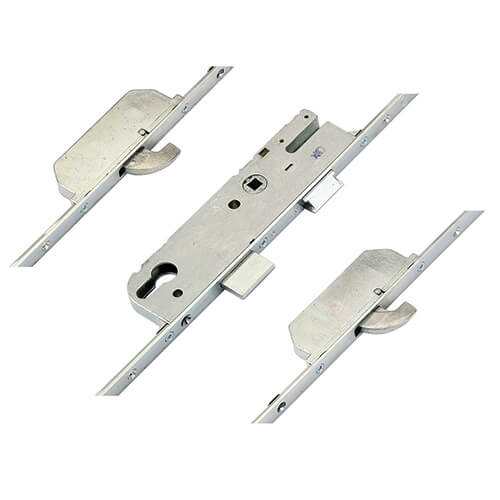

The GU Europa multipoint door lock is designed for security and reliability, featuring a robust configuration of 2 hooks, 1 deadbolt, and 1 latch. This lock is equipped with a 20mm flat faceplate and is specifically available in a 45mm backset, making it ideal for timber doors.

Key Features:

• SECURY Range: The GU multipoint door locks are part of the "SECURY" range, with the lever and split spindle operated versions branded as "Europa."
• Operation Types: Available in lift lever or split spindle nightlatch operation, ensuring versatility for various door types.
• Identification: GU locks are easily identifiable by the logo stamped on the faceplate. Older models may differ in style, so it's essential to check for compatibility when replacing locks.

Compatibility and Replacement:

GU has transitioned from older to newer lock styles over the past decade. If you have an old lock, you may be able to repair it with a replacement gearbox. However, for a complete replacement, the new version can be installed, though some adjustments to the deadbolt and latch keep may be necessary.

Locking Mechanism:

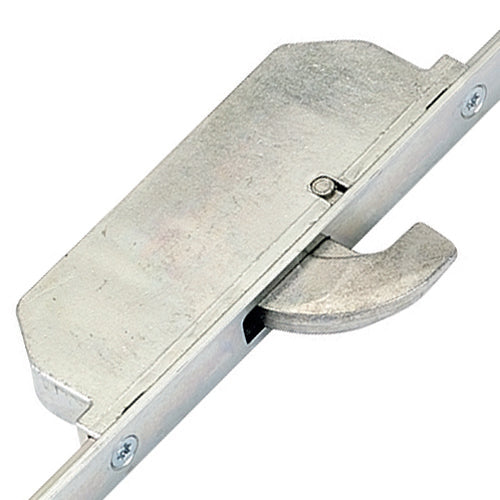

The GU Europa locks feature a combination of hooks, deadbolts, and rollers. Depending on the model, locks may have inbound or outbound rollers, which can affect measurements. Always verify product descriptions for accurate specifications.

Historical Context:

Introduced in 1979, the GU-SECURY multi-point locking system has evolved significantly, with innovations like the self-locking mechanism launched in 1996. The new style gearboxes offer a wide range of operations and backsets, ensuring compatibility with modern door designs.

Technical Specifications:

• Gearbox Dimensions: 191mm high (excluding fixing lugs) and backset + 16mm wide.

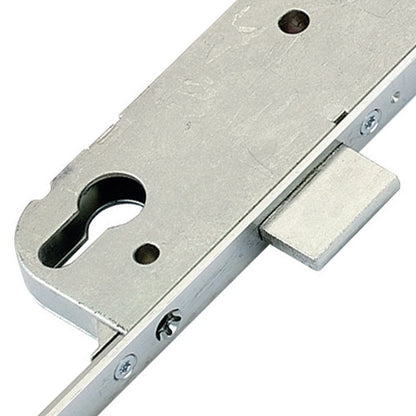

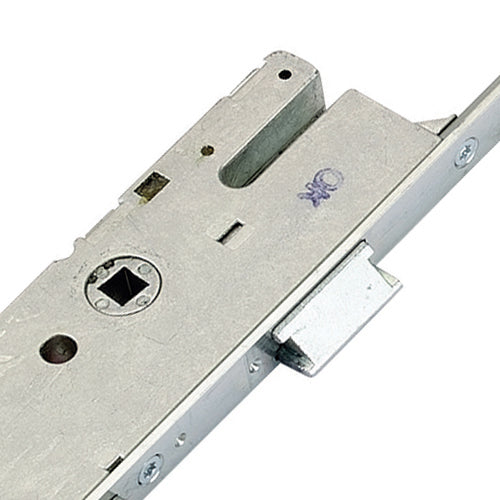

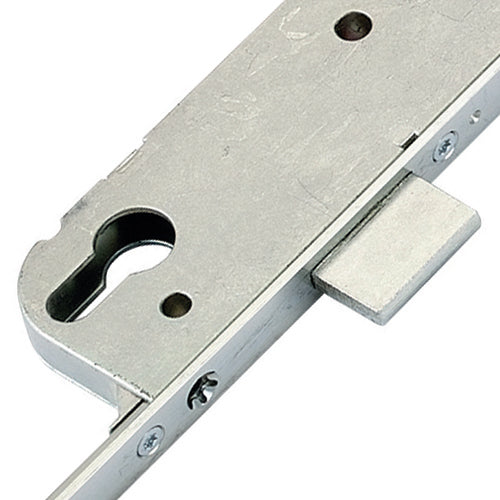

• Latch and Deadbolt Sizes: Latch is 32mm high, deadbolt is 35mm high, with a 54mm distance from the bottom of the latch to the top of the deadbolt.
• Screw Fixing: Gearboxes are secured with 3 screws, with specific distances between them for installation.

Operation Instructions:

To lock the door:

1. Lift the handle to engage the locking points.
2. Turn the key to secure the locking points and main deadbolt.

To unlock the door:

1. Turn the key to unlock.
2. Push the handle down to disengage the locking points and retract the latch.

Additional Products:

We offer a comprehensive range of associated products for GU Europa multipoint door locks, including keeps, spindles, handles, and accessories to enhance your door security.

Latch Reversal:

For latch reversal, insert a flat-bladed screwdriver into the rectangular slot above the spindle and pull out the latch simultaneously. Reverse the process to reinsert.

This detailed overview ensures you have all the necessary information to understand, install, and maintain your GU Europa multipoint door lock effectively.

Product Specification

• Manufacturer: GU
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1395mm
• Height: 2100mm
• Top Hook to Spindle: 735mm
• Bottom Hook to Spindle: 660mm
• Door Material: UPVC, Aluminium, Timber, Composite

Measuring Guidelines:

To ensure accurate measurements for your GU Europa multipoint door lock, follow these guidelines:

Backset Measurement:

1. Measure from the edge of the door to the center of the keyhole.
2. This distance is your backset measurement.

Centres PZ Measurement:

1. Measure from the center of the keyhole to the center of the handle spindle.
2. This distance is your PZ measurement.

Faceplate Measurement:

1. Measure the width and height of the existing faceplate.
2. Ensure to check the thickness to ensure compatibility with your door.

These measurements are crucial for selecting the correct components and ensuring a proper fit for your door lock system.
