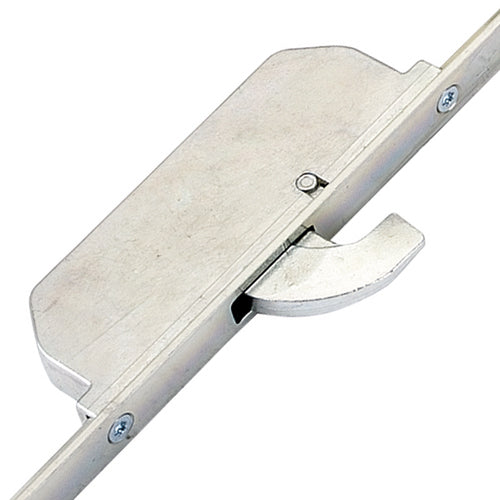

Europa Latch Deadbolt 2 Hooks 2 Inboard Rollers Split Spindle Multipoint Door Lock (top hook to spindle = 726mm)

Product Overview: GU Europa Multipoint Door Lock

The GU Europa multipoint door lock is designed for enhanced security and functionality, featuring a robust configuration that includes 2 Rollers, 2 Hooks, 1 Deadbolt, and 1 Latch. This lock is part of the "SECURY" range, known for its reliability and performance.

Key Features:

• Locking Mechanism: The lock operates with a combination of hooks and rollers, providing a secure closure while also ensuring compression against the door frame.

• Versatile Operation: Available in both lift lever and split spindle configurations, the GU Europa lock adapts to various door designs and user preferences.

• Identification: GU locks are easily identifiable by the logo stamped on the faceplate. For older doors, be aware that the lock may be an original style, which differs from the newer versions.

Installation and Compatibility:

• Replacement Options: If you have an old GU lock, it may be possible to repair it with a replacement gearbox. However, for a complete lock replacement, the new version can be installed with some adjustments to the deadbolt and latch keeps.
• Lock Alignment: Most locking points will align with existing keeps, but some adjustments may be necessary, especially if transitioning from older to newer models.

Technical Specifications:

• Gearbox Dimensions: New style GU gearboxes measure 191mm high (excluding fixing lugs) and vary in backset sizes (28mm, 35mm, 40mm, 45mm, and 55mm).
• Hook Types: The locks feature two types of hooks: the slim "flip hook" and the traditional "rhino hook," both designed for optimal security.

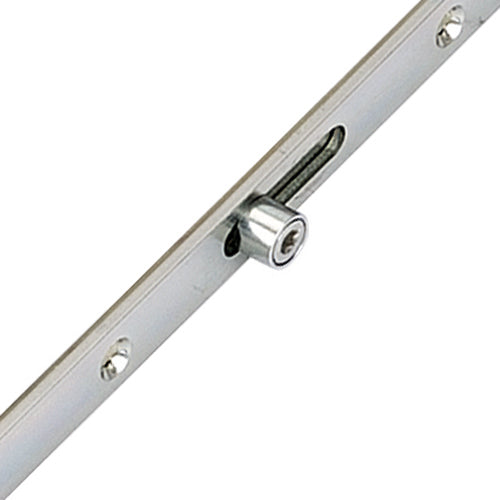

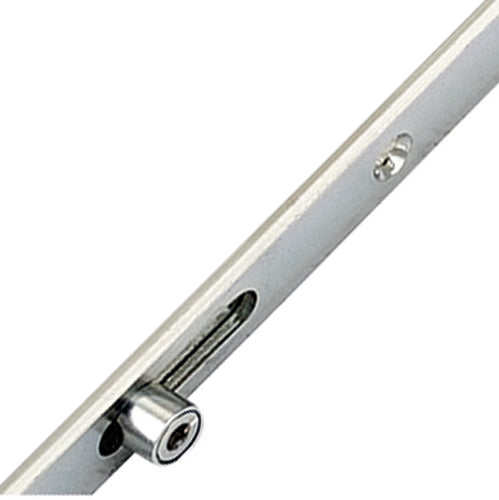

• Rollers: Rollers assist in compressing the door against the frame, enhancing weather sealing and preventing warping.

Operation Instructions:

• To Lock:
  • Lift the handle to engage the locking points.
  • Turn the key to secure the deadbolt and locking points.
• To Unlock:
  • Turn the key to unlock.
  • Push the handle down to disengage the locking points.

Additional Products:

We offer a comprehensive range of associated products for the GU Europa multipoint door locks, including keeps, spindles, handles, and various accessories to ensure complete functionality and security.

Latch and Night Latch Reversal:

• Latch Reversal: Depending on the manufacturing date, either undo the screws in the latch, remove, reverse, and reinsert.

• Night Latch Reversal: Insert a flat-bladed screwdriver into the slot above the spindle and pull out the latch while reversing and reinserting it.

This detailed overview ensures you have all the necessary information to understand, install, and operate the GU Europa multipoint door lock effectively.
