Europa Latch Deadbolt 2 Hooks 2 Inboard Rollers Lift Lever Multipoint Door Lock (top hook to spindle = 726mm)

Product Overview: GU Europa Multipoint Door Lock

The GU Europa multipoint door lock is designed for enhanced security and functionality, featuring a robust configuration that includes 2 Rollers, 2 Hooks, 1 Deadbolt, and 1 Latch. This lock is part of the GU "SECURY" range, known for its reliability and innovative design.

Key Features:

• Multipoint Locking System: The lock operates with multiple locking points, ensuring a secure fit against the door frame.
• Versatile Operation: Available in both lift lever and split spindle nightlatch options, catering to various user preferences.
• Easy Identification: GU locks are easily identifiable by the logo stamped on the faceplate, making it straightforward to confirm authenticity.
• Compatibility: While older GU locks may require specific replacement parts, the new style locks can often be retrofitted with minimal adjustments.

Installation and Adjustment:

When replacing an old GU lock with a new version, some adjustments may be necessary, particularly with the centre deadbolt and latch keep. It's advisable to update the keeps to accommodate the thicker deadbolts of the new locks, ensuring optimal performance and security.

Locking Mechanism:

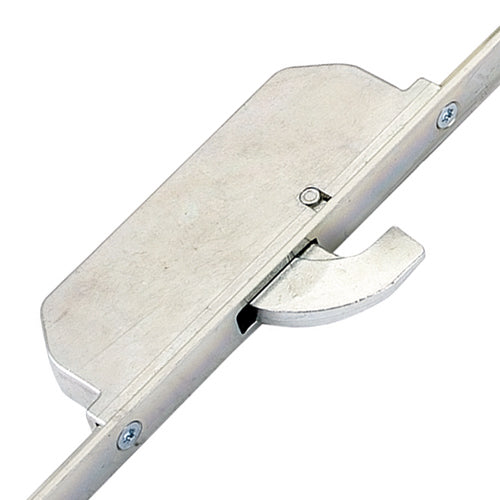

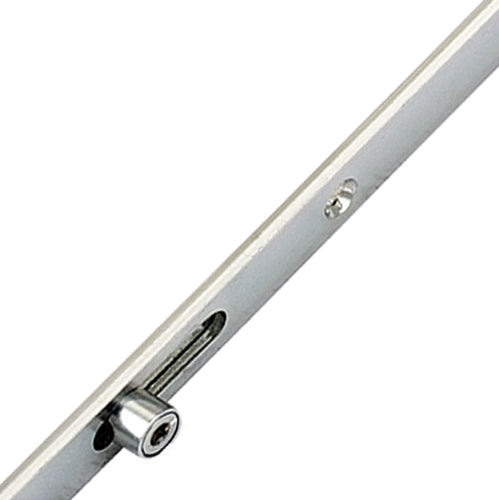

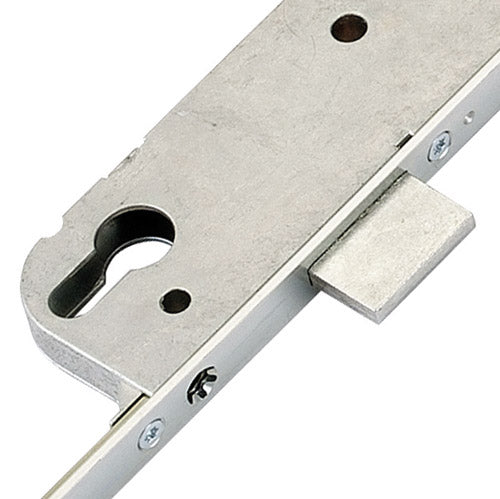

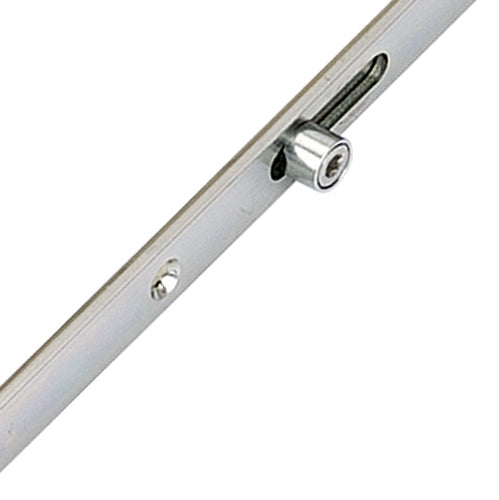

The GU Europa locks utilize a combination of hooks, deadbolts, and rollers. The rollers serve to compress the door against the frame, enhancing weather sealing and preventing warping.

Operation Instructions:

To lock the door:

1. Lift the handle to engage the locking points.
2. Turn the key to secure the deadbolt and locking points.

To unlock the door:

1. Turn the key to disengage the lock.
2. Push the handle down to retract the latch.

Latch Reversal:

For latch reversal, simply insert a flat-bladed screwdriver into the rectangular slot above the spindle and pull out the latch while reversing and reinserting it.

Additional Products:

We offer a comprehensive range of associated products for GU Europa multipoint door locks, including keeps, spindles, handles, and various accessories to enhance your locking system.

Conclusion:

The GU Europa multipoint door lock is a reliable choice for those seeking security and ease of use. With its innovative design and compatibility with various door types, it stands out as a top option in the market.

Product Specification

• Manufacturer: GU
• Spindle Size: 8mm
• Rollers: 2
• Hooks: 2
• Deadbolts: 1
• Latch: 1

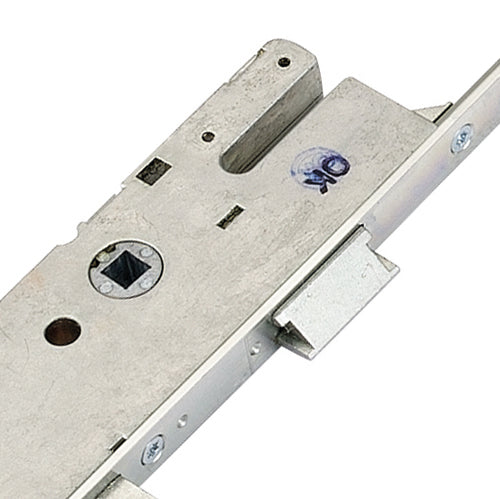

• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 699mm
• Distance Between Outer Locking: 1490mm
• Height: 2170mm
• Top Hook to Spindle: 726mm
• Bottom Hook to Spindle: 764mm
• Top Roller to Spindle: 344mm
• Bottom Roller to Spindle: 356mm
• Door Material: UPVC, Aluminium

Measuring Guidelines

To ensure accurate measurements for your GU Europa multipoint door lock, follow these guidelines:

Backset Measurement:
Measure from the edge of the door to the center of the keyhole. This distance is crucial for selecting the correct backset.

Centres PZ Measurement:
The PZ measurement is the distance from the center of the keyhole to the center of the handle hole. Use a ruler or tape measure for precision.

Faceplate Measurement:
To measure the faceplate, check the width and length of the existing faceplate on your door. This will help you select the right option from the drop-down menu.

By following these steps, you can ensure that your GU Europa multipoint door lock fits perfectly and operates smoothly.
