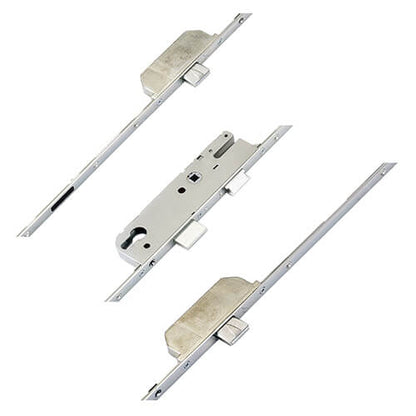

Europa Latch 3 Deadbolts Multipoint Door Lock - Fast Locking

Product Overview: GU Europa Plus Multipoint Door Lock

The GU Europa Plus multipoint door lock is designed for enhanced security, featuring 3 deadbolts and 1 latch for robust protection. This innovative locking system is part of the GU range known as "SECURY," with the fast locking versions branded as "Europa Plus."

Key Features:

• Fast Locking Mechanism: The Europa Plus lock deadlocks the locking points automatically without the need to turn the key, providing convenience and security.
• Unique Locking Operation: To engage the lock, simply lift the handle upwards. Unlocking requires turning the key, followed by pushing down the handle to disengage the locking points.
• Identification: GU locks are easily identifiable by the logo stamped on the faceplate. Note that older models may differ in style, so ensure compatibility when replacing locks.
• Versatile Options: The Europa range includes locks with hooks, deadbolts, or rollers, but the Europa Plus is exclusively available with a 35mm backset.

Historical Context:

Introduced in 1979 at the Deubau Trade Fair in Essen, Germany, the GU-SECURY multi-point locking system has evolved over the years, with significant advancements such as the first self-locking system launched in 1996.

Design Differences:

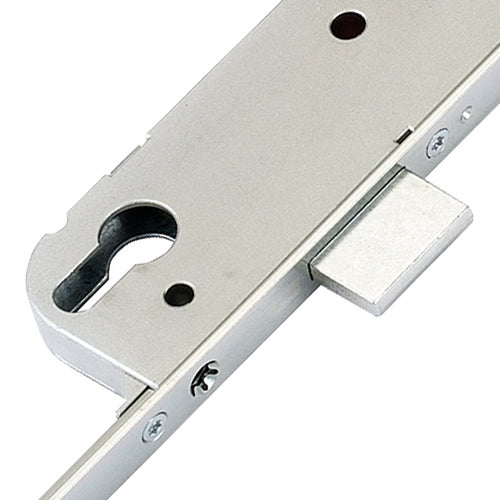

New style GU locks can be distinguished from older versions by the shape of the gearbox. The new style features a vertical groove, while the old style has a corner removed. Compatibility is crucial, as these gearboxes are not interchangeable.

Specifications:

• Dimensions: Gearboxes measure 191mm high (excluding fixing lugs) and are 16mm wide, with a latch height of 32mm and a deadbolt height of 35mm.
• Screw Fixation: Fixed to faceplates with 3 screws, the distance between screws is 108mm from top to middle and 92mm from middle to bottom.

Operation Instructions:

• Locking the Door:
  • Lift the handle upwards to engage and lock the locking points without turning the key.
• Unlocking the Door:
  • Turn the key to unlock.
  • Push the handle down to disengage the locking points.
  • Turn the key to retract the latch.

Additional Products:

We offer a comprehensive range of associated products for the GU Europa Plus multipoint door locks, including keeps, spindles, handles, and accessories to ensure complete functionality and security.

Latch Reversal:

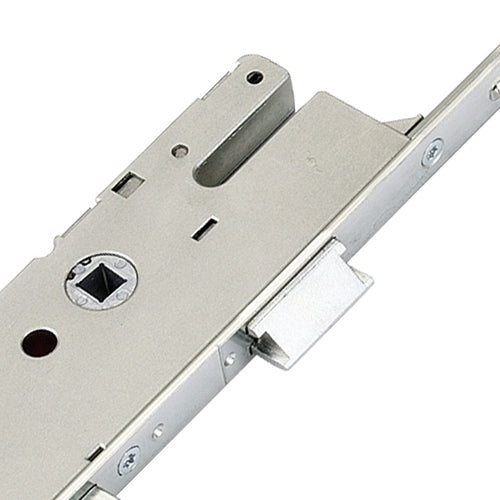

To reverse the latch, insert a flat-bladed screwdriver into the small rectangular slot above the spindle while pulling out the latch. Reverse the process to reinsert.

For any further inquiries or assistance, feel free to reach out!

Product Specification

• Manufacturer: GU
• Spindle Size: 8mm

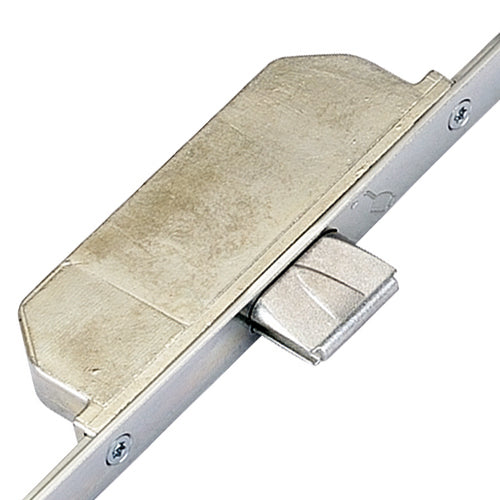

• Deadbolts: 3
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1228mm
• Height: 2285mm
• Top Deadbolt to Spindle: 568mm
• Bottom Deadbolt to Spindle: 660mm

For precise measurements, follow these guidelines:

Measuring the Backset:
To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the lock cylinder. This measurement is crucial for ensuring the lock fits properly.

Measuring the Centres (PZ):
To measure the centres, determine the distance from the center of the keyhole to the center of the handle hole. This is typically 92mm for the GU Europa Plus lock.

Measuring the Faceplate:
To measure the faceplate, measure the width and height of the existing faceplate on your door. Ensure to select the correct dimensions from the drop-down options to match your door's specifications.

Operation:
The operation of the lock can vary based on the specific model. Ensure to select the appropriate operation type from the drop-down menu based on your locking mechanism.

If you have any further questions or need assistance with measurements, feel free to reach out!
