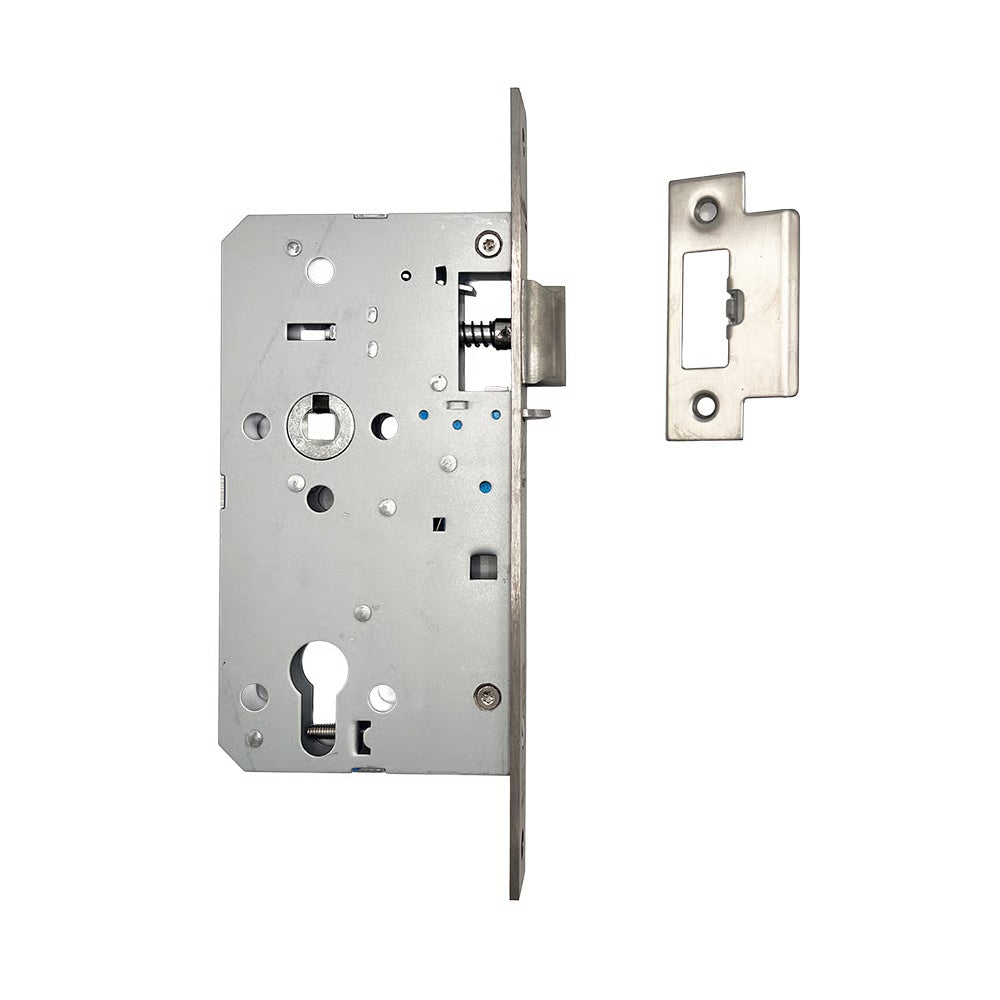

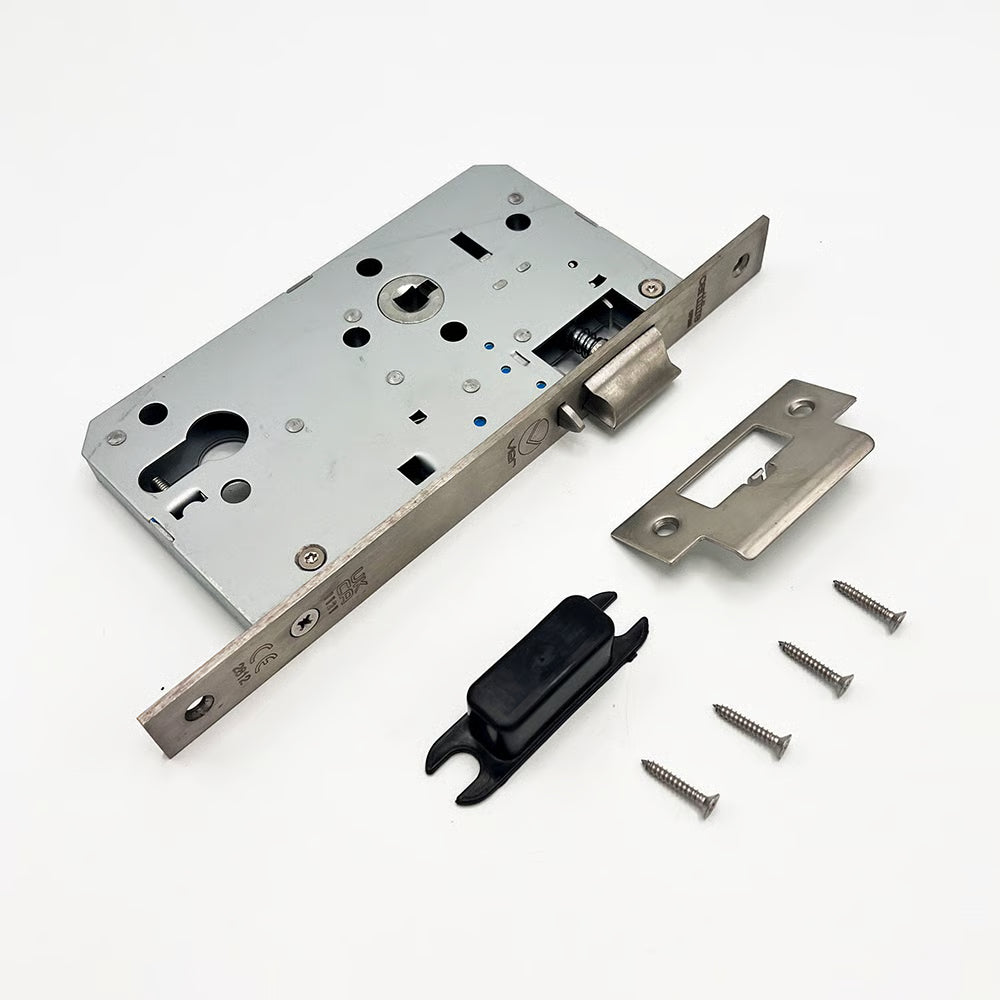

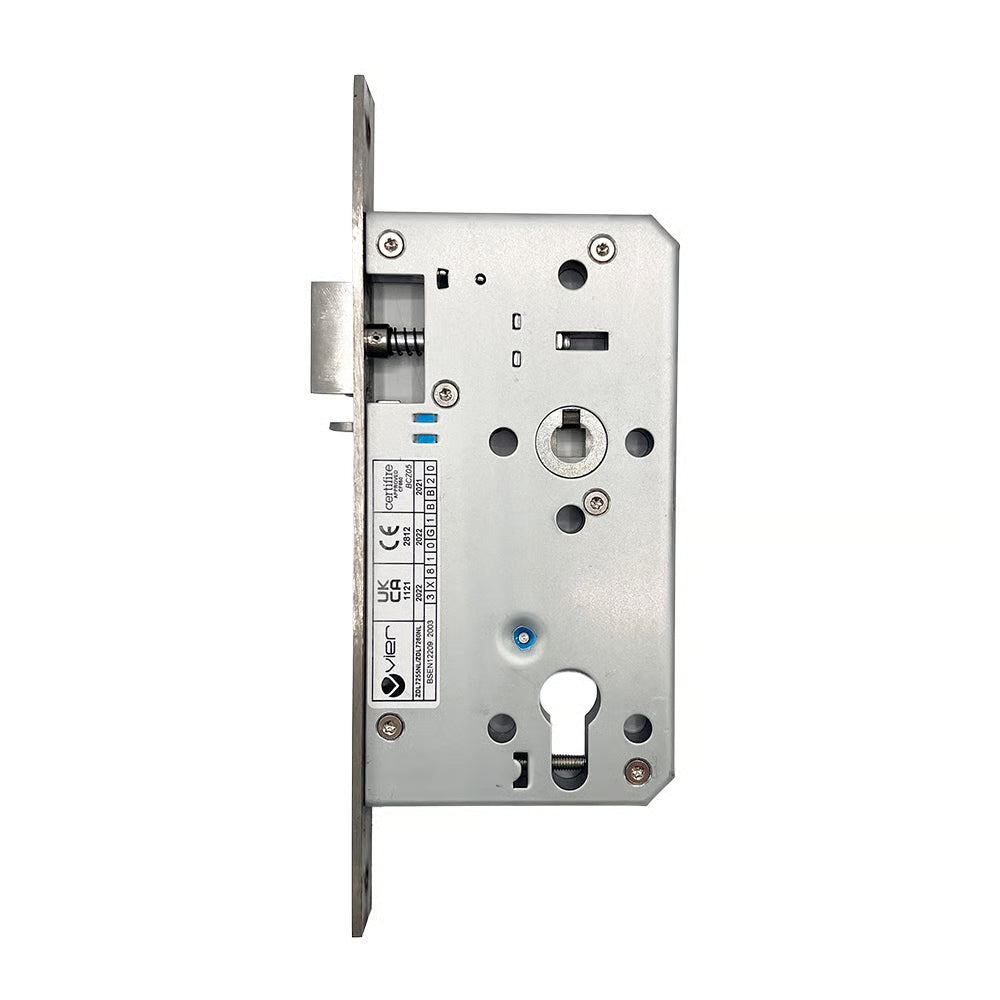

Euro Mortice Nightlatch Case 60mm Backset

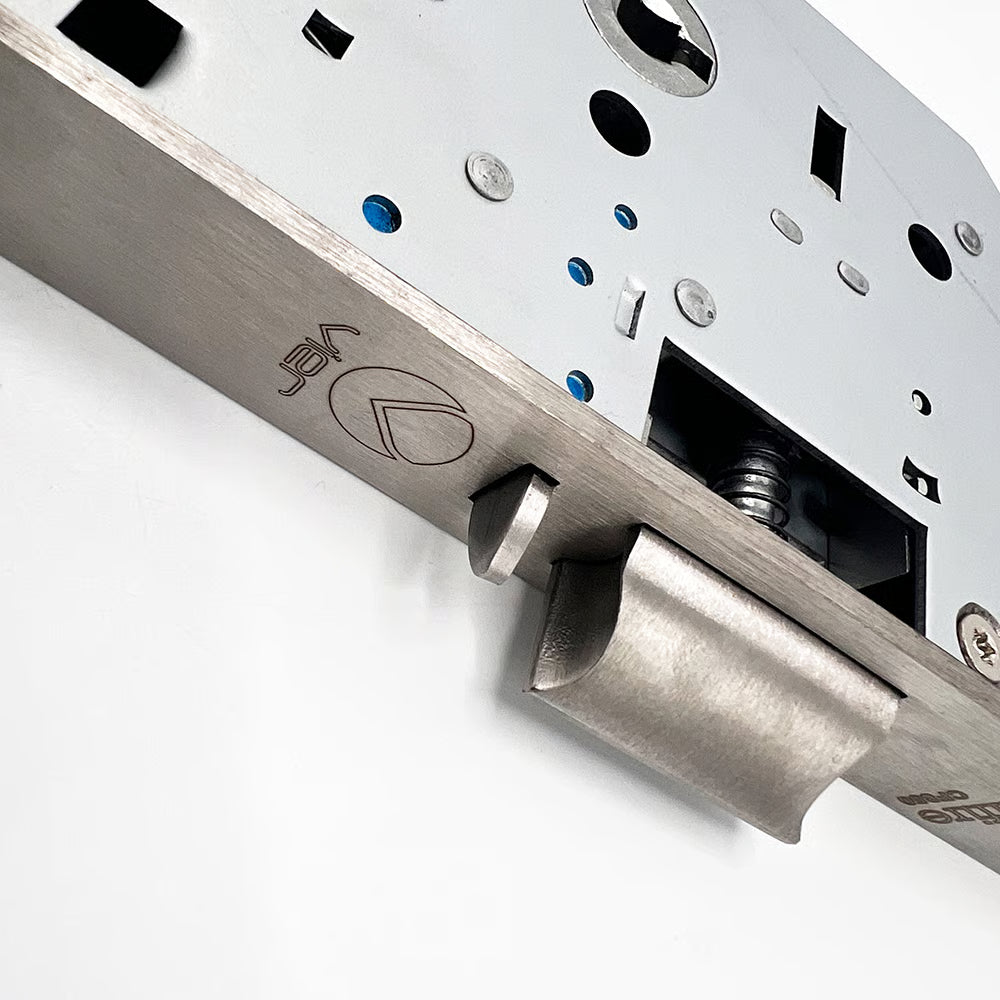

Zoo Vier Euro Mortice Latch Case, a reliable and versatile solution for your door locking needs. This DIN mortice latch case features euro profile operation and is available with satin stainless faceplate options, ensuring both functionality and aesthetic appeal. The reversible handing makes it adaptable for various installations, and it comes securely packaged in a box for easy handling.

Fitment & What to Check

Before installation, ensure the following:

• The backset is 60mm and the case width of 90mm fits the mortice cutout.

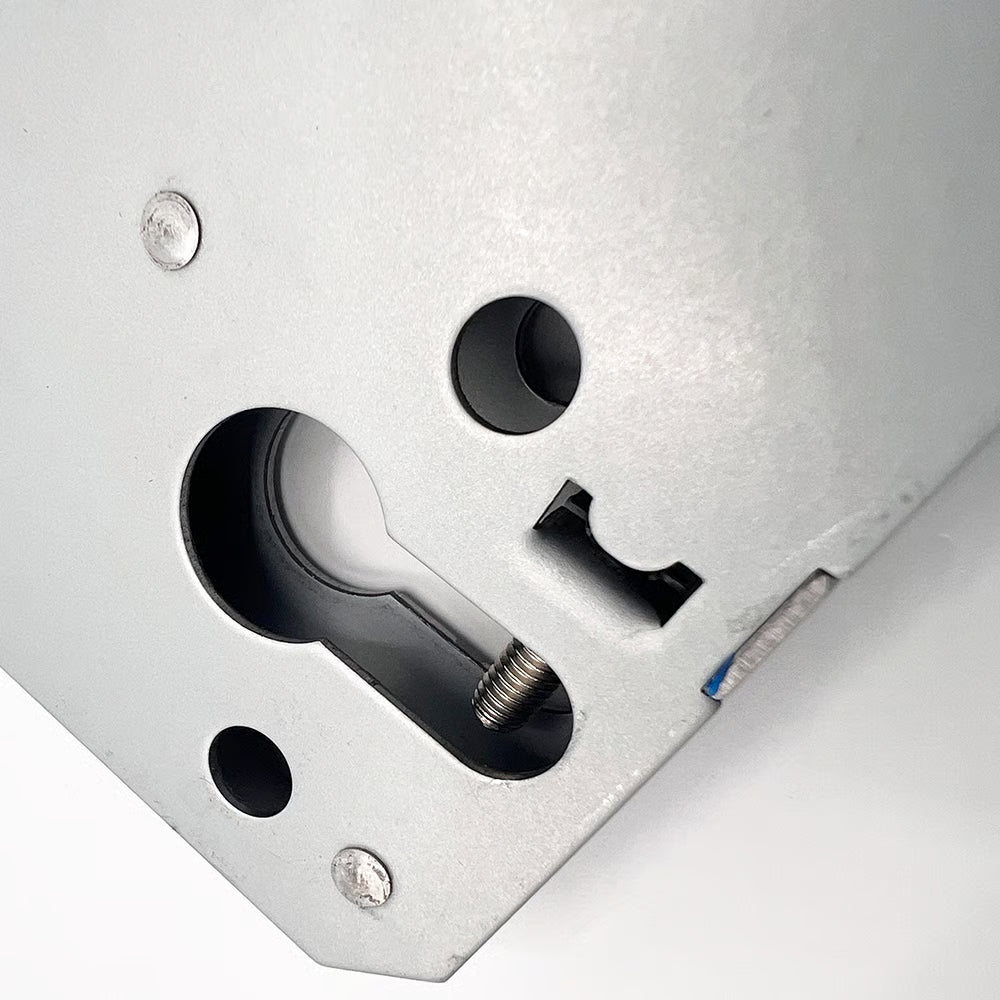

• Centres of 72mm align with the handle and euro cylinder spacing on the door.

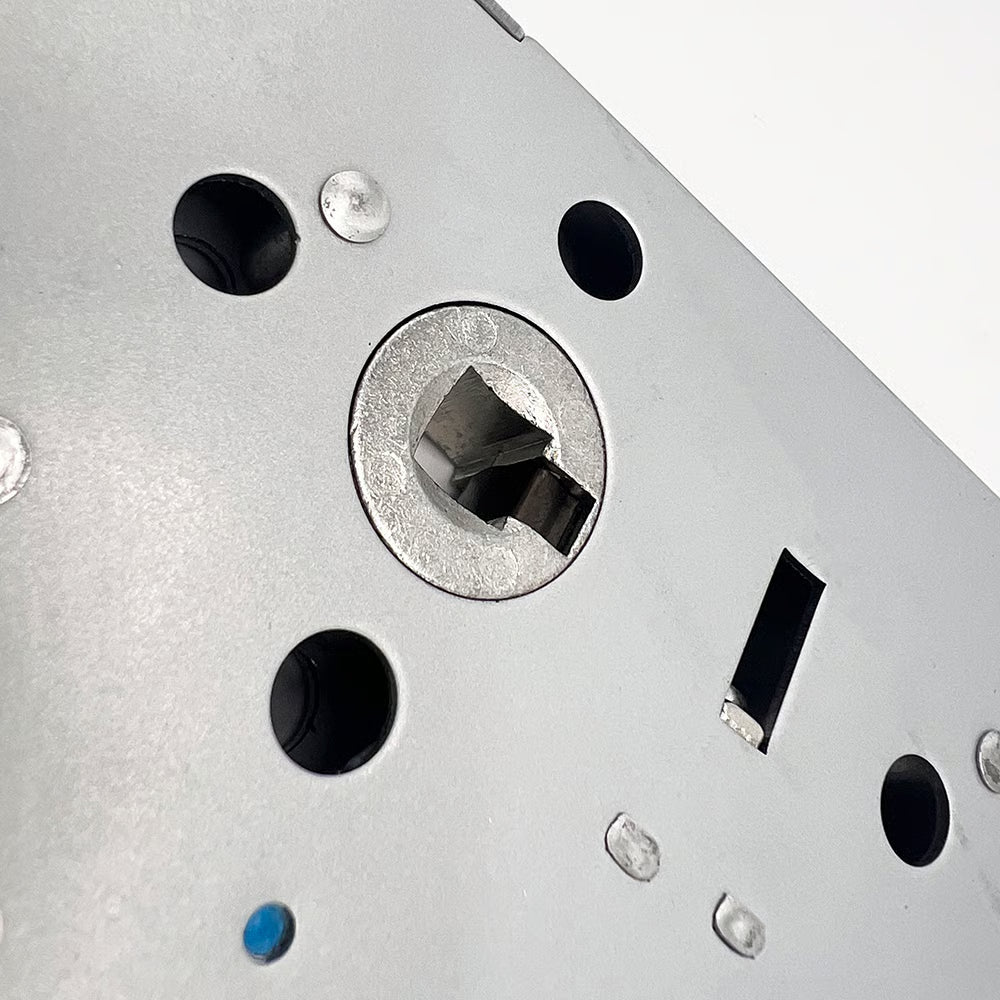

• The follower size is 8mm to match the spindle and lever furniture.

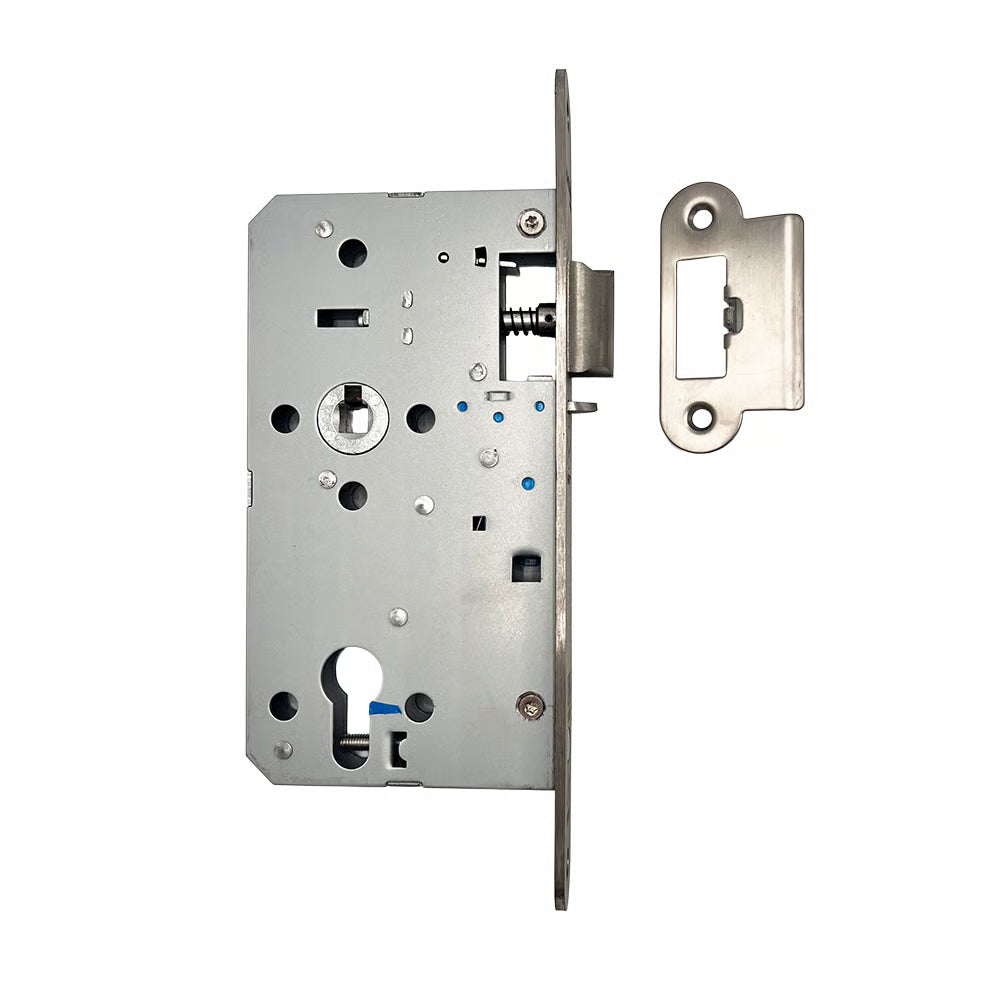

• The faceplate length of 235mm and width of 22mm suit the door edge and routing; choose between Flat or Radius faceplate as needed.

Common Ordering Mistakes

To avoid issues when ordering, be mindful of the following:

• Selecting the incorrect faceplate style—ensure you choose either Flat or Radius.
• Mismatching follower/spindle size when replacing existing furniture.
• Assuming centres or backset match without measuring the existing lock cutout.
• Overlooking faceplate length when replacing full-height faceplates on older doors.

Product Specification

• Manufacturer: Zoo
• Backset: 60mm
• Centres: 72mm
• Faceplate: Select from drop-down
• Follower: 8mm
• Handing: Reversible
• CE Marked: CE marked (Certificate AG5154)
• British Standard: Successfully tested in accordance with BS EN 12209:2003 Grade 3
• Case Width: 90mm
• Escutcheon Screw Centres: 38mm
• Faceplate Width: 22mm
• Faceplate Length: 235mm
• Finish: Satin Stainless
• Packaging: Boxed
• Type: Mortice Latch
• Fitting: Mortice

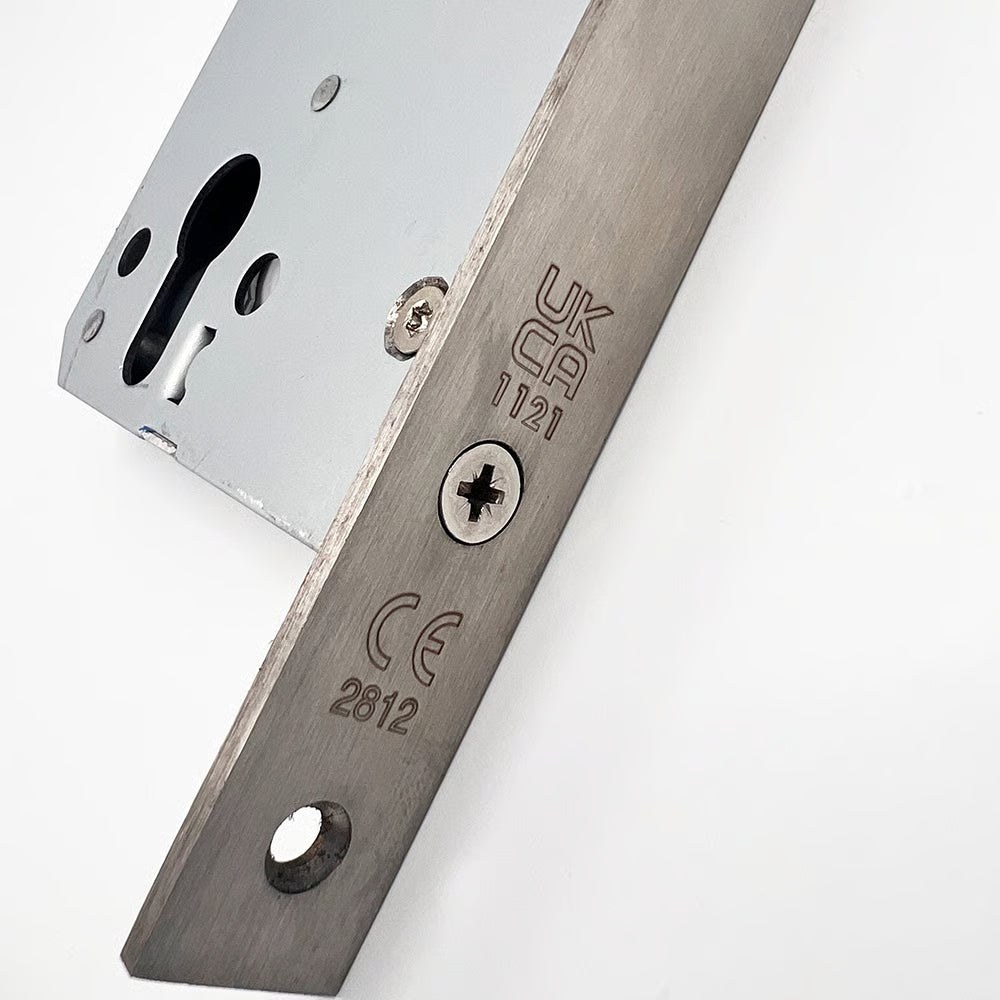

• UKCA Marked: UKCA marked (Certificate AG7883)
• Fire Tested: Suitable for use on 30, 60, 90, and 120 minute timber fire doors, and 30, 60, 90, 120, and 240 minute steel fire doors

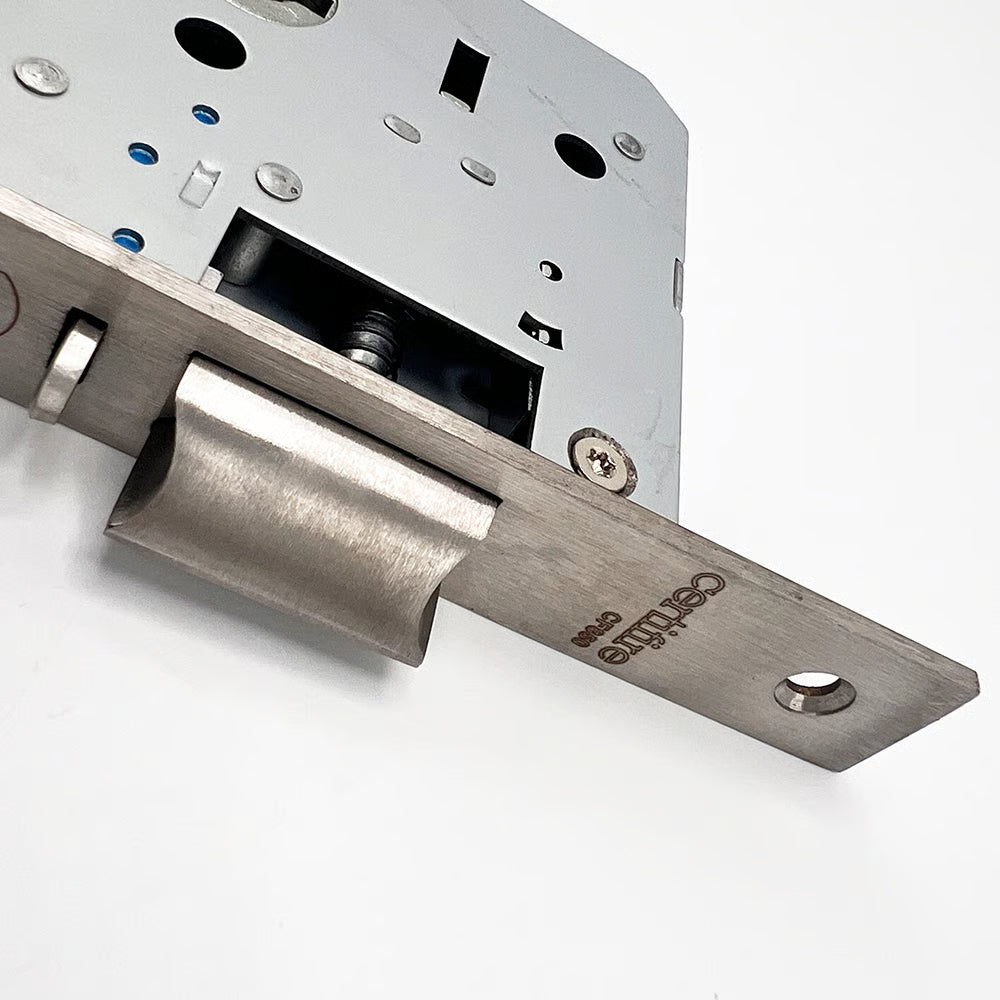

• Certifire Approved: CERTIFIRE approved (Certificate CF850)

This comprehensive overview ensures you have all the necessary information to make an informed decision about the Zoo Vier Euro Mortice Latch Case.
