Euro Deadbolt

Product Information

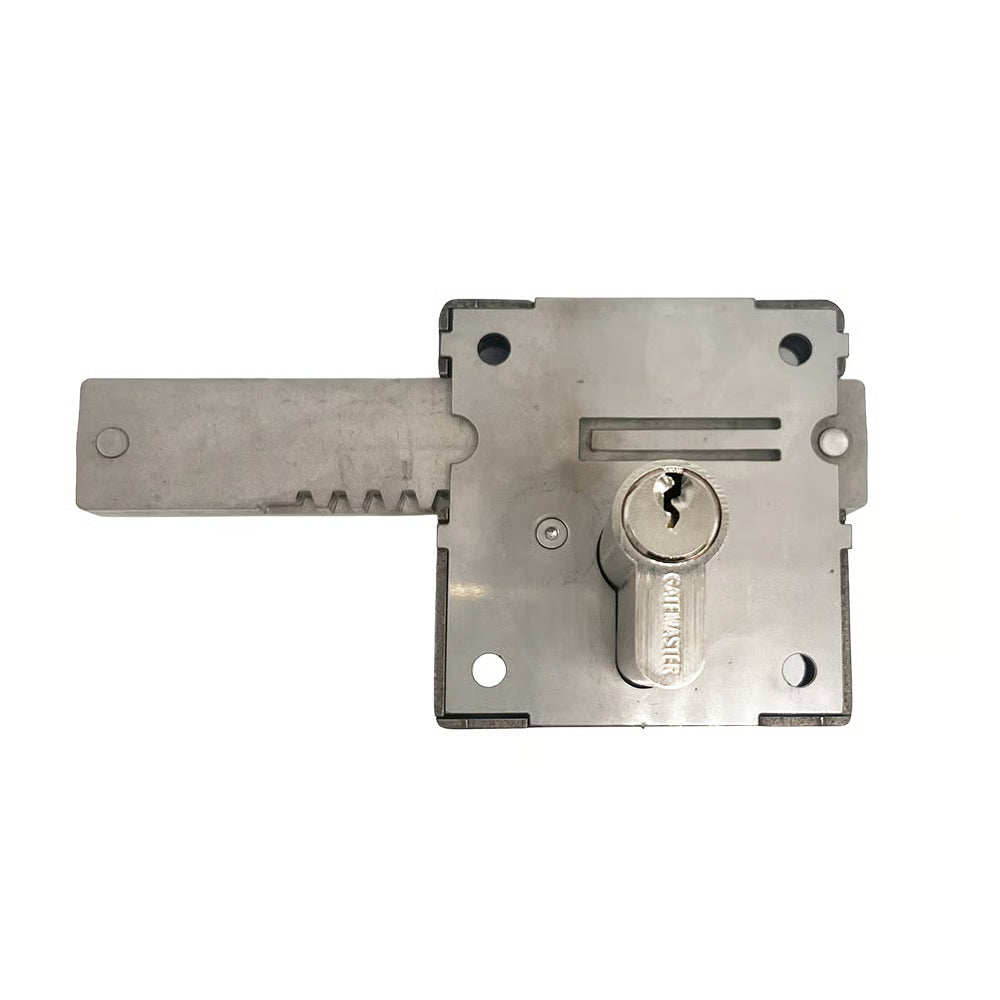

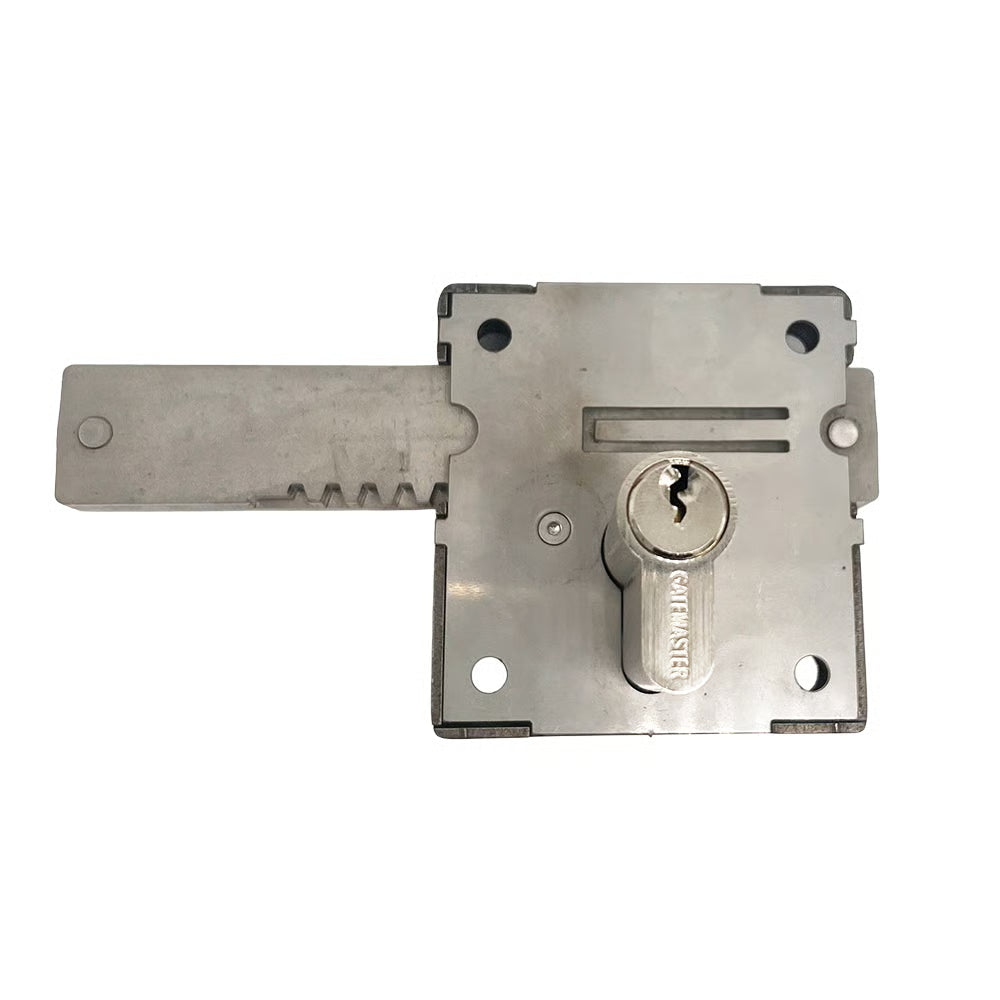

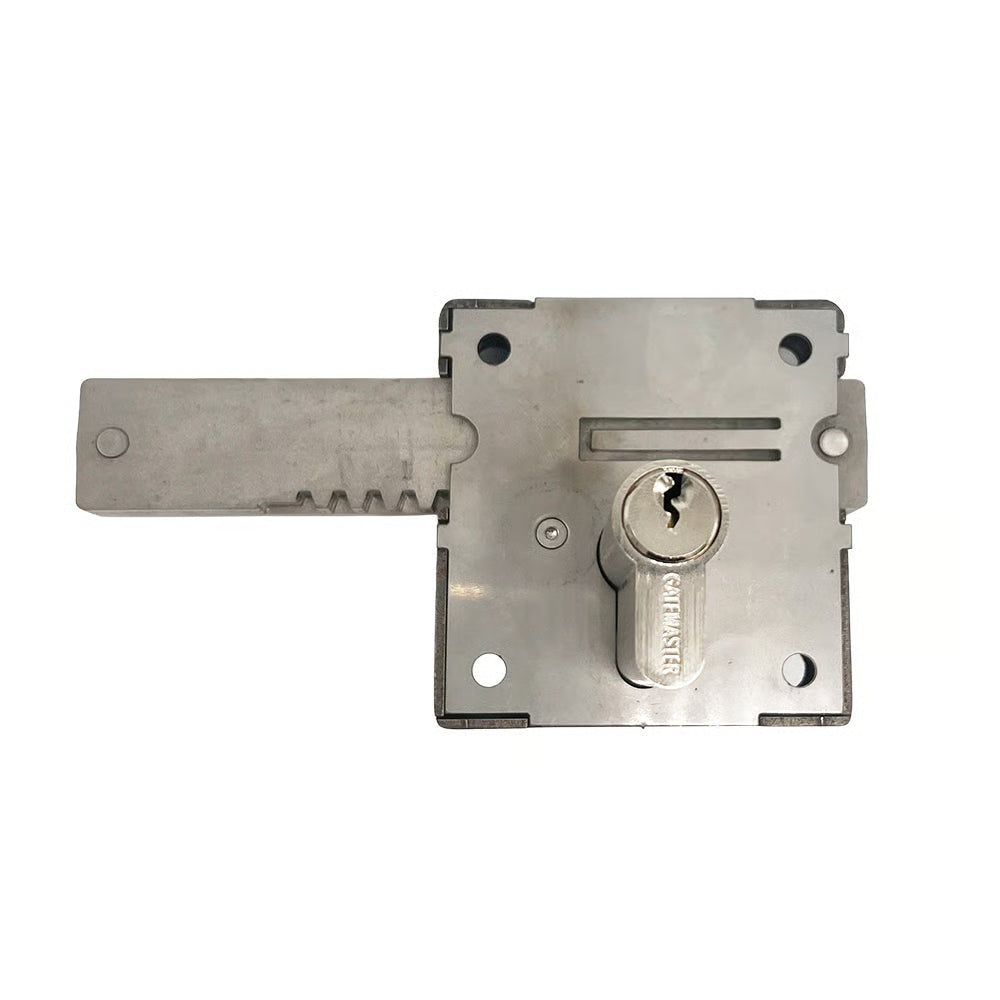

Introducing the Gatemaster locking euro profile cylinder deadbolt lock, designed for exceptional security and versatility. This robust deadbolt features a strong mechanism that extends 53mm with a single turn of the key, making it ideal for wooden gates that frequently expand and contract due to weather changes. Additionally, it is suitable for metal gates requiring a long throw lock. Choose between two versions: one with a Euro cylinder that projects 24mm from the back of the lock for thinner gates (GLB) and another with a Euro cylinder that projects 60mm for thicker gates (SIG02GLB).

Product Specification

• Height: 80mm
• Width: 80mm
• Thickness: 17mm
• Bolt Centres:
  • Horizontal: 56mm
  • Vertical: 61mm
• Backset: 39mm
• Bolt Projection: 67mm
• Bolt Fix: Non Handed
• Supplied With:
  • Either a 30/30 Euro double cog cylinder (26mm projection)
  • Or a 30/65 Euro double cog cylinder (60mm projection)
• Strikeplate: Included
• Keys: 3 keys provided
• Fixings: Not supplied
• Lockplate: Supplied separately
• Quantity: Supplied in singles
• Durability: Manufactured from stainless steel to withstand all weather conditions

This lock combines strength and reliability, ensuring your gates are secure and functional year-round.
