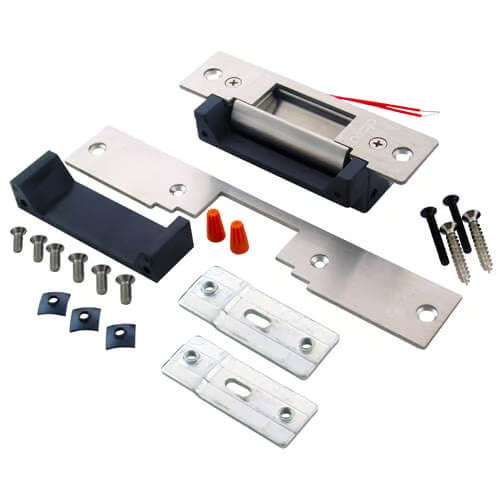

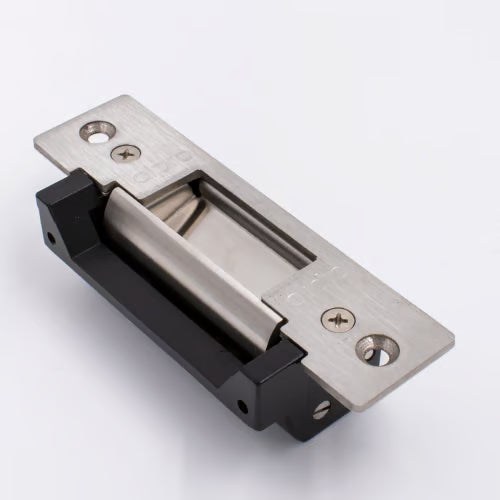

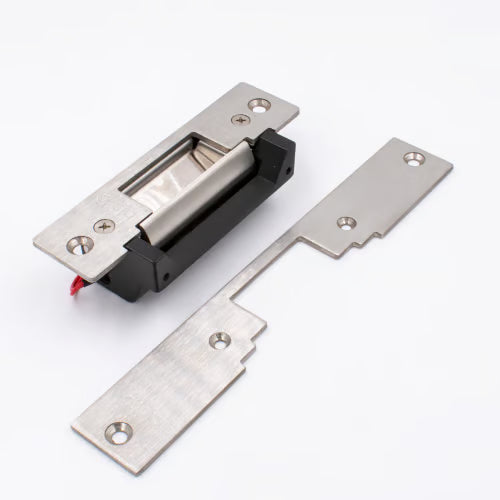

The EL900 electric release is designed for versatility and ease of installation, making it an ideal choice for both residential and commercial applications. It comes equipped with both long (200mm separate) and short faceplates (124mm fitted), along with a 25mm extension lip. This product is available in both fail safe and fail secure configurations, allowing for on-site conversion based on your specific needs.
Key Features
Type: Mortice
Style: ANSI
Jaw: Non-adjustable
Jaw Dimensions:
Height: 124mm
Width: 42mm
Depth: 31mm
Field Reversible: Yes (Fail safe monitored)
Current Consumption:
300mA at 12V DC
150mA at 24V DC
Holding Force: 1380kg
Latch Accommodation: 13mm (including a 3mm air gap)
Compatibility: Suitable for both Aluminium and Timber frames
