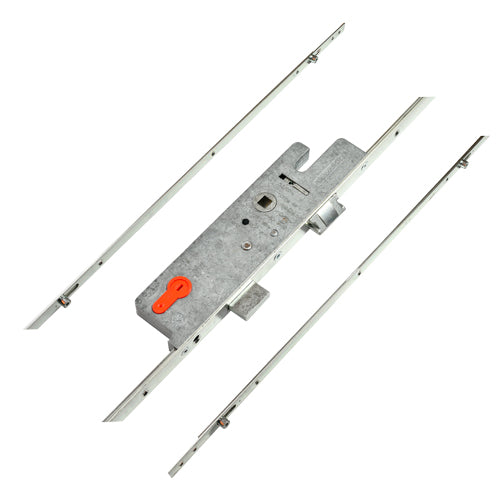

Introducing the TSS Multipoint Door Lock – a robust and versatile solution for your security needs. This lock features:

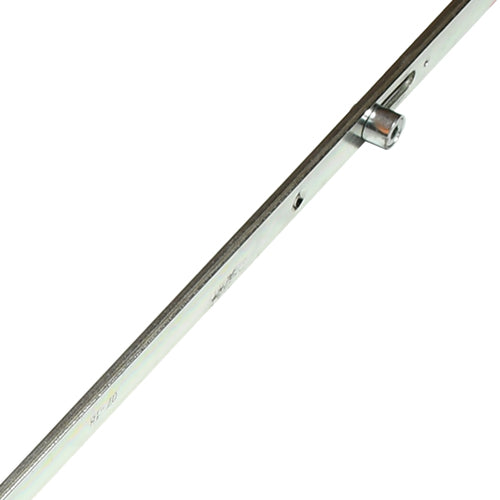

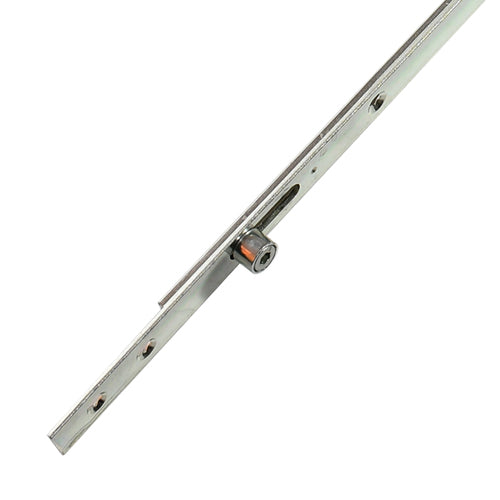

4 Rollers

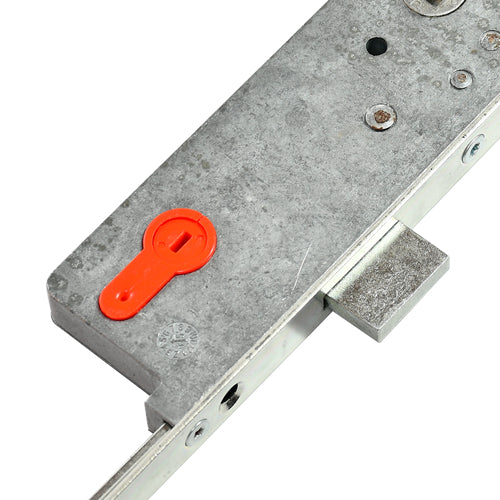

1 Deadbolt
1 Latch
Designed for easy retrofitting, this economy 4 roller multipoint door lock is available with a 35mm backset, making it an ideal choice for various door types.
Key Features
Key Wind Function: Effortlessly secure your door with a simple turn of the key.

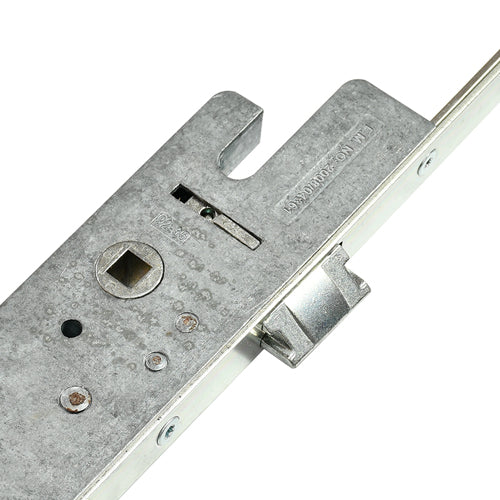

Compact Gearbox: At 195mm high, the gearbox is engineered for compatibility with most leading brands, ensuring a seamless replacement process.
Faceplate: The 1800mm long faceplate minimizes the need for cutting, saving you valuable installation time.
Lift Lever Option: Available in both 28mm and 35mm backsets (part numbers ECO4R28 and ECO4R35).
Operation Instructions
To Lock the Door:
Close the door to automatically engage the latch.
Turn the key to throw and engage the locking points.
To Unlock the Door:
Turn the key to "unwind" the locking points.
A further quarter turn will retract the latch.
Latch Reversal Instructions
Locate the rectangular cut-out on the gearbox and find the small pin.
Align the pin with the hole on the opposite side of the lock case by pushing the latch halfway into the case.
Use a pin punch or small screwdriver to push the pin out.
Remove the latch, reverse it, and re-insert it.
Re-insert the pin to secure the latch in place.
Compatibility
This lock is suitable for both UPVC and aluminium doors, providing flexibility for various installations.
Product Specifications
Manufacturer: TSS
Backset: Select from drop-down
Centres PZ: 92mm
Faceplate: Select from drop-down
Spindle Size: 8mm
Main Gearbox: Latch & deadbolt
Spindle: Single 8mm
Handing: Non-handed
Distance Between Inner Locking: 665mm
Distance Between Outer Locking: 1605mm
Height: 1800mm
Top Roller to Spindle: 745mm
Bottom Roller to Spindle: 860mm
Door Material: UPVC, Aluminium
