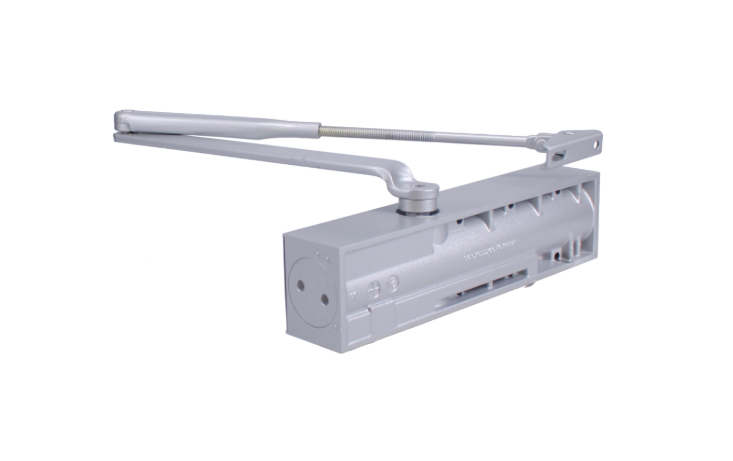

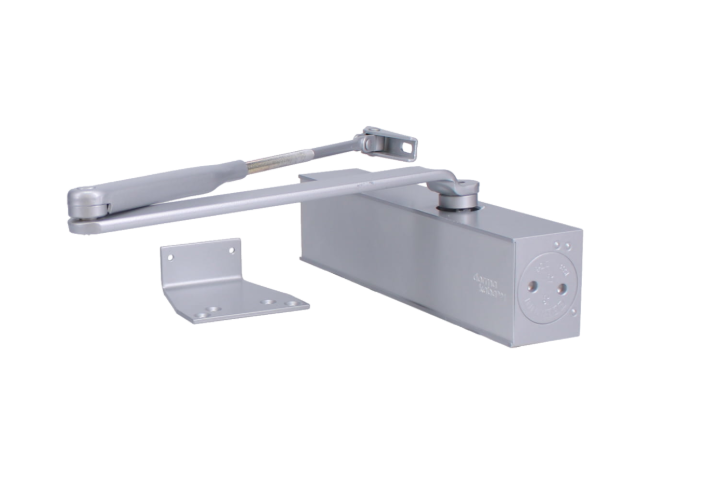

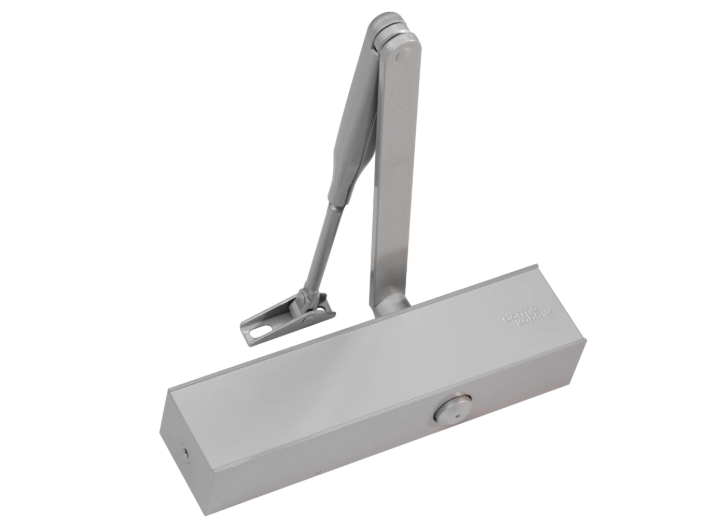

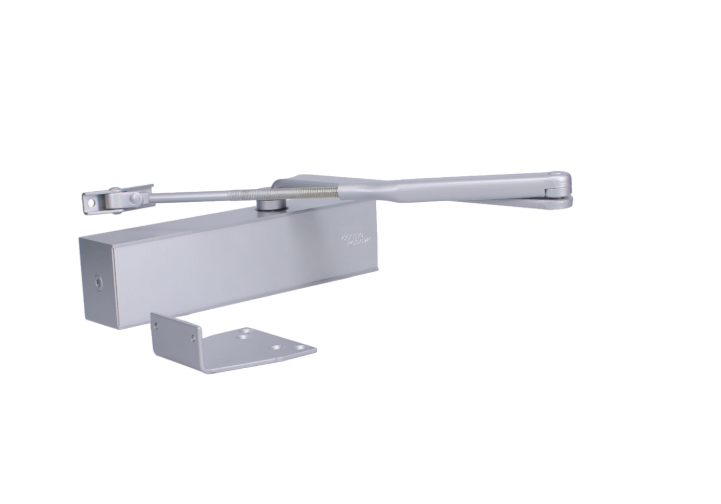

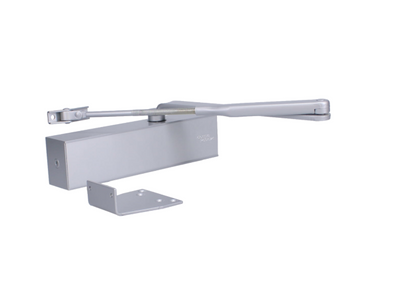

DORMAKABA TS83SE Size 3-6 Fire Rated Overhead Door Closer

The DORMAKABA TS83SE Size 3-6 Overhead Door Closer is an exceptional choice for ensuring reliable door control in various commercial and public access settings. Its scissor arm design allows for seamless operation, making it ideal for busy environments where smooth and controlled closing is essential.

With adjustable power settings, closing speed, and latch action, the TS83SE can be customized to meet specific door requirements. This adaptability ensures that each installation provides optimal performance tailored to the unique demands of the space.

One of the standout features of this model is dormakaba’s innovative 'thinking' backcheck, which safeguards both the door and surrounding structures from potential damage caused by abrupt openings. Additionally, the delayed action feature enhances accessibility, making it a perfect fit for environments that require ease of access.

The TS83SE is versatile enough to accommodate both single and double-leaf doors, and its non-handed design allows for flexible installation options on door, frame, or lintel. It has been rigorously tested to meet BS EN1154 standards and holds CERTIFIRE approval CF 117, confirming its suitability for use on timber (FD120) and metal (FD240) fire doors when installed correctly.

Specifications:

• Finish: Silver

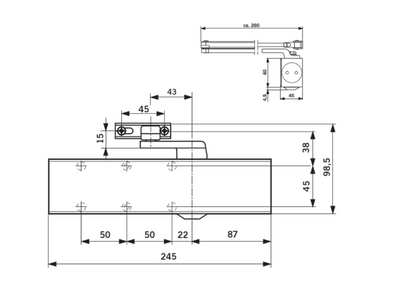

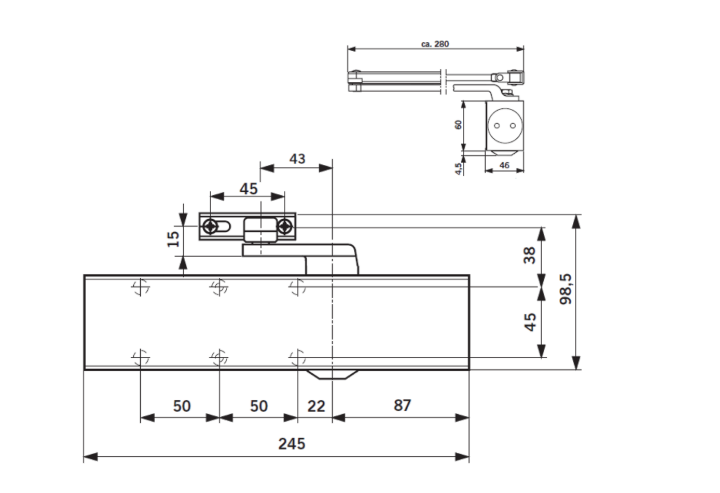

• Size:
  • Height: 46mm
  • Width: 60mm
  • Depth: 46mm
• Max Door Weight: 120Kg
• Max Door Width: 1400mm
• Strength Size: 3 To 6

Features:

• Adjustable Latch Action: Yes
• Backcheck: Yes
• Handed: Reversible
• Application: Fig 1, Fig 61 & Fig 66
• Pack Quantity: 1

This door closer not only meets rigorous safety standards but also enhances the functionality and accessibility of your doors, making it a reliable choice for any installation.
