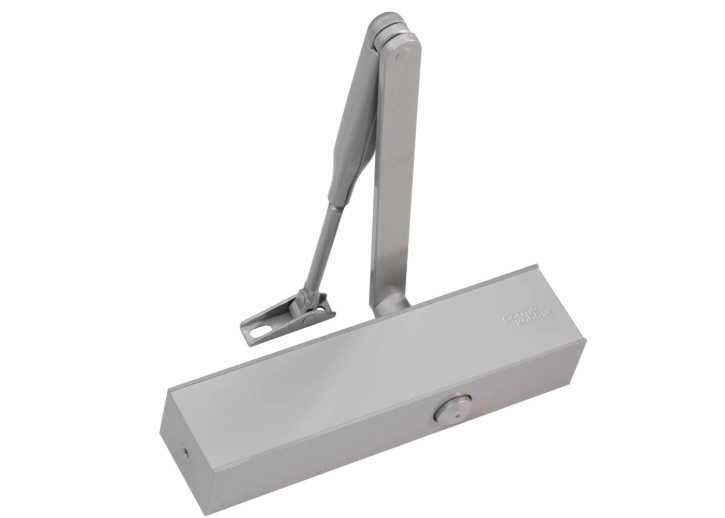

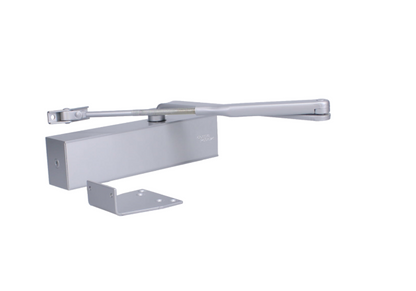

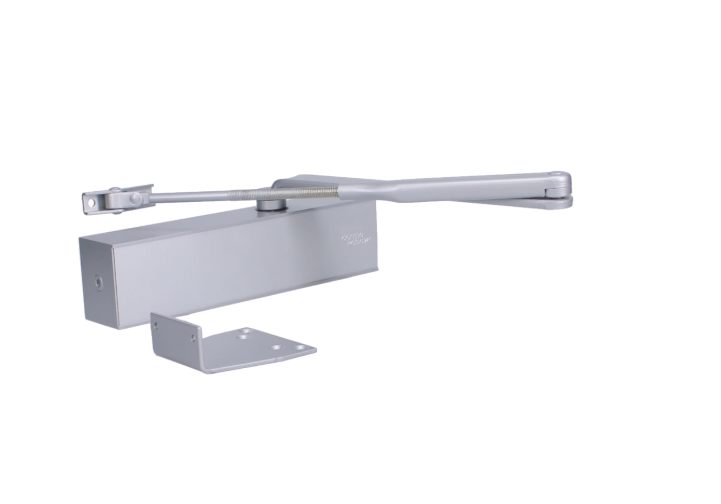

DORMAKABA TS83SE Size 3-6 Fire Rated Overhead Door Closer

The DORMAKABA TS83SE Size 3-6 Overhead Door Closer is a versatile scissor arm door closer designed for reliable door control across a wide range of commercial and public access applications. With adjustable power, closing speed, and latch action, the TS83SE can be tailored to suit the requirements of the door, helping to provide smooth, controlled closing in busy environments.

This model features dormakaba’s 'thinking' backcheck, which helps protect the door and surrounding structure from damage caused by forceful opening. It also includes delayed action for improved accessibility where required. Suitable for single and double-leaf doors, the TS83SE is non-handed and can be used for door, frame, or lintel fixing. It is successfully third-party tested to BS EN1154 and CERTIFIRE approved CF 117, making it suitable for use on timber (FD120) and metal (FD240) fire door applications when correctly specified and installed.

Finish
Silver

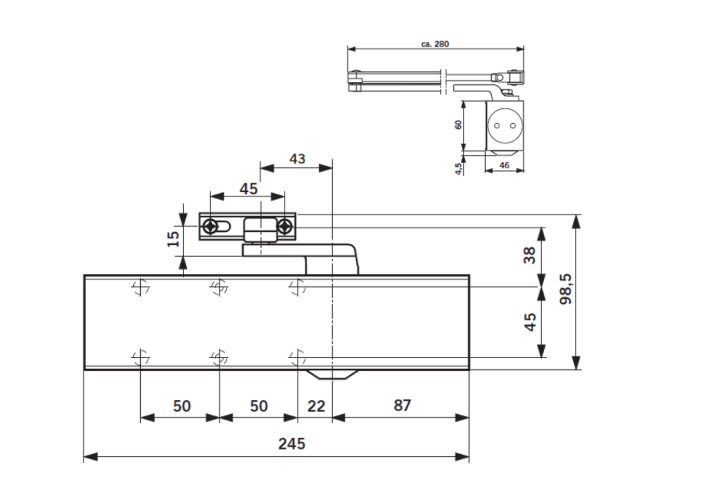

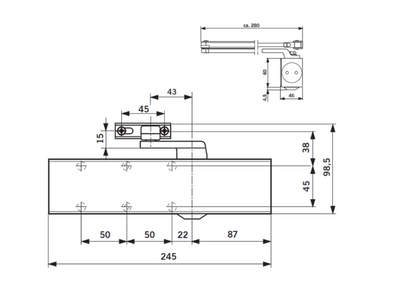

Size
Height: 46mm
Width: 60mm
Depth: 46mm

Max Door Weight
120Kg

Max Door Width
1400mm

Strength Size
3 To 6

Adjustable Latch Action
Yes

Backcheck
Yes

Handed
Reversible

Application
Fig 1, Fig 61 & Fig 66

Pack Quantity
1
