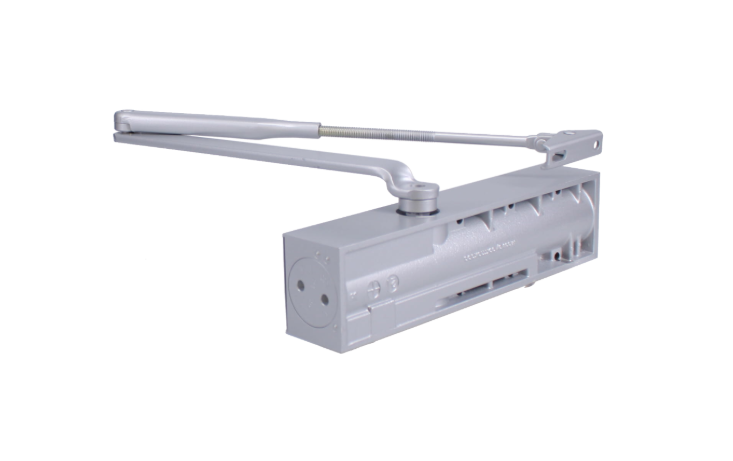

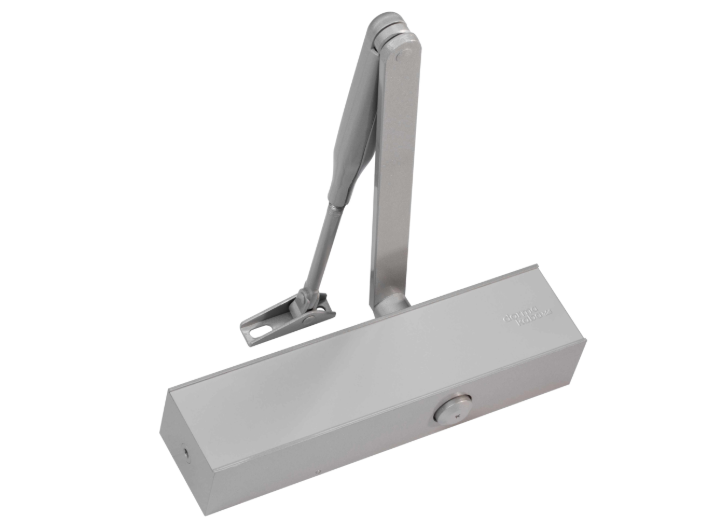

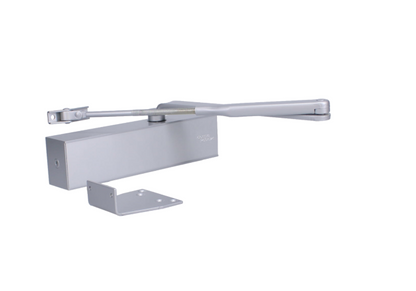

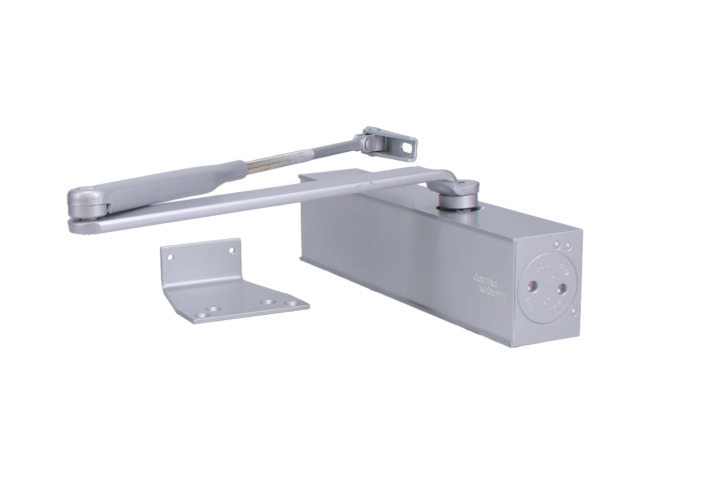

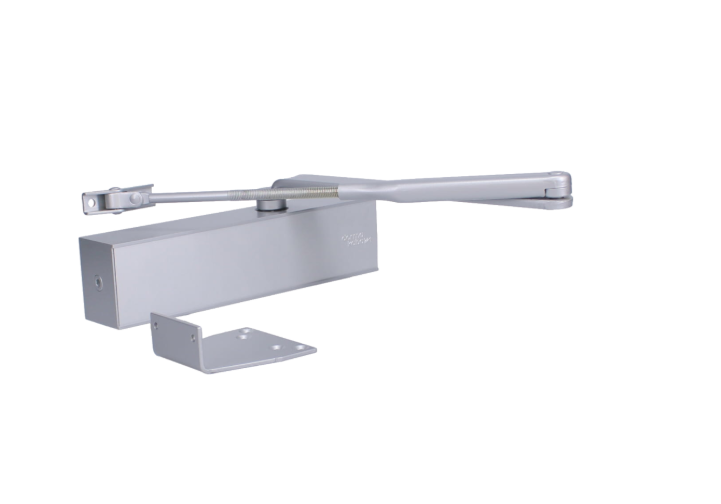

DORMAKABA TS83SE Size 3-6 Fire Rated Overhead Door Closer

The DORMAKABA TS83SE Size 3-6 Overhead Door Closer is engineered for optimal performance in various commercial and public access settings. Its scissor arm design ensures reliable door control, making it an ideal choice for high-traffic areas.

With adjustable power settings, closing speed, and latch action, the TS83SE can be customized to meet specific door requirements, ensuring a smooth and controlled closing action. This adaptability is crucial in busy environments where safety and efficiency are paramount.

One of the standout features of this model is dormakaba’s innovative 'thinking' backcheck, which safeguards both the door and its surroundings from damage due to abrupt openings. Additionally, the delayed action feature enhances accessibility, making it suitable for users with varying needs.

The TS83SE is versatile enough to accommodate both single and double-leaf doors, and its non-handed design allows for flexible installation options on door, frame, or lintel. It has been rigorously tested to meet BS EN1154 standards and holds CERTIFIRE approval CF 117, confirming its suitability for use on timber (FD120) and metal (FD240) fire doors when installed correctly.

Specifications:

• Finish: Silver Enamelled

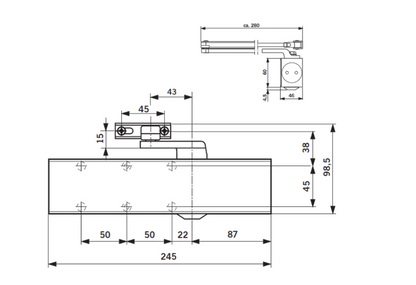

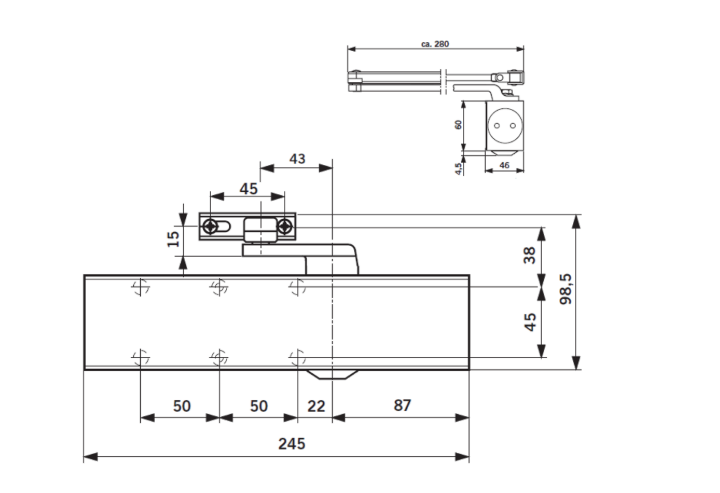

• Size:
  • Length: 24.5 cm
  • Height: 46 mm
  • Width: 60 mm
  • Depth: 46 mm
• Max Door Weight: 120 Kg
• Max Door Width: 1250 mm
• Strength Size: 3 to 6
• Handed: Reversible
• Application: Fig 1, Fig 61 & Fig 66
• Notes: Anti-Corrosive & Backcheck
• Pack Quantity: 1
• Features:
  • Adjustable Latch Action: Yes
  • Backcheck: Yes
• Weight: 1.951 Kg

This door closer is not only functional but also designed to withstand the rigors of daily use, making it a reliable choice for any installation.
