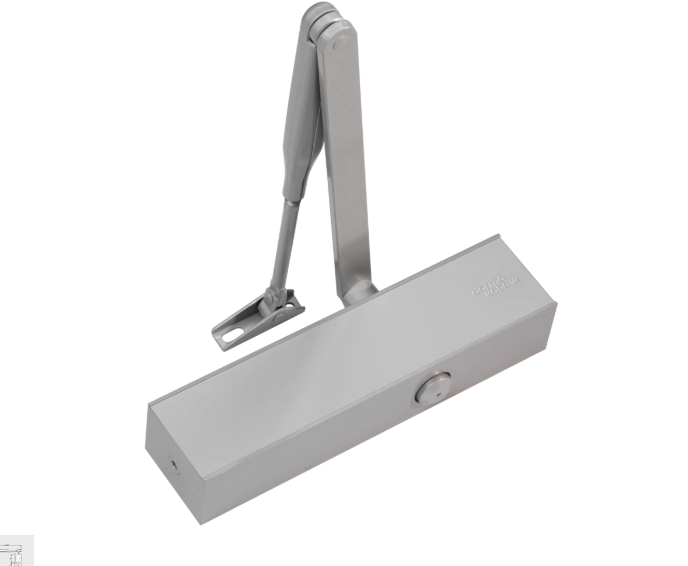

DORMAKABA TS83 Size 2-5 Fire Rated Overhead Door Closer

The DORMAKABA TS 83 Door Closer is engineered for exceptional performance and adaptability, making it an ideal choice for various environments. Its robust rack and pinion design ensures reliable door control, while the adjustable features allow for customization to meet specific door requirements.

With certifications such as BS EN1154 and CERTIFIRE approval, the TS 83 is fire rated for both timber (FD120) and metal (FD240) doors, ensuring compliance for fire and smoke check applications. The self-regulating backcheck mechanism not only enhances safety by preventing damage from abrupt openings but also supports a non-handed design, making it versatile for left or right-hand doors.

Key Specifications:

• Finish: Silver Enamelled

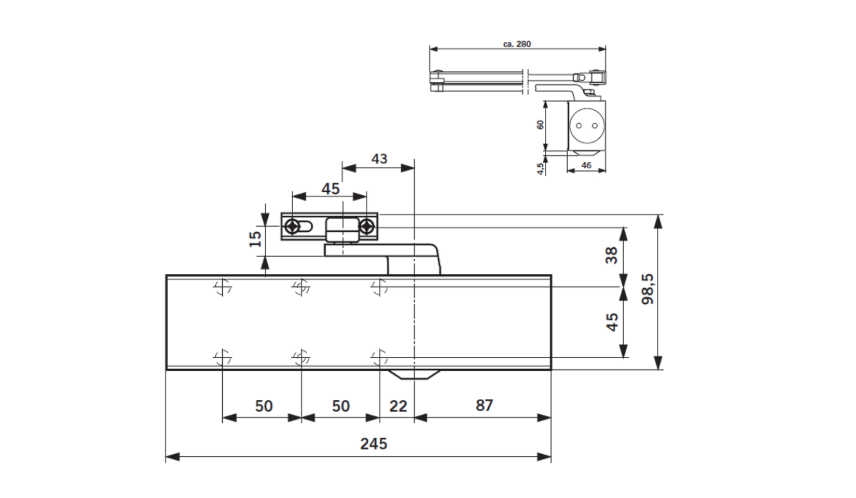

• Dimensions:
  • Length: 24.5 cm
  • Height: 48 mm
  • Width: 60 mm
  • Depth: 48 mm
• Note: Backcheck & Delayed Action
• Max Door Weight: 120 Kg
• Max Door Width: 1250 mm
• Strength Size: 3 to 5
• Handed: Reversible
• Application: Suitable for Fig 1, Fig 61 & Fig 66

Features:

• Certifire approved product (CF 117)
• Fire rated for timber (FD120) and metal (FD240) fire doors
• Adjustable power for door widths up to 1400mm / 1600mm
• Compatible with single- and double-leaf doors
• Anti-corrosion protection
• Backcheck and delayed action options available
• A perfect solution for almost any application

Please remember that hold-open arms are not permitted on fire doors. The DORMAKABA TS 83 Door Closer is truly a versatile and reliable choice for ensuring safety and functionality in high-traffic areas.
