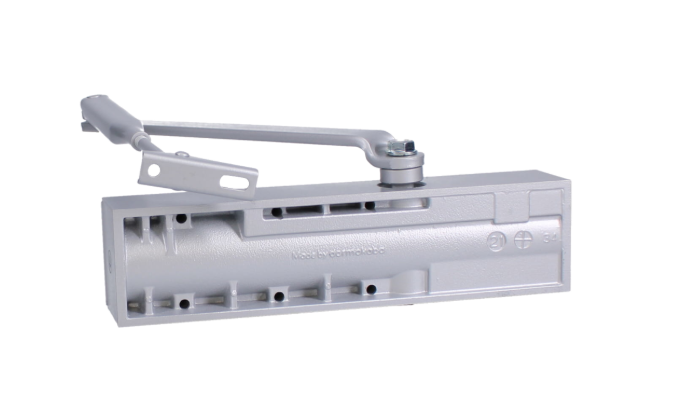

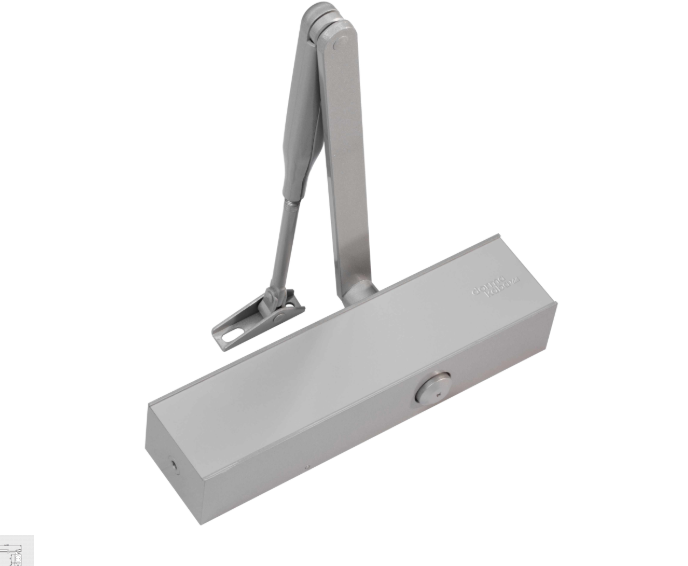

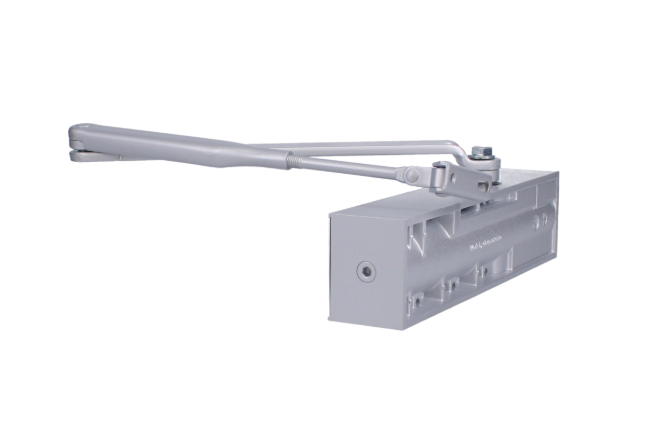

DORMAKABA TS83 Size 2-5 Fire Rated Overhead Door Closer

The DORMAKABA TS 83 Door Closer is engineered for exceptional performance and adaptability, making it an ideal solution for various door control needs. Its rack and pinion design ensures smooth operation, while the adjustable features allow for customization to meet specific requirements.

With its compliance to BS EN1154 standards and CERTIFIRE approval, the TS 83 is a reliable choice for both timber and metal fire doors, ensuring safety in fire and smoke check applications. The self-regulating backcheck mechanism not only enhances safety by preventing damage from abrupt door openings but also contributes to the longevity of the door and its surroundings.

This door closer is designed for versatility, featuring a non-handed design that accommodates both left and right-hand doors. However, it's important to remember that hold-open arms are not permitted on fire doors to maintain compliance with safety regulations.

Specifications:

• Finish: Silver Enamelled

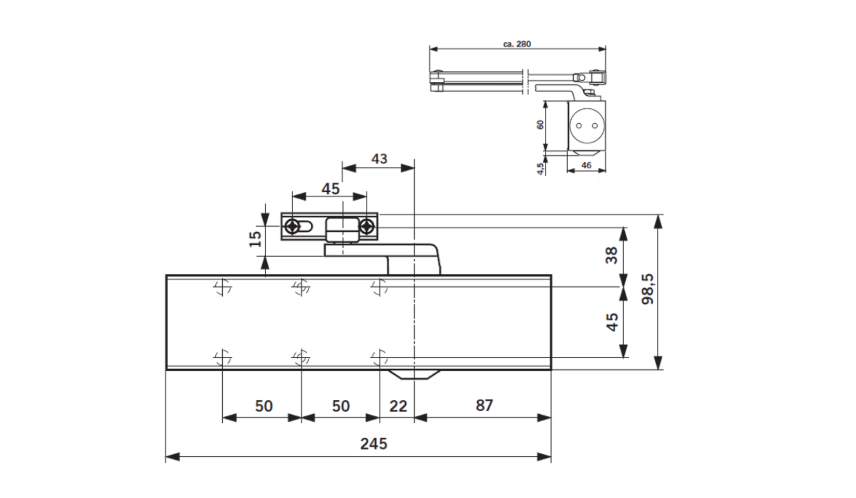

• Size:
  • Length: 24.5 cm
  • Height: 46 mm
  • Width: 60 mm
  • Depth: 46 mm
• Max Door Weight: 120 Kg
• Max Door Width: 1250 mm
• Strength Size: 3 to 5
• Handed: Reversible
• Applications: Fig 1, Fig 61 & Fig 66
• Notes: Backcheck
• Pack Quantity: 1

The TS 83 is not just a door closer; it's a commitment to safety, reliability, and performance in high-traffic environments.
