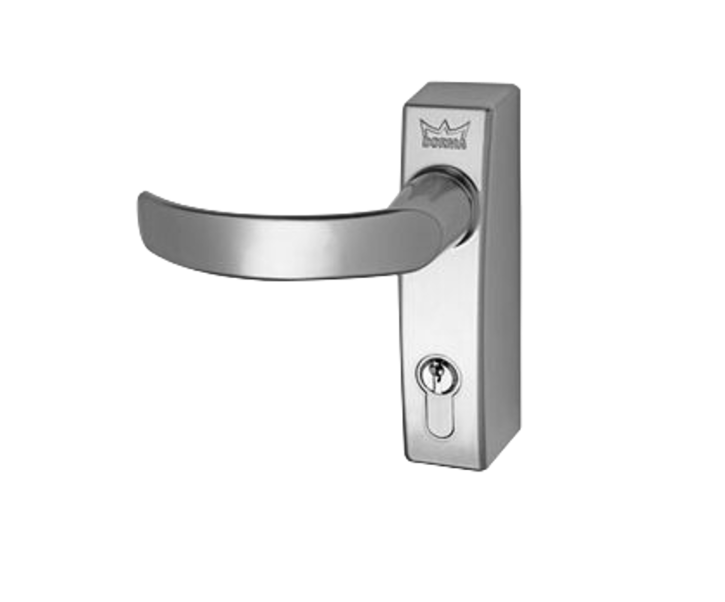

DORMAKABA PHT 01 Lever Operated Outside Access Device

Introducing the dormakaba PHT 01 External Trim Lever Handle, a perfect fit for the PHA 2000 range of exit hardware. This Euro-profile unit is designed for standard doors with a leaf thickness of up to 60mm, ensuring versatility and ease of installation.

• Key Features:
• Compatibility: Specifically designed for standard doors with a leaf thickness of up to 60 mm.
• External Fitting: Comes with a sleek lever handle for easy operation.
• Non-Handed Design: Suitable for both left and right-handed doors, providing flexibility in installation.
• Versatile Use: Compatible with both the Dorma PHA 2000 and Exit Pad series, making it a reliable choice for various applications.
• Complete Package: Supplied with a lever handle, spindle, and two fixing bolts for straightforward installation.
• Europrofile Design: Note that the cylinder is not included, allowing for customization based on security needs.

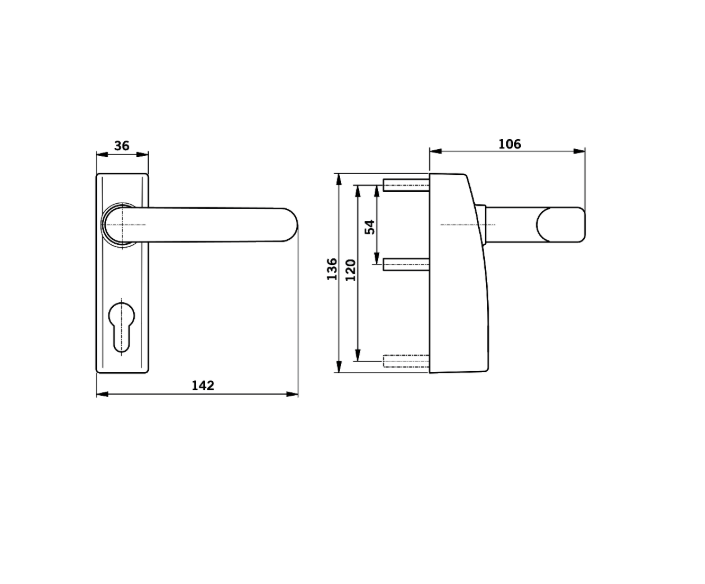

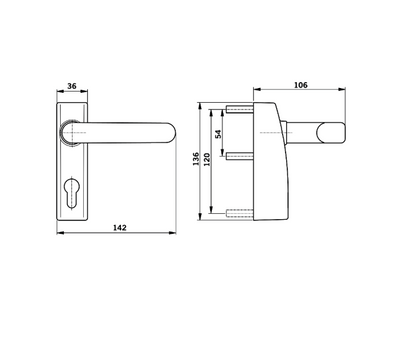

• Specifications:
• Width: 14.2 cm
• Screw Centres: 54 mm or 120 mm
• Body Width: 36 mm
• Handle Projection: 106 mm
• Max Door Width: 60 mm
• This trim lever handle combines functionality with a modern aesthetic, making it an excellent addition to your door hardware solutions.
