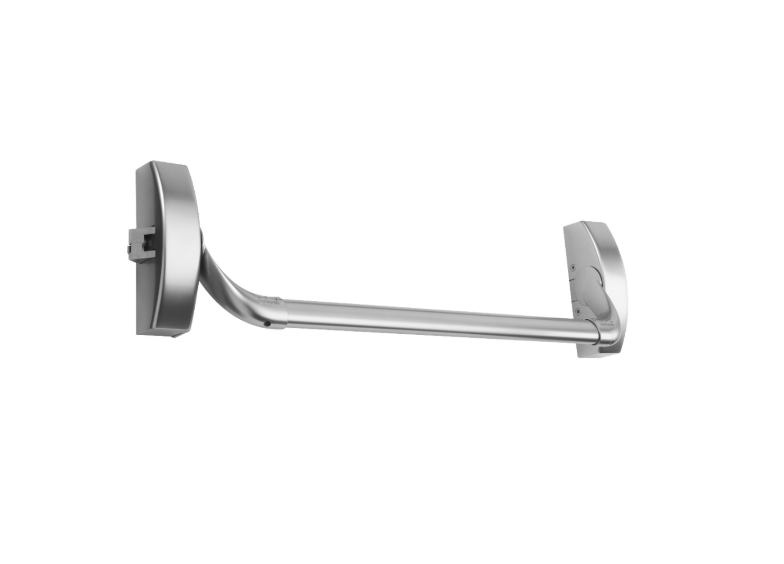

DORMAKABA PHA2221 Standard Fire Rated Panic Latch

The dormakaba PHA 2221 Standard Panic Latch is an essential component for ensuring safety and accessibility in emergency situations. Designed specifically for the active leaf of over-rebated double doors, this unit not only meets but exceeds industry standards, having been rigorously tested in accordance with EN 1125 and proudly carrying the CE mark.

This single-point locking mechanism is ideal for fire and smoke check doors, providing peace of mind with its Certifire approval. The integrated dogging device allows the latch to remain retracted, facilitating easy access when needed, making it a practical choice for high-traffic areas.

• Features
• Certifire Approved: Ensures compliance with fire safety regulations.
• Fire Door Compatibility: Suitable for both FD30 and FD60 fire doors, enhancing safety in critical environments.
• Installation Compliance: Must be installed according to the manufacturer’s instructions and with all relevant associated products to maintain fire safety standards.
• Durable Construction: Features a robust steel latch designed for longevity and reliability.
• Non-Handed Design: Versatile installation options to suit various door configurations.
• Weight Capacity: Supports a maximum door leaf weight of 200Kg, accommodating heavy doors without compromising functionality.
• Accessibility: The dogging device allows for free access, making it user-friendly in emergency situations.

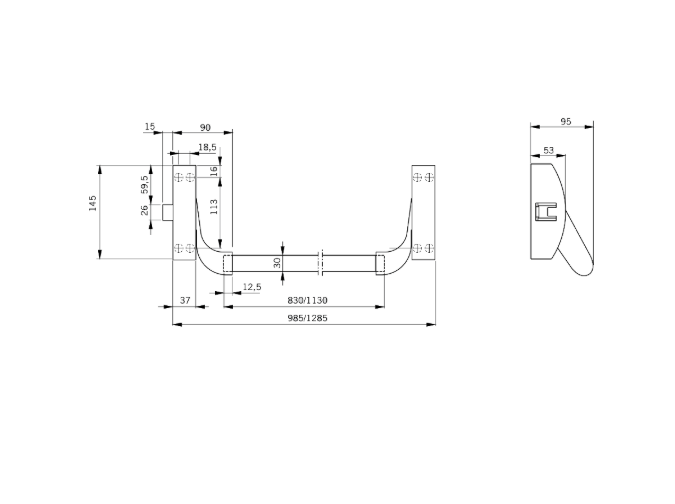

• Size Specifications
• Width: 1.285m
• Depth: 95mm
• Screw Centres: 113mm
• Body Height: 145mm
• Handle Projection: 42mm
• Max Door Height: 2270mm
• Max Door Weight: 200Kg
• Max Door Width: 1000mm
• This panic latch is a reliable solution for enhancing safety and accessibility in various settings, ensuring that your doors meet the necessary fire safety standards while providing ease of use.
