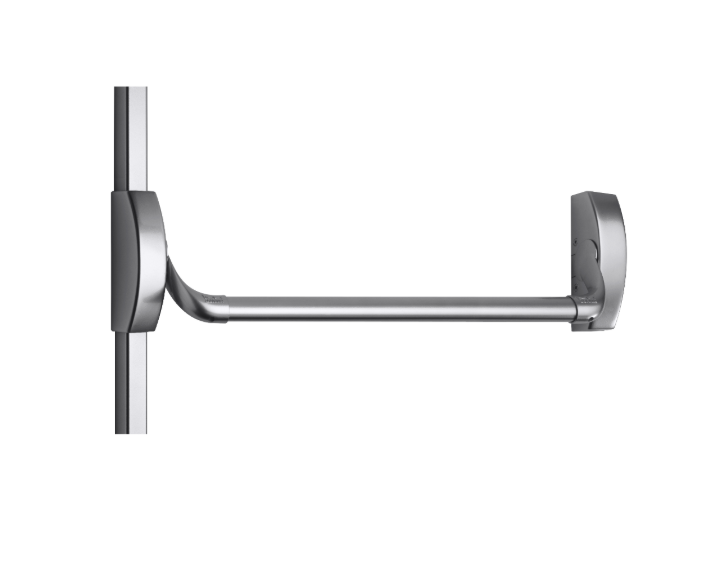

DORMAKABA PHA2220 Standard Fire Rated Panic Bolt

The dormakaba PHA 2220 Standard Panic Bolt is an exceptional choice for ensuring safety and security in various environments. This two-point locking panic device is designed to accommodate door widths of up to 1000mm, making it versatile for different applications.

Tested in accordance with EN 1125, the PHA 2220 carries the CE mark, ensuring compliance with European safety standards. Its robust construction features steel top and bottom shoot bolts, providing reliable locking mechanisms. The operation bar is specifically designed for use on fire and smoke check doors, and it includes a dogging device that allows the latch to remain retracted for easy access when needed.

This unit is Certifire approved, making it suitable for FD30 and FD60 fire doors, and it must be installed according to the manufacturer’s instructions to maintain its fire-tested integrity.

• Key Features
• Certifire Approved: Ensures compliance with fire safety regulations.
• Fire Door Compatibility: Suitable for FD30 & FD60 fire doors, enhancing safety in emergency situations.
• Public Area Use: BS EN 1125 tested, making it ideal for high-traffic areas.
• Adjustable Rod Set: Comes with metal covers for door heights up to 2270mm.
• Operation Bar Length: Available in sizes from 830mm to 1000mm for flexibility.
• Durable Construction: Features steel top and bottom shoot bolts for added security.
• Two-Point Locking Mechanism: Provides enhanced security for peace of mind.

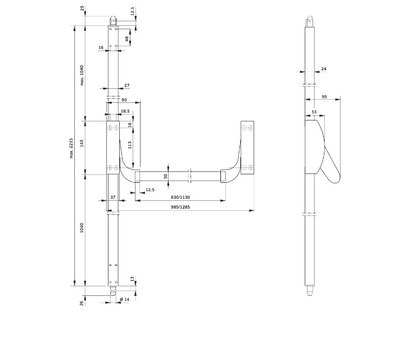

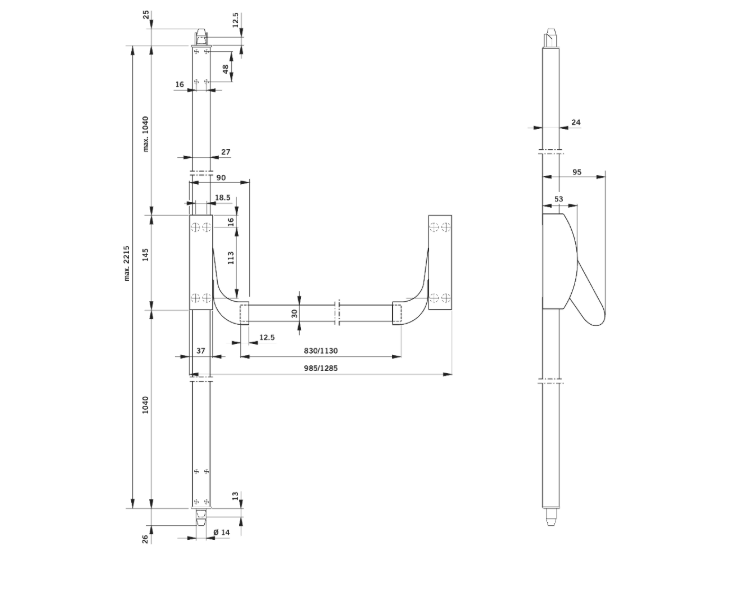

• Specifications
• Width: 1.285m
• Depth: 95mm
• Screw Centres: 113mm
• Body Height: 145mm
• Handle Projection: 42mm
• Max Door Height: 2270mm
• Max Door Weight: 200Kg
• Max Door Width: 1000mm

The dormakaba PHA 2220 is a reliable solution for ensuring safety and compliance in both commercial and residential settings.
