DORMAKABA PHA2111 Modular Fire Rated Push Pad

The dormakaba PHA 2111 Modular Push Pad is an innovative solution for ensuring safety and accessibility in emergency situations. Designed for doors up to 1000mm wide, this single-point locking panic device is not only modular but also compatible with the dormakaba PHA 2000/3000 series components.

With its CE mark and compliance with EN 179 standards, the PHA 2111 is ideal for escape route doors in buildings without public pedestrian traffic. Its Certifire approval further enhances its reliability, making it suitable for FD60 fire doors. This ensures that in the event of an emergency, occupants can exit swiftly and safely, minimizing the risk of panic.

• Key Features
• Certifire Approved: Ensures compliance with fire safety regulations.
• Fire Door Compatibility: Suitable for FD30 and FD60 fire doors, providing peace of mind in fire safety.
• Installation Requirements: Must be installed according to the manufacturer’s instructions and with all relevant associated products to maintain fire integrity.
• Durable Construction: Features a plastic mounting bracket, zinc latch keep with spacer plates, and a zinc die-cast latch for longevity.
• Modular Design: Allows for easy integration with existing systems.
• Single-Point Locking: Provides a secure locking mechanism while ensuring quick access in emergencies.

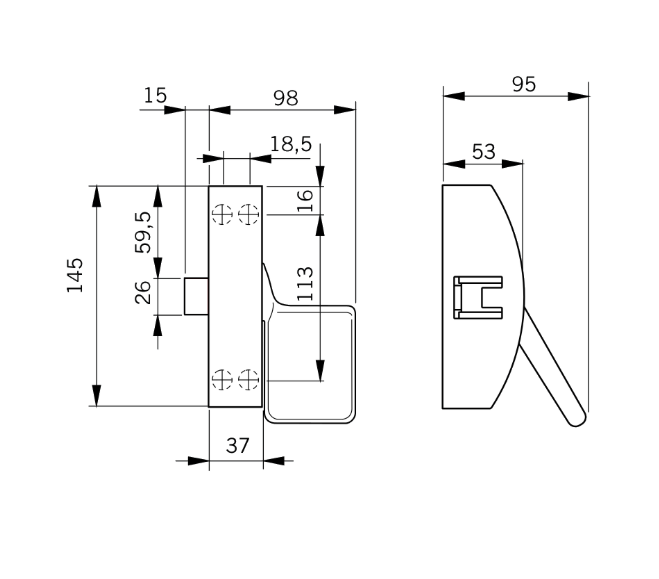

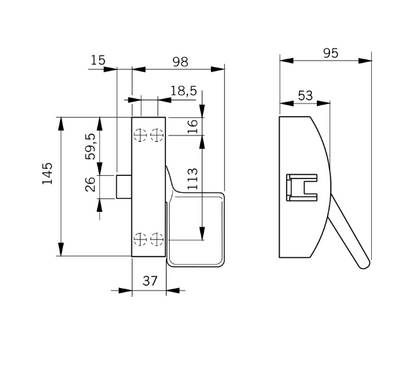

• Dimensions
• Height: 95mm
• Width: 98mm
• Depth: 95mm
• Screw Centres: 113mm
• Body Height: 145mm
• Body Width: 37mm
• Handle Projection: 42mm
• Max Door Height: 2270mm
• Max Door Weight: 200Kg
• Max Door Width: 1300mm

This push pad is an essential addition to any safety-conscious building, ensuring that escape routes are both accessible and compliant with safety standards.
