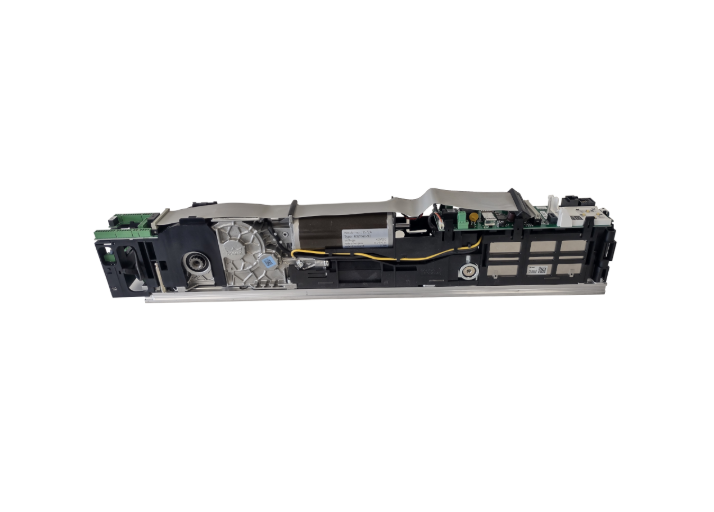

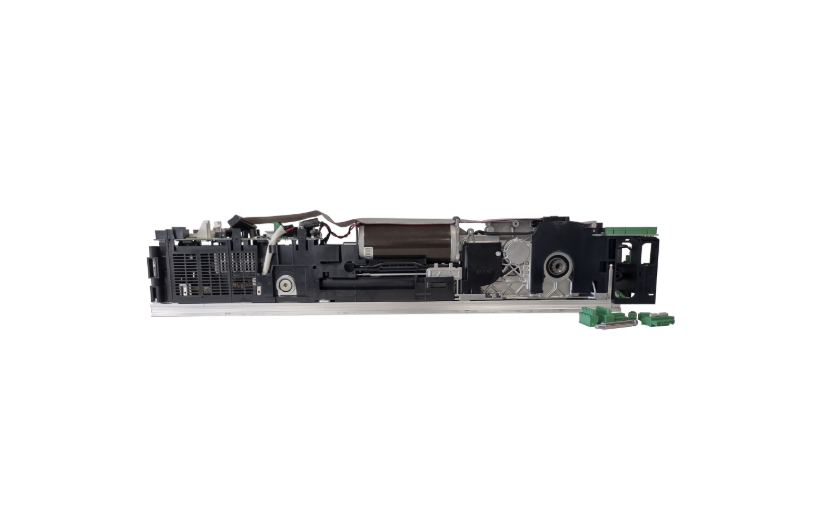

DORMAKABA ED100 LE XEA Low Energy Fire Rated Swing Door Operator

The dormakaba ED100 LE XEA is an exceptional low energy electromechanical swing door operator, designed with versatility and safety in mind. Perfect for emergency escape routes and fire/smoke check doors, this operator has been rigorously tested for durability, boasting an impressive lifespan of 1,000,000 cycles.

Its modular design not only facilitates easy part replacement but also ensures compatibility with both single and double leaf doors, accommodating weights up to 160kg and widths up to 1100mm. The sleek XEA design features a compact operator height of just 70mm, making it an aesthetically pleasing addition to any environment.

Key Features

• Fire Door Compliance: Suitable for FD120 fire doors.
• Installation Requirements: Additional parts may be necessary for proper installation.
• Quiet Operation: Engineered with multi-stage gearing for low noise levels.
• Manual Operation: Allows for manual door operation with push-pad activated assistance.
• Emergency Ready: Ideal for emergency escape and fire doors.
• Efficient Closing: Features electronic latching action for effective closing.

Specifications

• Height: 130mm
• Width: 68.5cm
• Depth: 130mm
• Max Door Weight: 160kg
• Max Door Width: 1100mm
• Strength Size: Adjustable from 2 to 4
• Min Door Width: 700mm
• Max Opening Angle: 110°

This operator combines functionality with a modern design, making it a reliable choice for various applications while ensuring safety and ease of use.
