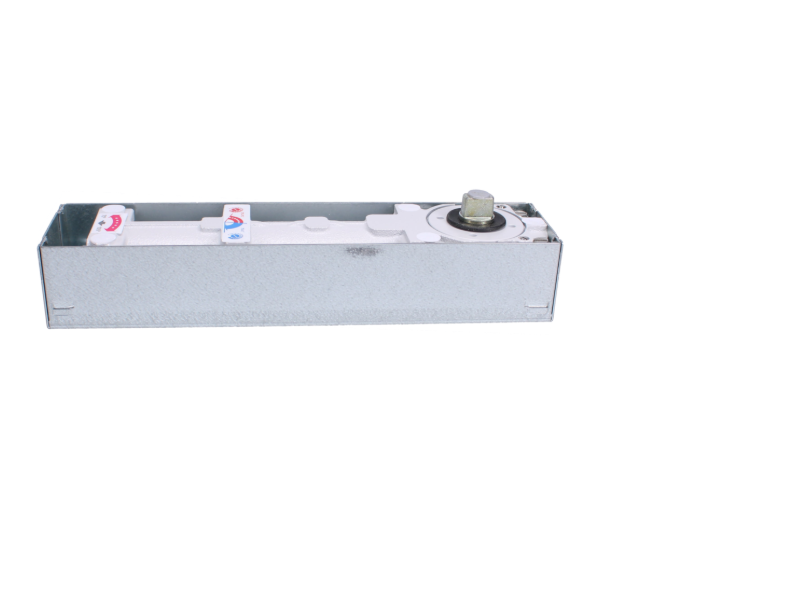

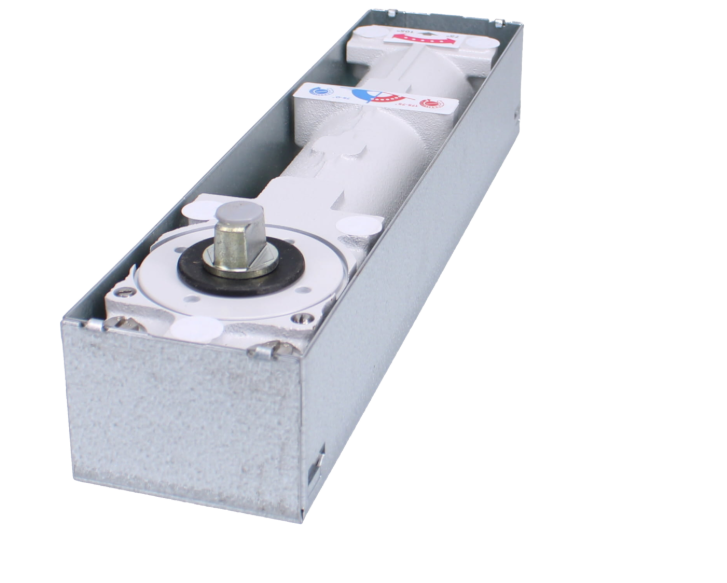

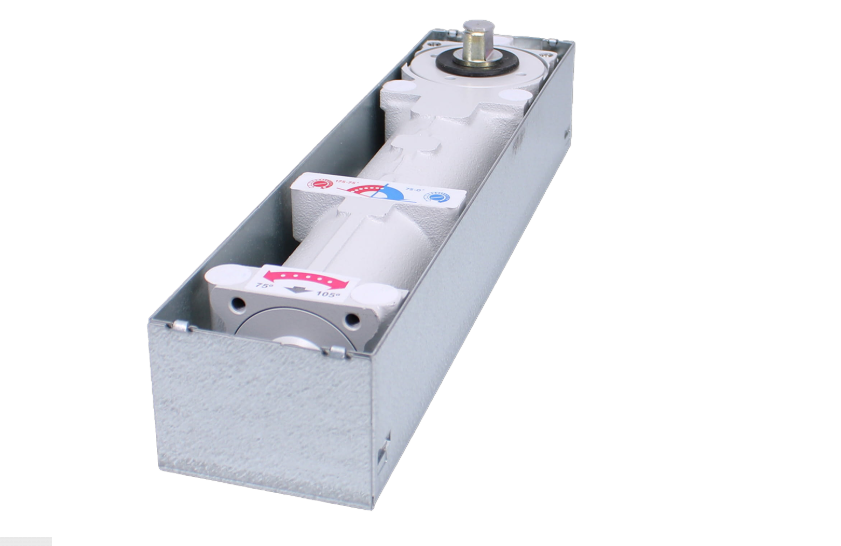

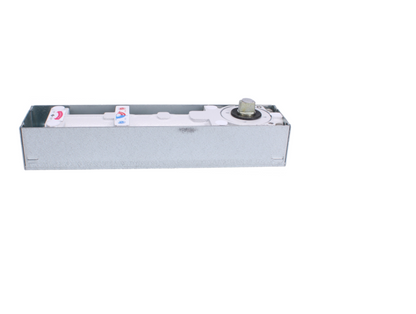

DORMAKABA BTS80 Fire Rated Floor Spring Door Closer

The dormakaba BTS80 Floor-Concealed Spring Door Closer is designed for versatility and efficiency, making it an ideal choice for various installations. Its compact body allows for use in spaces where larger closers may not fit, ensuring seamless integration into your design.

With a range of interchangeable spindles, the BTS80 adapts effortlessly to different floor coverings and thresholds, providing a tailored solution for your needs. This product is Certifire approved, ensuring compliance with safety standards, and is suitable for FD30 and FD60 fire doors, making it a reliable option for fire safety applications.

Key Features

• Certifire Approved: Meets stringent fire safety standards.
• Fire Door Compatibility: Suitable for FD30 & FD60 fire doors.
• Installation Requirements: Must be installed according to the manufacturer’s instructions and with all relevant associated products.
• Top Plate: Supplied without a top plate, which must be purchased separately.
• Non-Handed Design: Works for both single and double-acting doors.
• Concealed Installation: Offers a clean and unobtrusive look.
• Versatile Applications: Suitable for a wide range of door types and environments.
• Hydraulically Adjustable Hold Open: Provides flexibility in door operation.

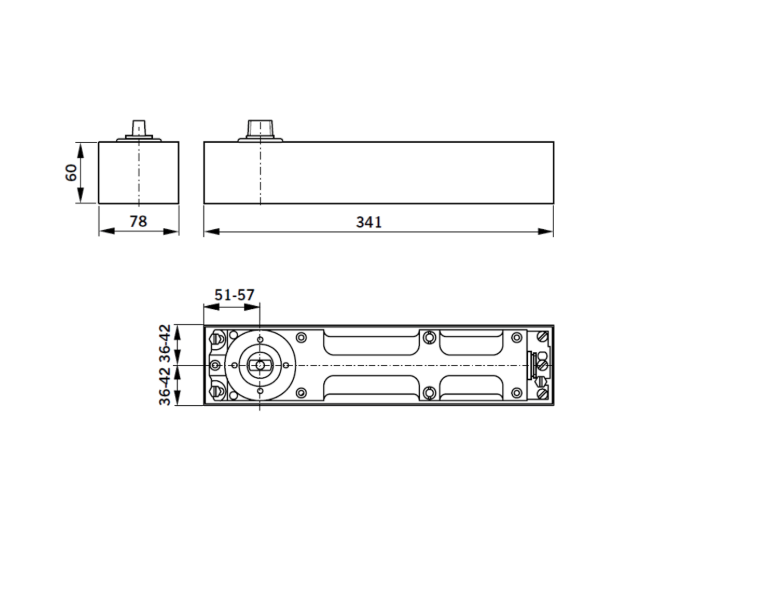

Specifications

• Length: 34.1 cm
• Height: 60 mm
• Width: 78 mm
• Depth: 60 mm
• Max Door Weight: 300 Kg
• Max Door Width: 950 mm
• Strength Size: 3

This door closer is an excellent choice for those seeking a reliable, adaptable, and aesthetically pleasing solution for their door control needs.
