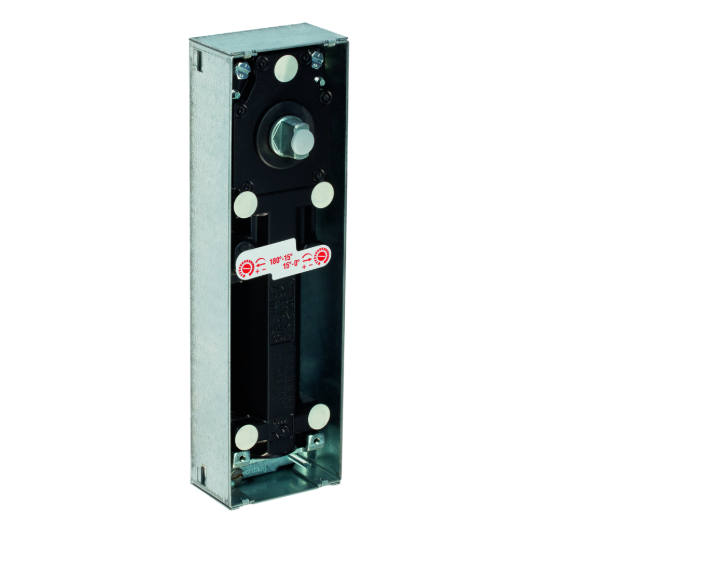

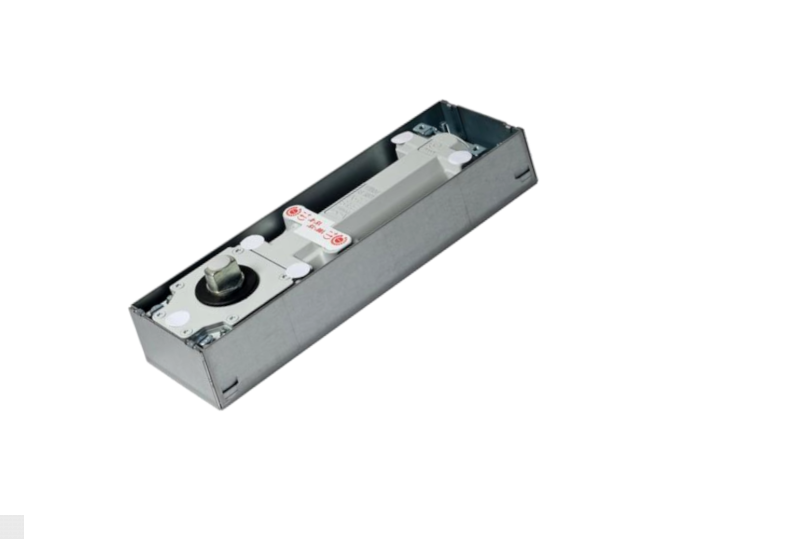

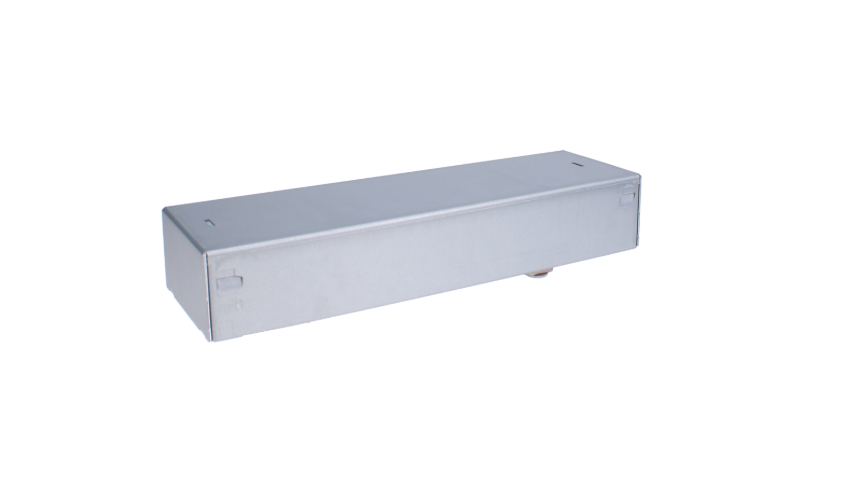

DORMAKABA BTS75V Fire Rated Floor Spring Door Closer

The dormakaba BTS75V floor spring is an exceptional choice for those seeking versatility and reliability in door hardware. Designed to accommodate doors up to 1100 mm wide and 120 kg in weight, this model excels in both functionality and safety.

• Key Features:
  • Fire Door Compatibility: Approved for use on FD30 and FD60 fire doors, ensuring compliance with safety regulations.
  • Installation Requirements: Must be installed according to the manufacturer’s guidelines, along with all relevant associated products for optimal performance.
  • Non Hold Open Functionality: This model does not feature a hold open function, providing a seamless closing experience.
  • Action Versatility: Can be configured for single or double action, depending on the accessories selected.
  • Finish Options: Available in a variety of finishes including stainless steel top plates and polished brass, allowing for aesthetic customization.
  • Low Maintenance: Designed to be virtually maintenance-free, requiring only routine dusting and cleaning.
  • Concealed Installation: Offers a clean look with its concealed installation feature.
  • Adjustable Closing Force: The adjustable spring strength allows for personalized closing force settings, enhancing usability.
  • Certifire Approved: This product meets rigorous fire safety standards, providing peace of mind.
• Specifications:
  • Size Range: 1 to 4

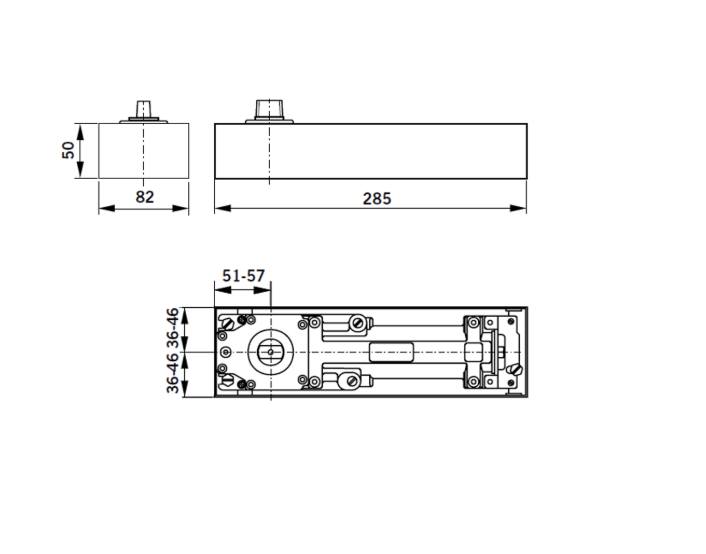

• Dimensions:
  • Length: 28.5 cm
  • Height: 50 mm
  • Width: 82 mm
  • Depth: 50 mm
• Maximum Door Weight: 120 kg
• Maximum Door Width: 1100 mm

The dormakaba BTS75V is an ideal solution for both commercial and residential applications, combining safety, adaptability, and style.
