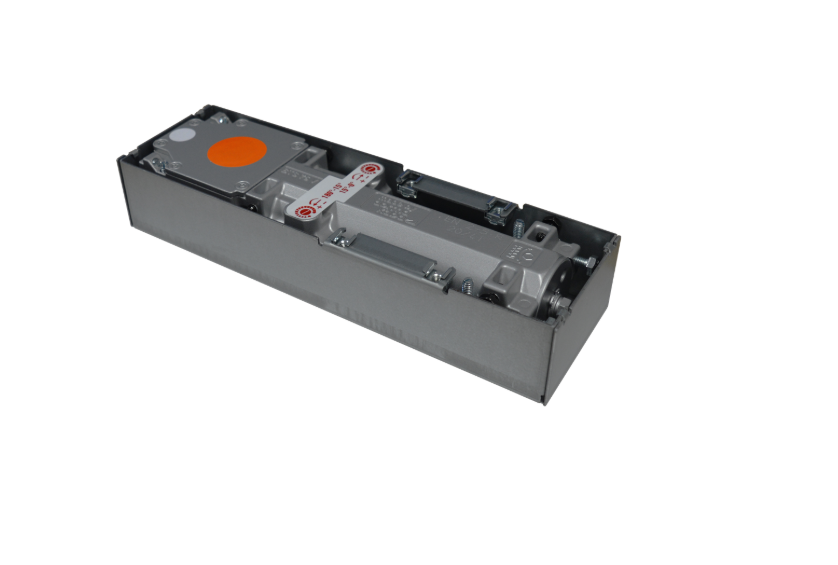

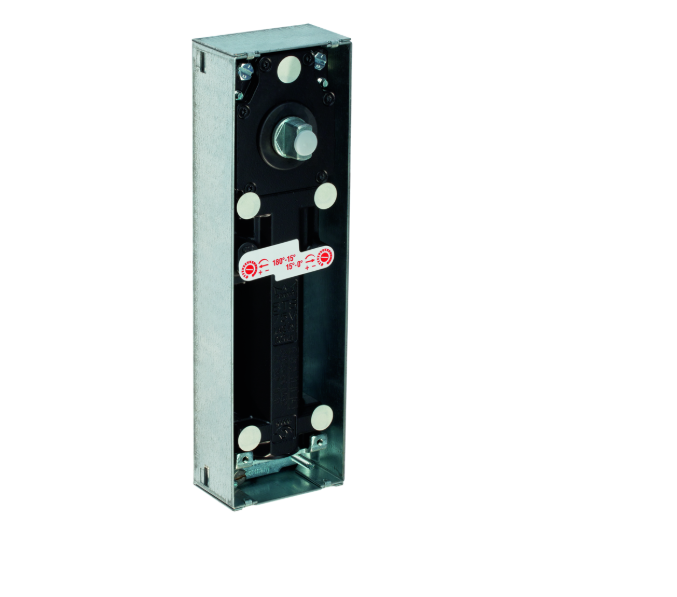

DORMAKABA BTS75R Fire Rated Floor Spring Door Closer

The DORMAKABA BTS75R Floor Spring Door Closer is an exceptional choice for ensuring safety and functionality in various door applications. This non-handed unit is designed to accommodate both left-hand and right-hand doors, making it versatile for any setting. With a robust capacity of up to 160kg, it adheres to the BS EN 1154 standard, ensuring reliability and performance.

One of the standout features of the BTS75R is its adjustable spring strength, which ranges from EN 2 to EN 5, allowing for customization based on the specific needs of your door. Additionally, the closing speed can be fine-tuned to ensure a smooth and controlled closure, enhancing user experience and safety.

For added convenience, the door closer offers a hold open option at 90°, providing flexibility in high-traffic areas. The fully hydraulically controlled backcheck and closing cycle further enhance its functionality, ensuring that the door operates seamlessly.

This product is Certifire approved, making it suitable for use on FD30 and FD60 fire doors. It has undergone rigorous fire testing and must be installed according to the manufacturer’s instructions, along with all relevant associated products, to maintain compliance and safety standards.

Key Features:

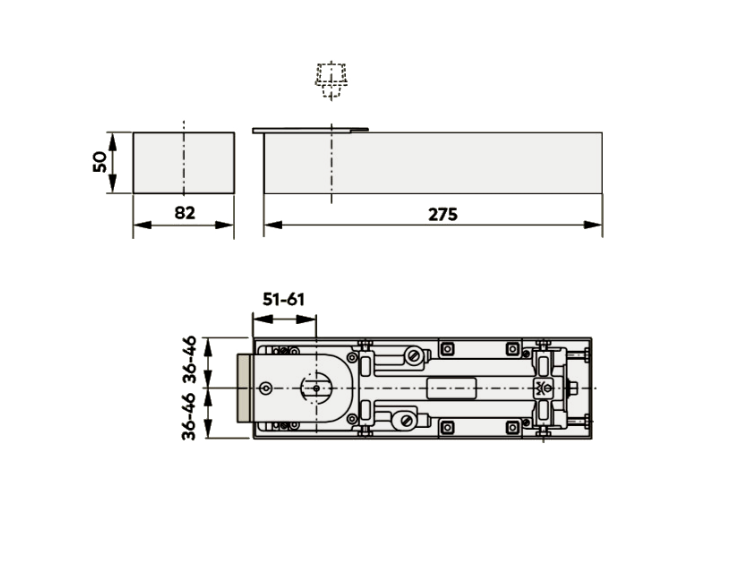

• • Length: 285mm
• • Height: 50mm
• • Width: 82mm
• • Depth: 50mm
• • Max Door Weight: 160kg
• • Max Door Width: 1250mm
• • Strength Size: EN 2 to EN 5
• Certifire approved product
• Suitable for use on FD30 & FD60 fire doors
• Fire tested and must be installed per manufacturer’s instructions
• Without spindle
• Adjustable closing speed
• Adjustable spring strength (EN 2-5)
• Compatible with single and double action door applications
• Non-handed for both left and right handed doors
• Ideal for a wide range of applications

The DORMAKABA BTS75R Floor Spring Door Closer is a reliable and efficient solution for enhancing door functionality while ensuring compliance with safety regulations.
