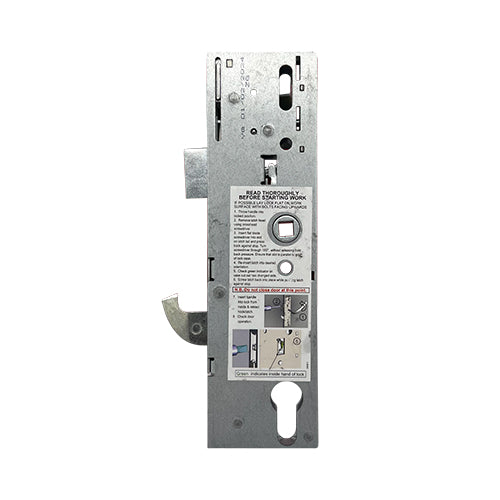

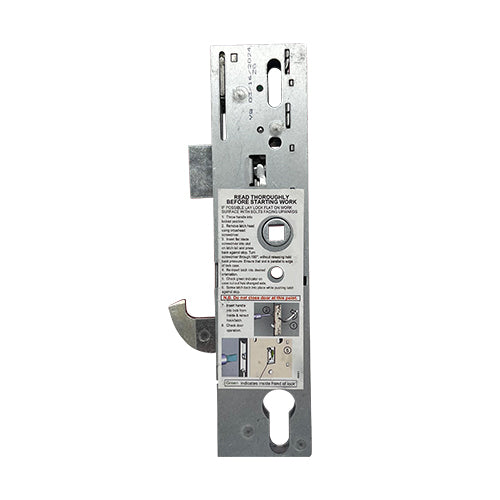

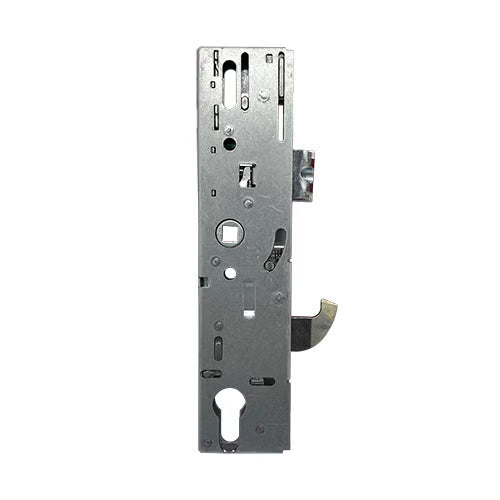

The IG Doors gearbox is designed for durability and ease of use, available in two backset options: 35mm and 45mm. This lock features a reliable latch and hook bolt mechanism, ensuring security for your doors.

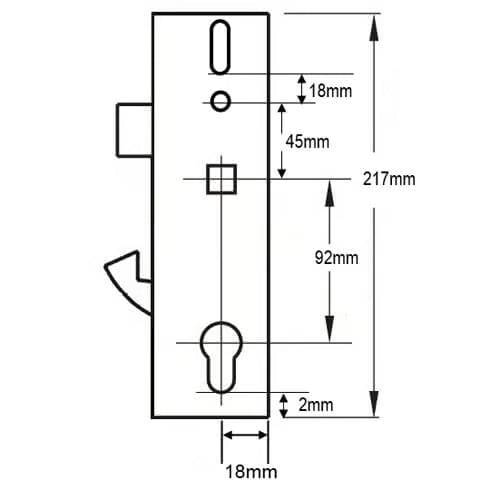

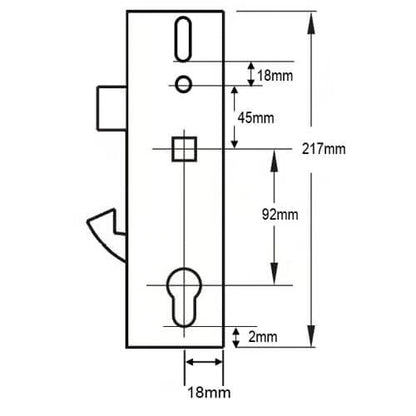

Dimensions:
Overall Height: 217mm
Width: Backset + 18mm
Latch Height: 28mm
Distance from Latch Bottom to Hook Top: 52mm
Hook Height: 28mm
Latch Reversal Instructions: Conveniently printed on a sticker on the side of the gearbox, making adjustments straightforward.
Operation:
Lift Lever or Split Spindle: Choose your preferred method for operation.
Locking Mechanism:
To Lock the Door:
Close the door to automatically engage the latch.
Lift the handle to engage additional locking points.
Throw the deadbolt and secure the system by turning the key (note: on some brands, lifting the handle will throw the deadbolt).
To Unlock the Door:
Turn the key to unlock the system.
Push the handle down to disengage the locking points.
A further quarter turn of the key will retract the latch.
Product Specifications:
Manufacturer: IG Doors
Backset Options: 35mm or 45mm
Centres PZ: 92mm
Case Height: 217mm
Case Width: Backset + 18mm
Copy/Genuine: Genuine
Cylinder Type: Euro
Handing: Not Handed
Main Gearbox: Latch & Hookbolt
Spindle: Select from drop-down menu
Operation: Lift Lever or Split Spindle Nightlatch
Packaging: Supplied in singles
For any further questions or assistance with installation, feel free to reach out!
