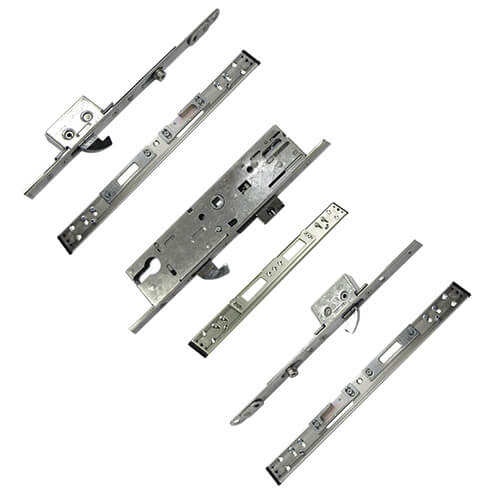

Introducing our innovative croppable extensions designed to provide a versatile replacement for a broader range of multipoint locks. Each unit comes with pre-assembled keeps utilizing our patented technology, ensuring compliance with 'Secured by Design' and PAS24 door set standards. The package includes a comprehensive 3-piece lock system, 3-part keeps, and a uni-packer system, along with two Allen keys for easy installation. Additionally, you'll find a pack of fixing screws and a split spindle included.
Latch Reversal Instructions:
To reverse the latch, simply undo the screw or screws securing it, remove the latch, reverse its position, and reinsert the screw. The nightlatch features an automatic reversal mechanism for added convenience.
Product Specification
Centres: 92mm
Case Height: 217mm
Case Depth: Backset + 17mm
Overall Length: 2060mm
Minimum Length: 1150mm
Maximum Top Hook to Spindle: 820mm
Minimum Top Hook to Spindle: 385mm
Maximum Bottom Hook to Spindle: 45mm
Minimum Bottom Hook to Spindle: 408mm
Adjustable Distance Between Top Hook and Spindle: 385mm to 820mm
Adjustable Distance Between Bottom Hook and Spindle: 408mm to 845mm
This product is engineered for flexibility and reliability, making it an ideal choice for various door applications.
