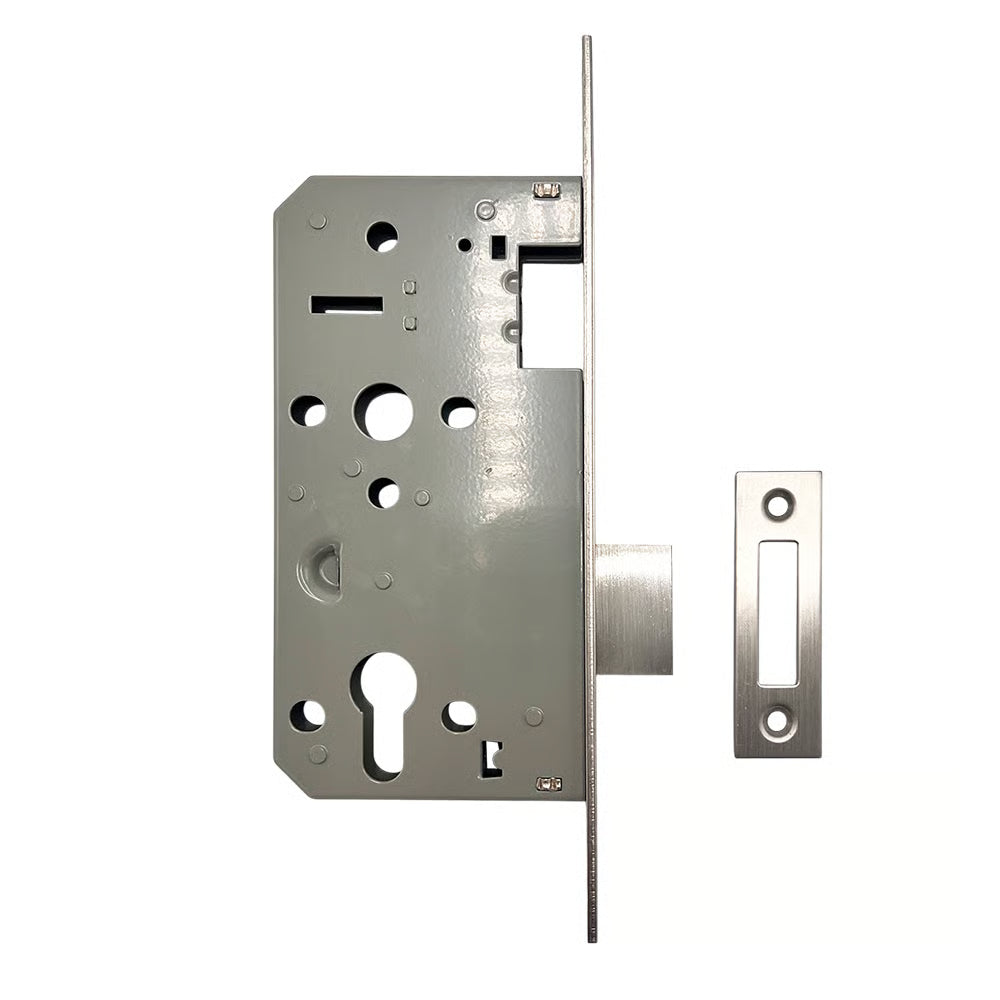

DIN Euro Mortice Deadlock Case

The Zoo DIN Euro Mortice Deadlock Case is engineered to meet the highest standards of security and reliability, making it an ideal choice for both residential and commercial applications.

Key Features

• Backset Options: Available in 55mm or 60mm to suit various door specifications.
• Durable Construction: Features a stainless steel single fixed forend with a width of 22mm, ensuring longevity and resistance to wear.
• Enhanced Security: Equipped with a stainless steel double throw deadbolt measuring 20mm, providing an extra layer of protection.
• Euro Profile Case: Designed to accommodate euro profile cylinders, enhancing compatibility with a wide range of locking mechanisms.
• Fire Safety Compliance: Comes with a graphite intumescent kit (0.8mm for 30 minutes and 1mm for 60 minutes) for use on fire-rated doors, ensuring safety in emergency situations.

Certifications

• CE Marked: Certificate AG10266
• UKCA Marked: Certificate AG10315
• CERTIFIRE Approved: Certificate CF10194

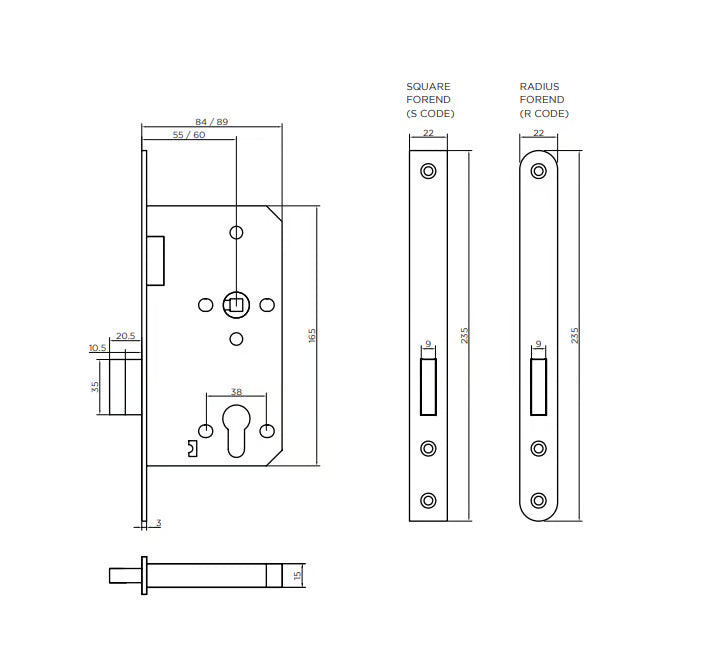

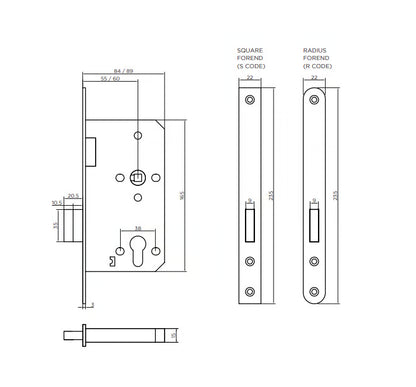

Product Specifications

• Backset: 55mm or 60mm
• Case Height: 165mm
• Case Depth: 84mm or 89mm
• Centres: 72mm
• Fixing Centres: 38mm
• Faceplate Height: 235mm
• Faceplate Width: 20mm
