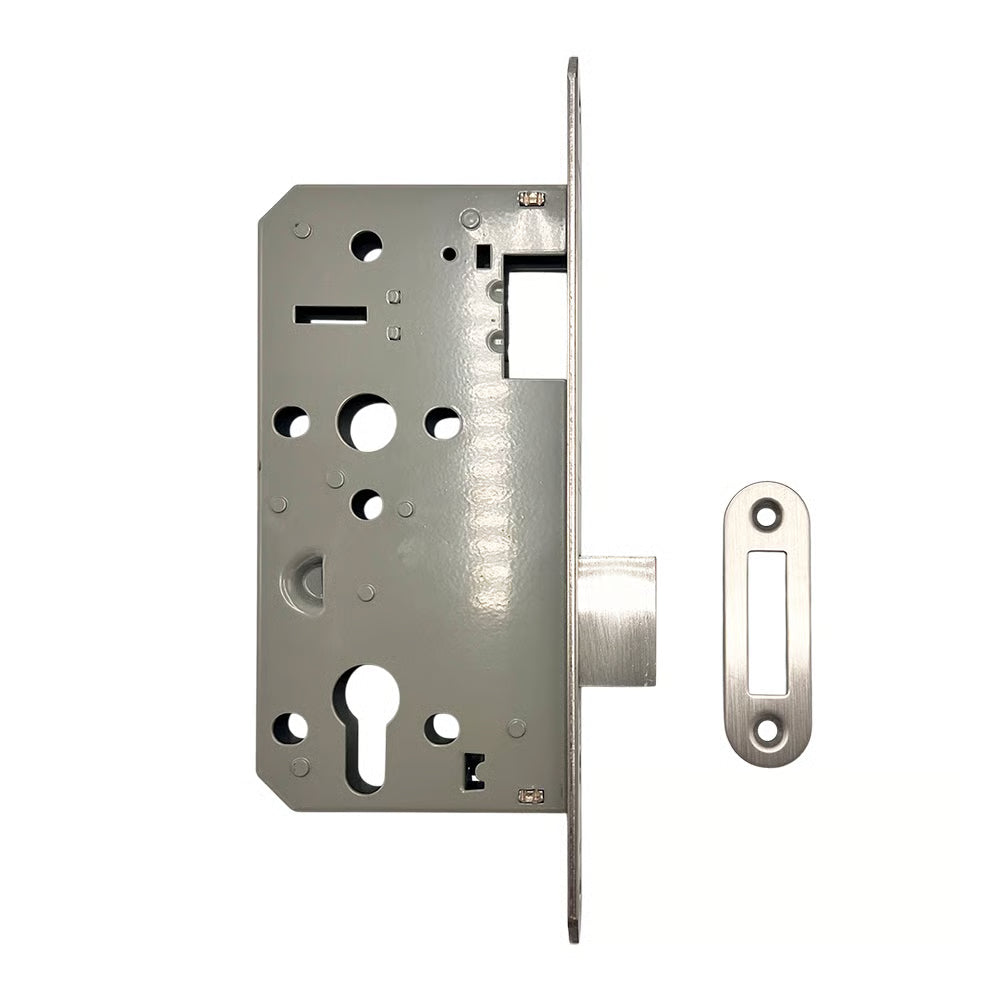

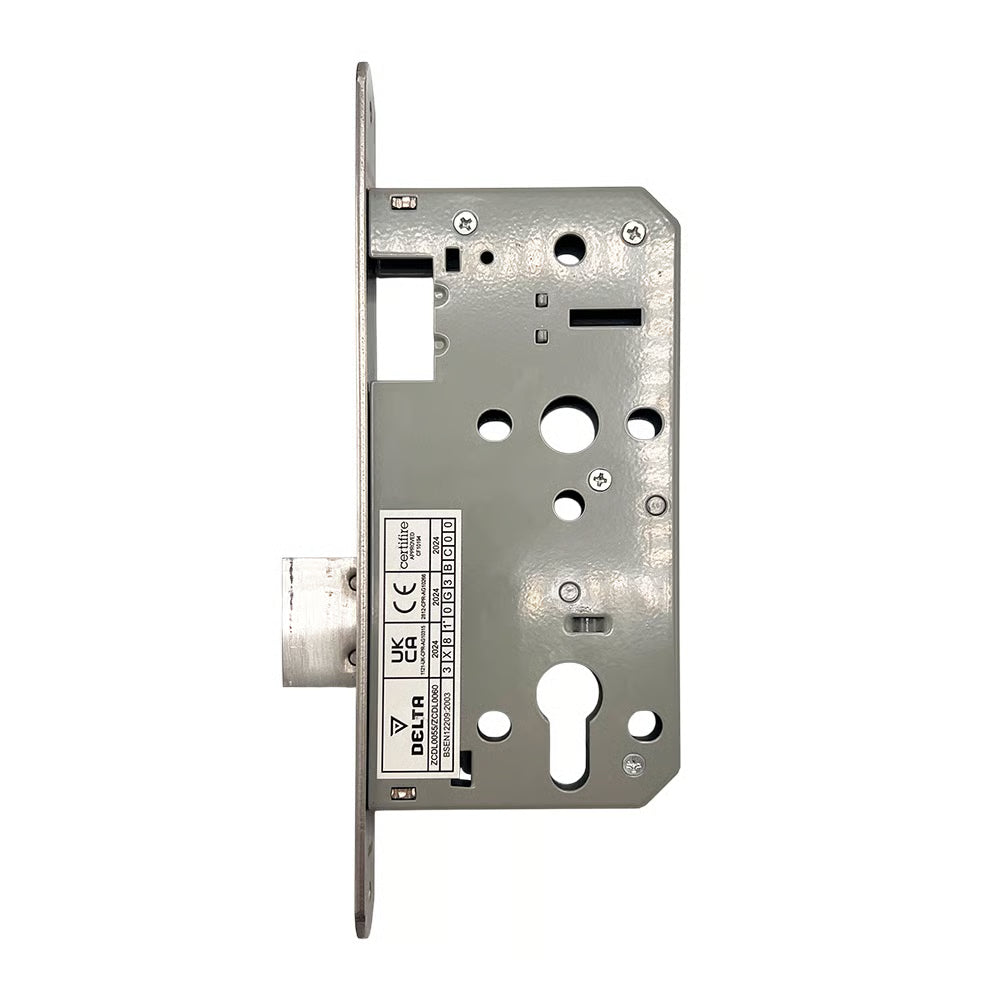

The Zoo DIN Euro Mortice Deadlock Case is a DIN standard mortice lock designed for durability and security.
A DIN mortice lock adheres to the DIN standards, which are established by the Deutsches Institut für Normung (DIN). These specifications guarantee uniformity in size and fitting, ensuring compatibility across various doors and hardware.
Product Features
Available in 55mm or 60mm backset
Stainless Steel single fixed forend, 22mm width
Stainless Steel double throw dead bolt, 20mm
Euro profile case
0.8mm (30 min) and 1mm (60 min) Graphite intumescent kit for use on fire-rated doors supplied separately (see below table for details)

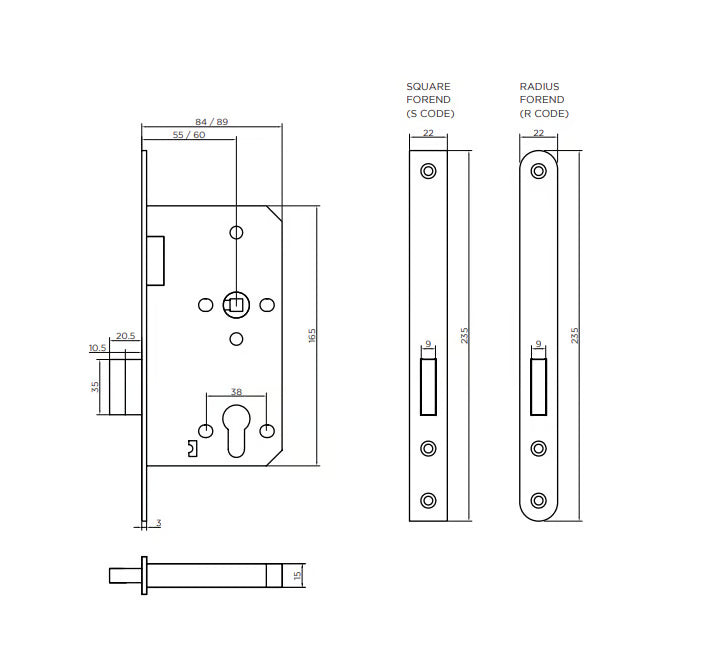

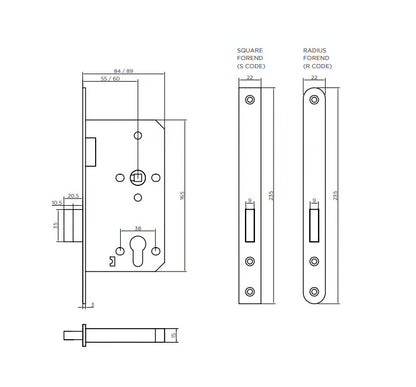

Product Specification
Backset: 55mm or 60mm
Case Height: 165mm
Case Depth: 84mm or 89mm
Centres: 72mm
Fixing Centres: 38mm
Faceplate Height: 235mm
Faceplate Width: 20mm
Fire Rated up to 120 minutes on timber fire doors and 240 minutes on steel fire doors
