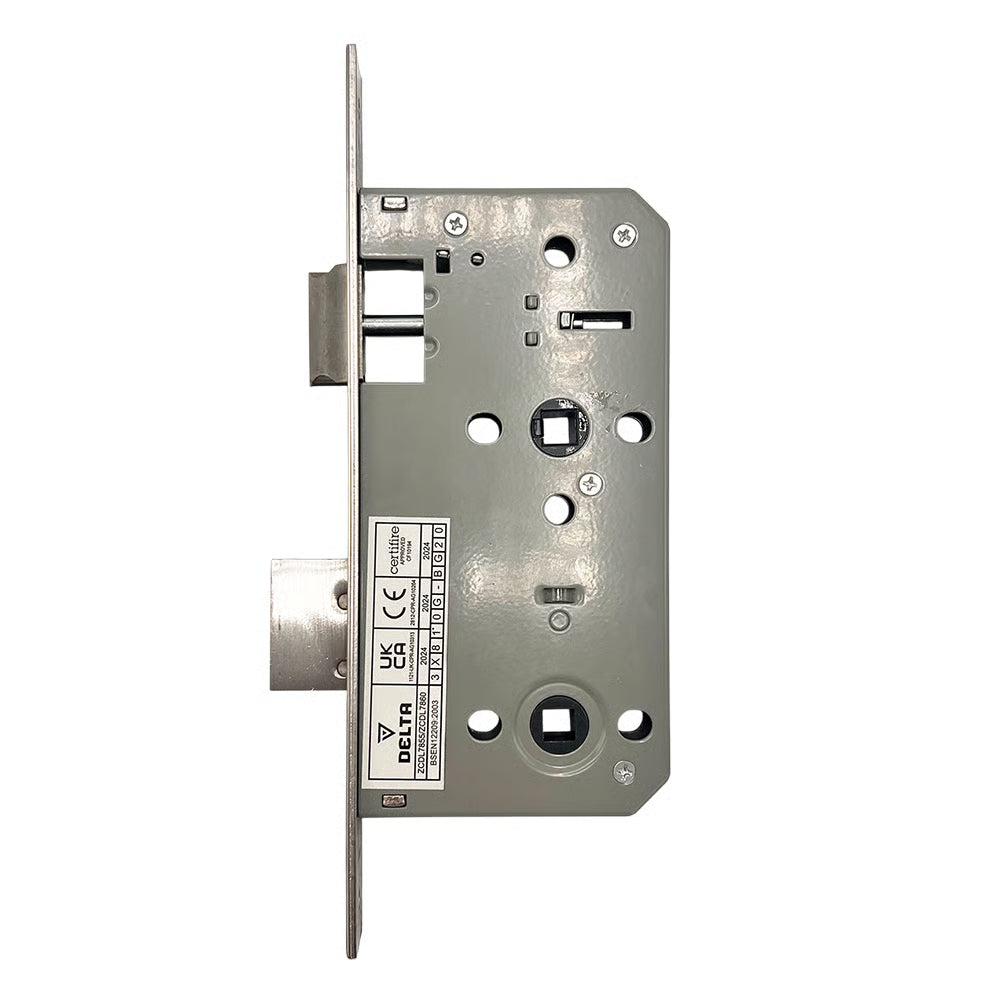

DIN Bathroom Lock Case

The Zoo DIN Bathroom Lock Case is a DIN standard bathroom lock designed for durability and compatibility.

A DIN lock adheres to the DIN standards set by the Deutsches Institut für Normung (DIN), ensuring uniformity in size and fitting. This compatibility allows DIN mortice locks to be used across a variety of doors and hardware.

Product Features

• Available in 55mm or 60mm backset
• Stainless Steel single fixed forend, 22mm width
• Stainless Steel easily reversible latchbolt
• Stainless Steel double throw dead bolt, 20mm
• 8mm bathroom follower with optional supplied 5mm adaptor

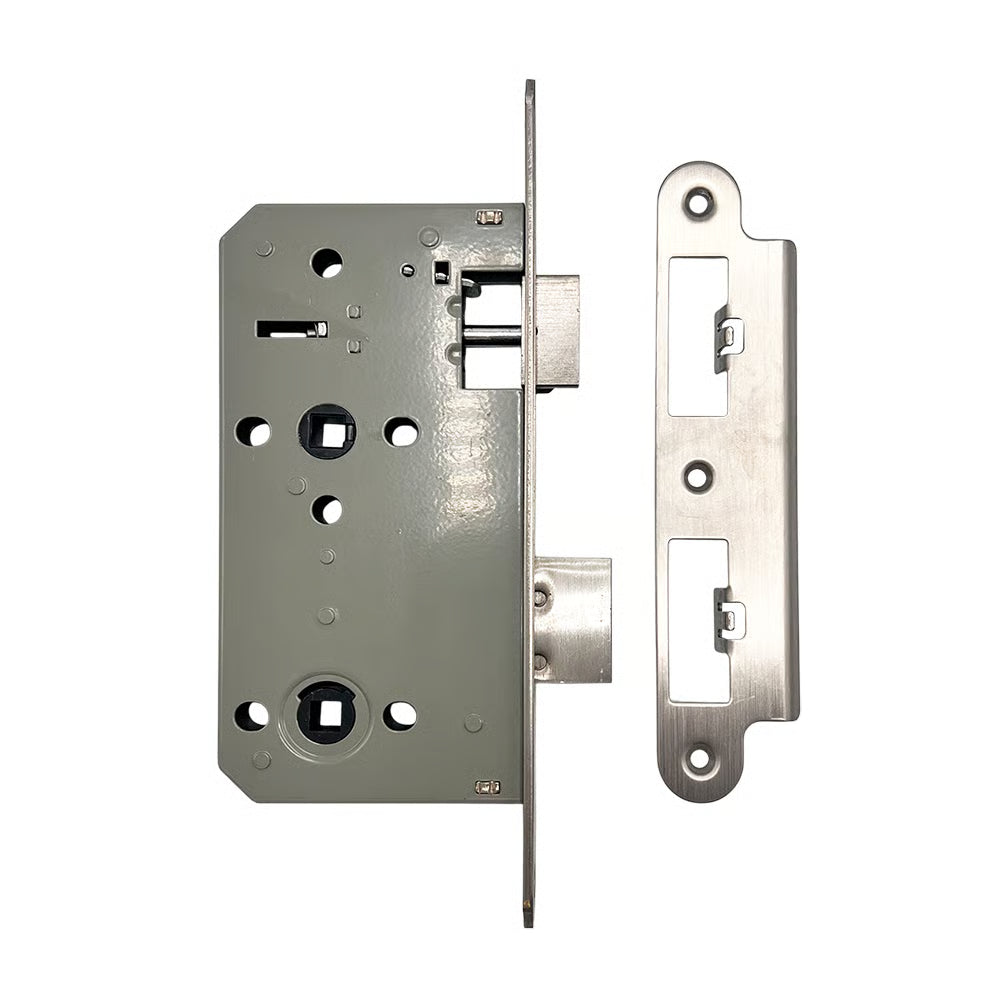

• Anti-rattle strike
• Grip tight follower
• 0.8mm (30 min) and 1mm (60 min) Graphite intumescent kit for fire-rated doors (sold separately)

Certification

• CE marked (Certificate AG10266)
• UKCA marked (Certificate AG10315)
• CERTIFIRE approved (Certificate CF10194)

Latch Reversal Procedure
The latch reversal process is straightforward:

1. Turn the lock case upside down.
2. The small metal 'blocking arm' behind the latch will fall out of the way.
3. Push the latch bolt fully into the aperture behind it.
4. Rotate the latch bolt 180 degrees and release it back to its normal position.

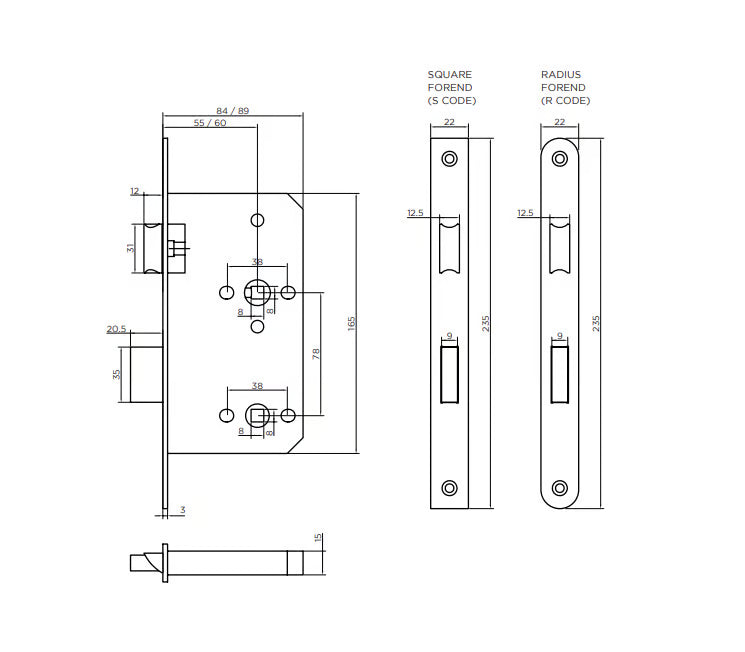

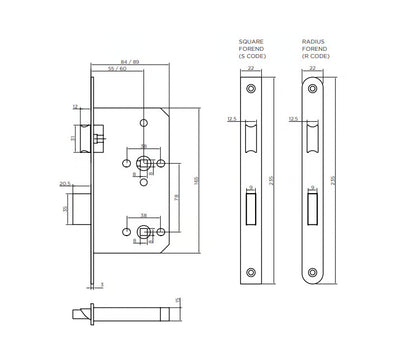

Product Specification

• Backset: 55mm or 60mm
• Case Height: 165mm
• Case Depth: 84mm or 89mm
• Centres: 78mm
• Fixing Centres: 38mm
• Faceplate Height: 235mm
• Faceplate Width: 20mm
• Fire Rated: Up to 120 minutes on timber fire doors and 240 minutes on steel fire doors.
• CE Marked
• UKCA marked
• Certifire approved
