DIN Bathroom Lock Cas

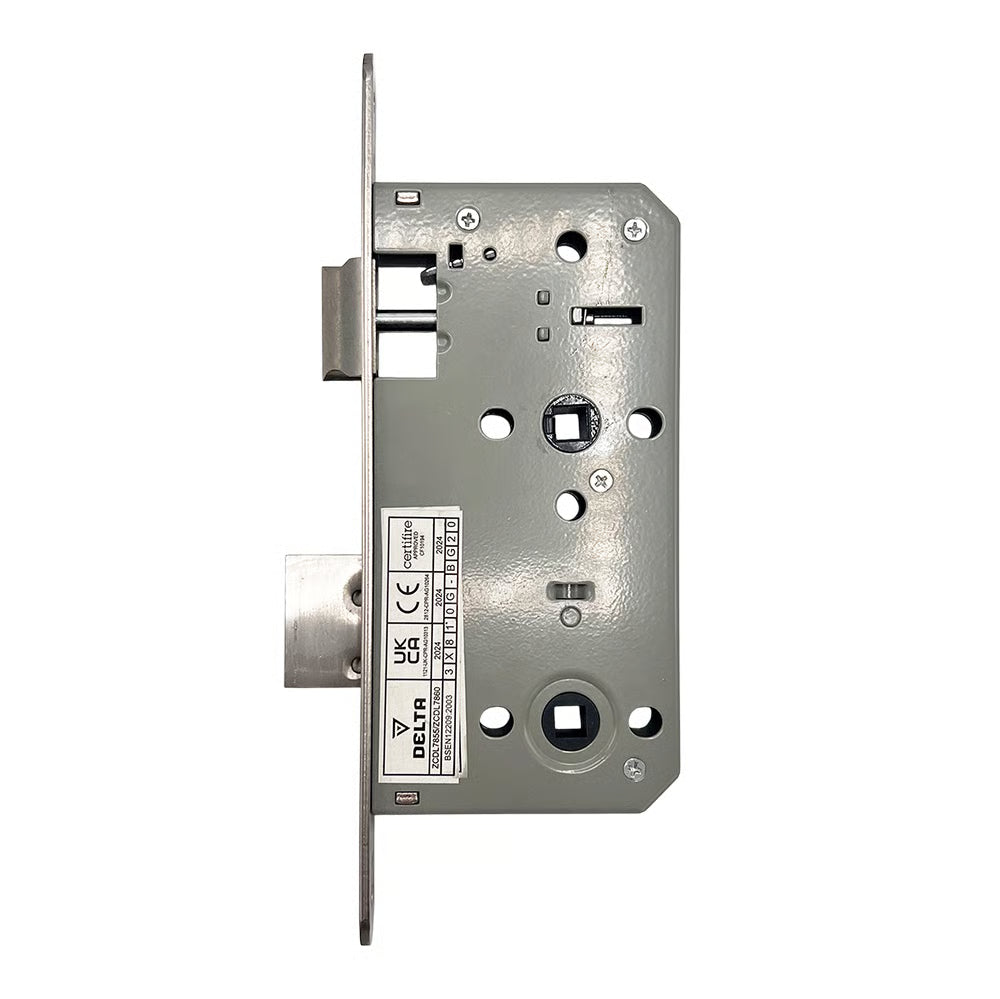

Introducing the Zoo DIN Bathroom Lock Case, a reliable and robust solution designed to meet the DIN standards for bathroom security. This lock is engineered to ensure compatibility across various doors and hardware, thanks to its adherence to the Deutsches Institut für Normung (DIN) specifications.

Product Features

• Backset Options: Available in 55mm or 60mm to suit your door requirements.
• Durable Construction: Made with a stainless steel single fixed forend, measuring 22mm in width, ensuring longevity and resistance to wear.
• Reversible Latchbolt: The stainless steel latchbolt is easily reversible, providing flexibility in installation.
• Double Throw Dead Bolt: Features a 20mm double throw dead bolt for enhanced security.
• Bathroom Follower: Comes with an 8mm bathroom follower and an optional 5mm adaptor for versatility.

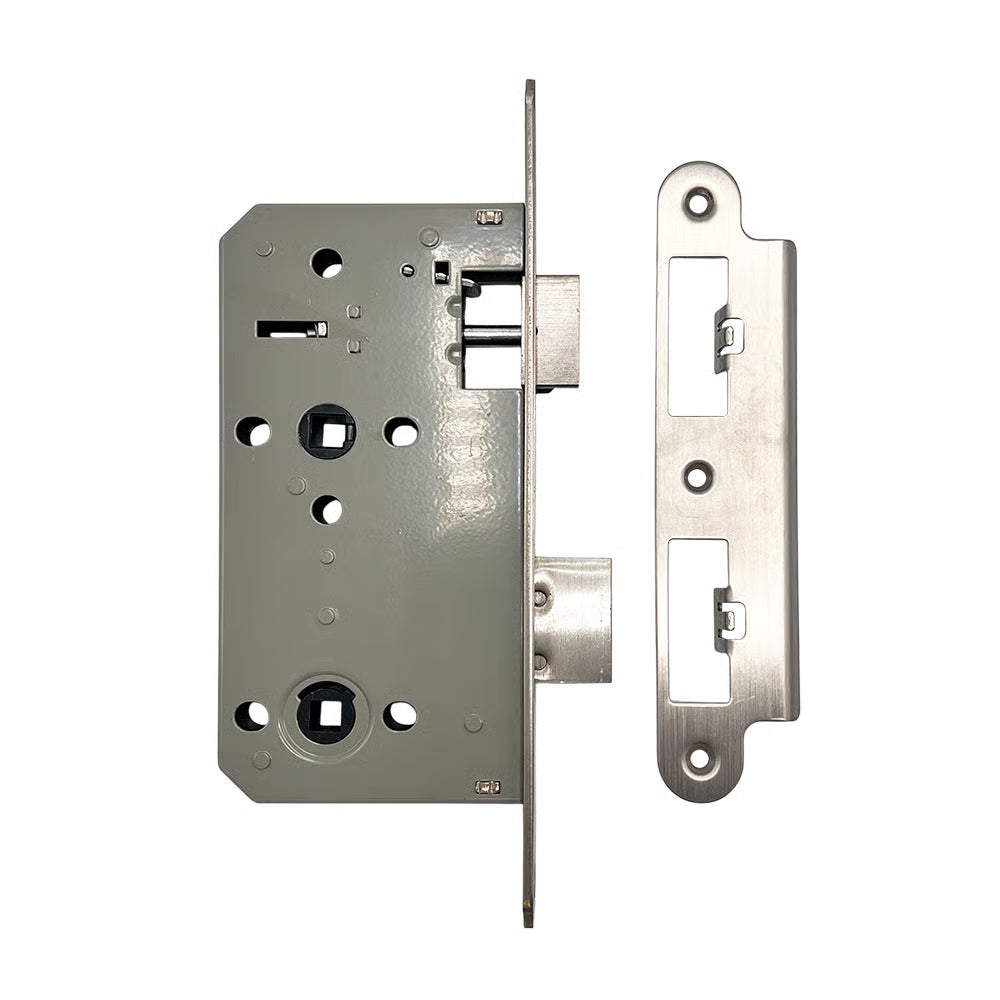

• Anti-Rattle Strike: Designed to minimize noise and ensure a secure fit.
• Grip Tight Follower: Ensures smooth operation and reliability.
• Fire Safety: Includes a 0.8mm (30 min) and 1mm (60 min) Graphite intumescent kit for use on fire-rated doors (sold separately).
• Performance Testing

The Zoo DIN Bathroom Lock has been rigorously tested to meet the requirements of BS EN12209: 2003, ensuring its performance and reliability in various conditions.

Fire Testing

This lock has successfully passed fire testing in accordance with BS EN1634-1, making it suitable for use on timber fire doors for up to 120 minutes and steel fire doors for up to 240 minutes.

Certification

• CE Marked (Certificate AG10266)
• UKCA Marked (Certificate AG10315)
• CERTIFIRE Approved (Certificate CF10194)

Latch Reversal Procedure

The latch reversal process is straightforward. Simply turn the lock case upside down, allowing the small metal 'blocking arm' behind the latch to fall away. This enables you to push the latch bolt fully into the aperture, rotate it 180 degrees, and then return it to its normal position.

Product Specifications

• Backset: 55mm or 60mm
• Case Height: 165mm
• Case Depth: 84mm or 89mm
• Centres: 78mm
• Fixing Centres: 38mm
• Faceplate Height: 235mm
• Faceplate Width: 20mm
• Fire Rated: Up to 120 minutes on timber fire doors and 240 minutes on steel fire doors.
• Certifications: CE Marked, UKCA Marked, Certifire Approved
